Radio, Stereo, and Compact Disc

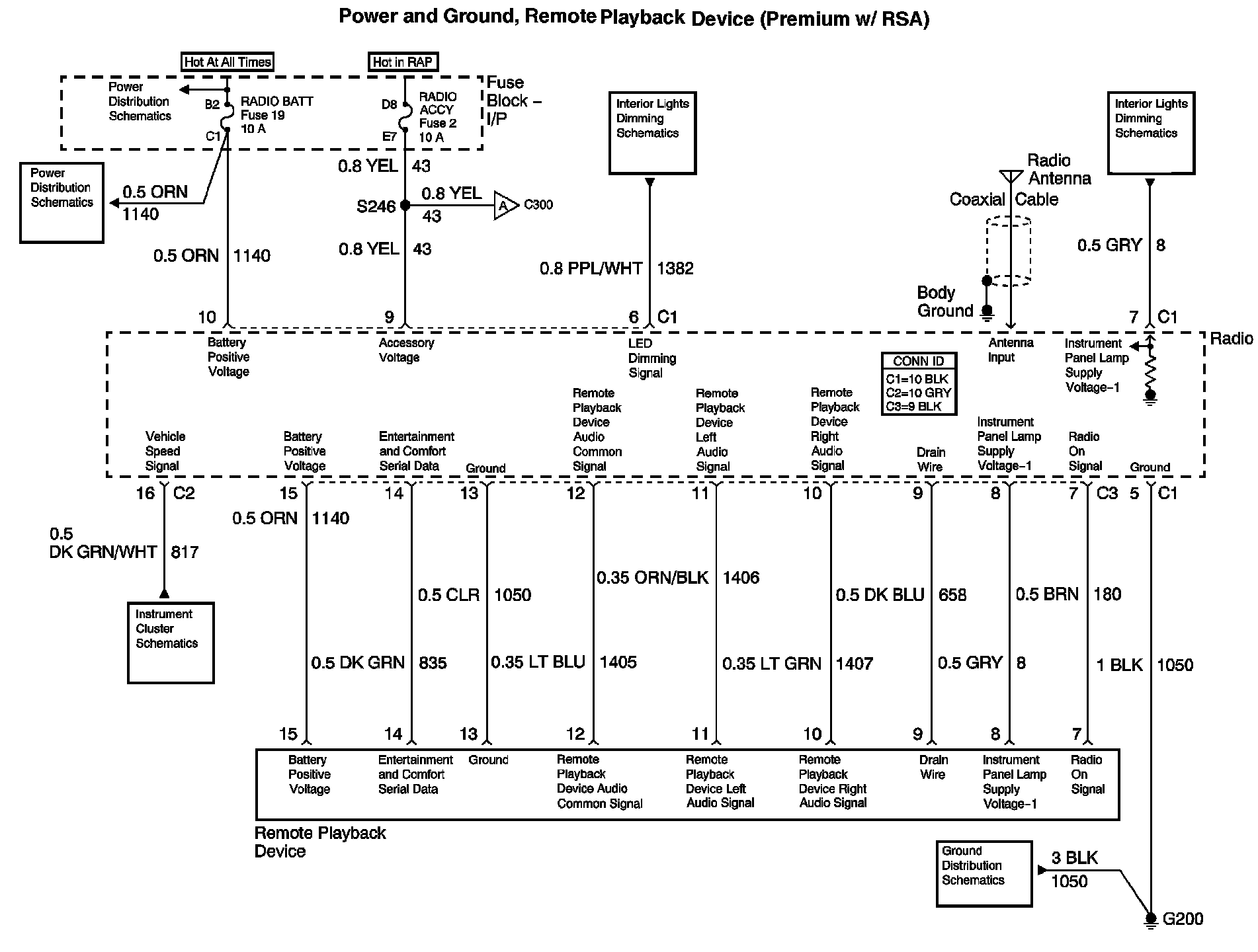

Radio/Audio System Diagram 1:

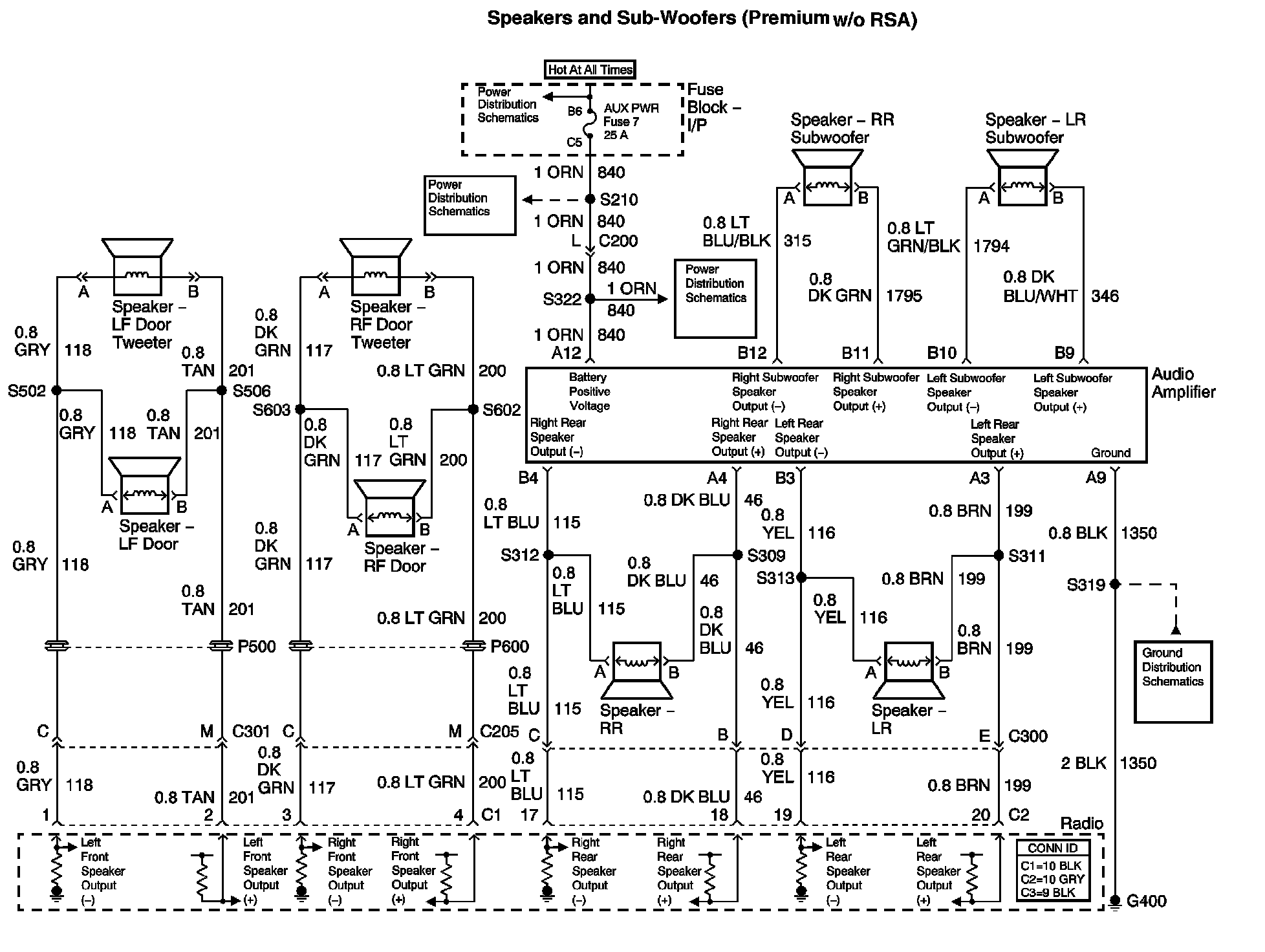

Radio/Audio System Diagram 2:

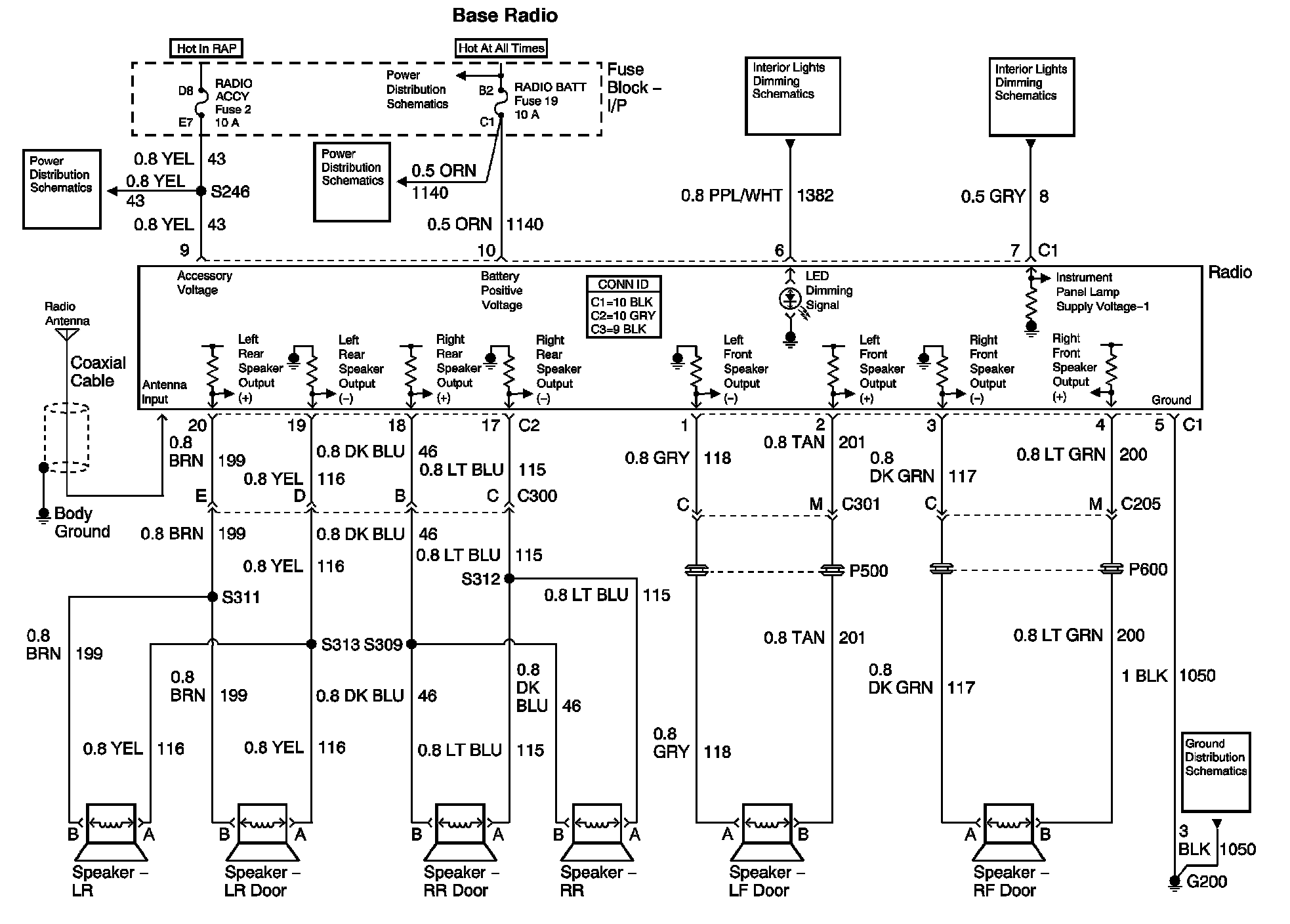

Radio/Audio System Diagram 3:

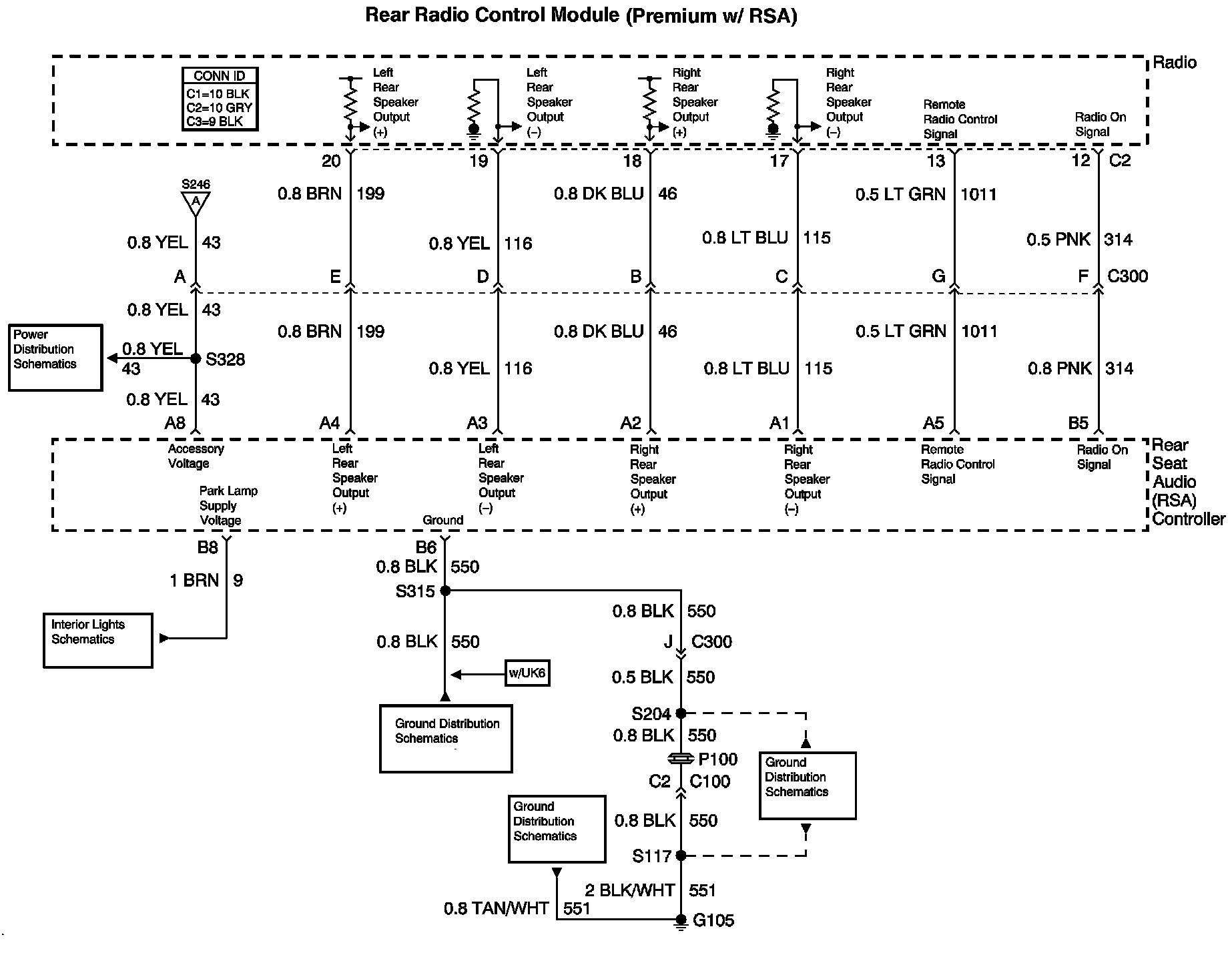

Radio/Audio System Diagram 4:




Radio/Audio System Diagram 5:




Radio/Audio System Diagram 6:
