Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Dash Wiring Views
Dash Wiring Views

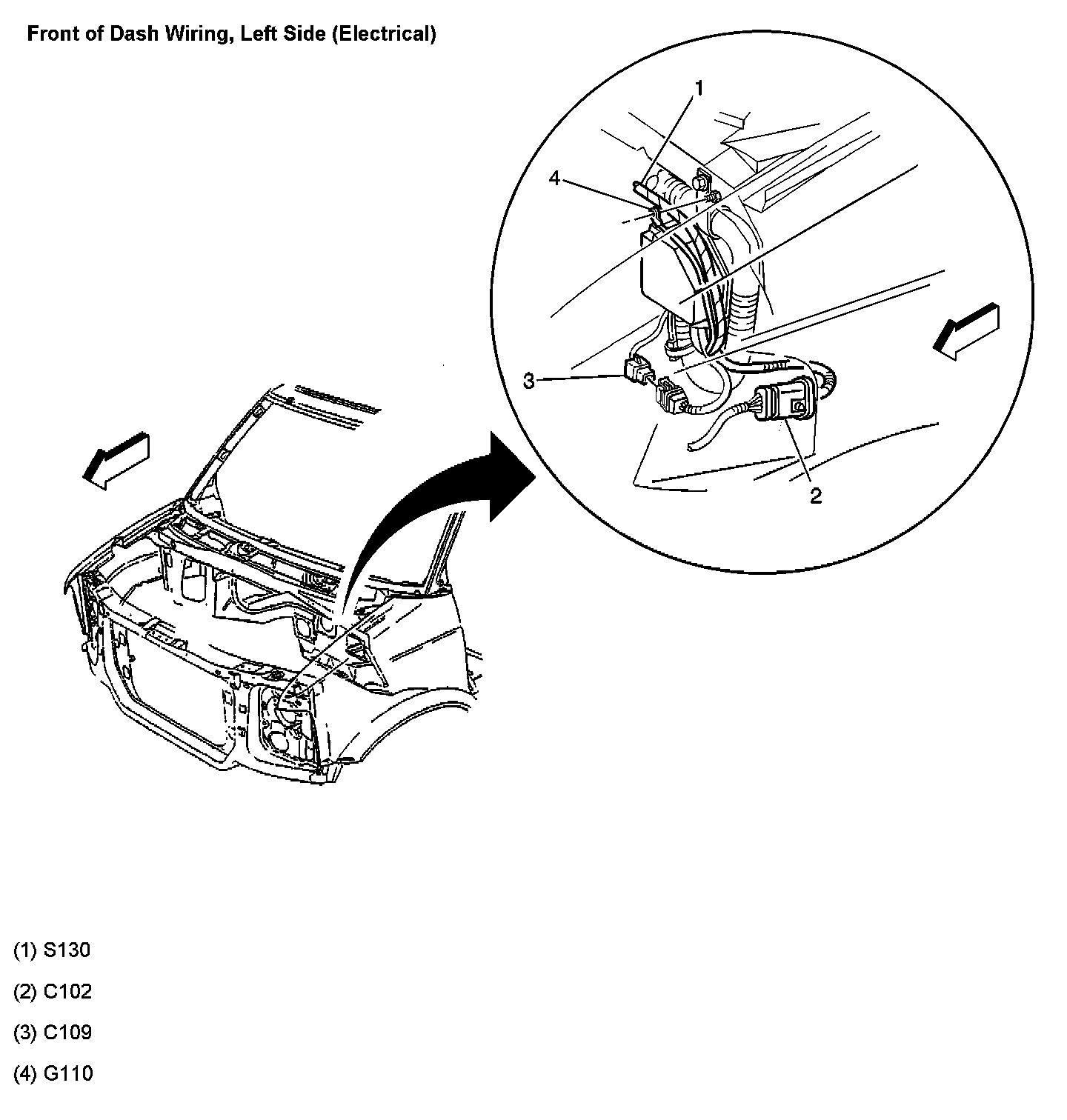

Front Of Dash Wiring, Left Side (Electrical):
