I/P Wiring to Front Passenger Door

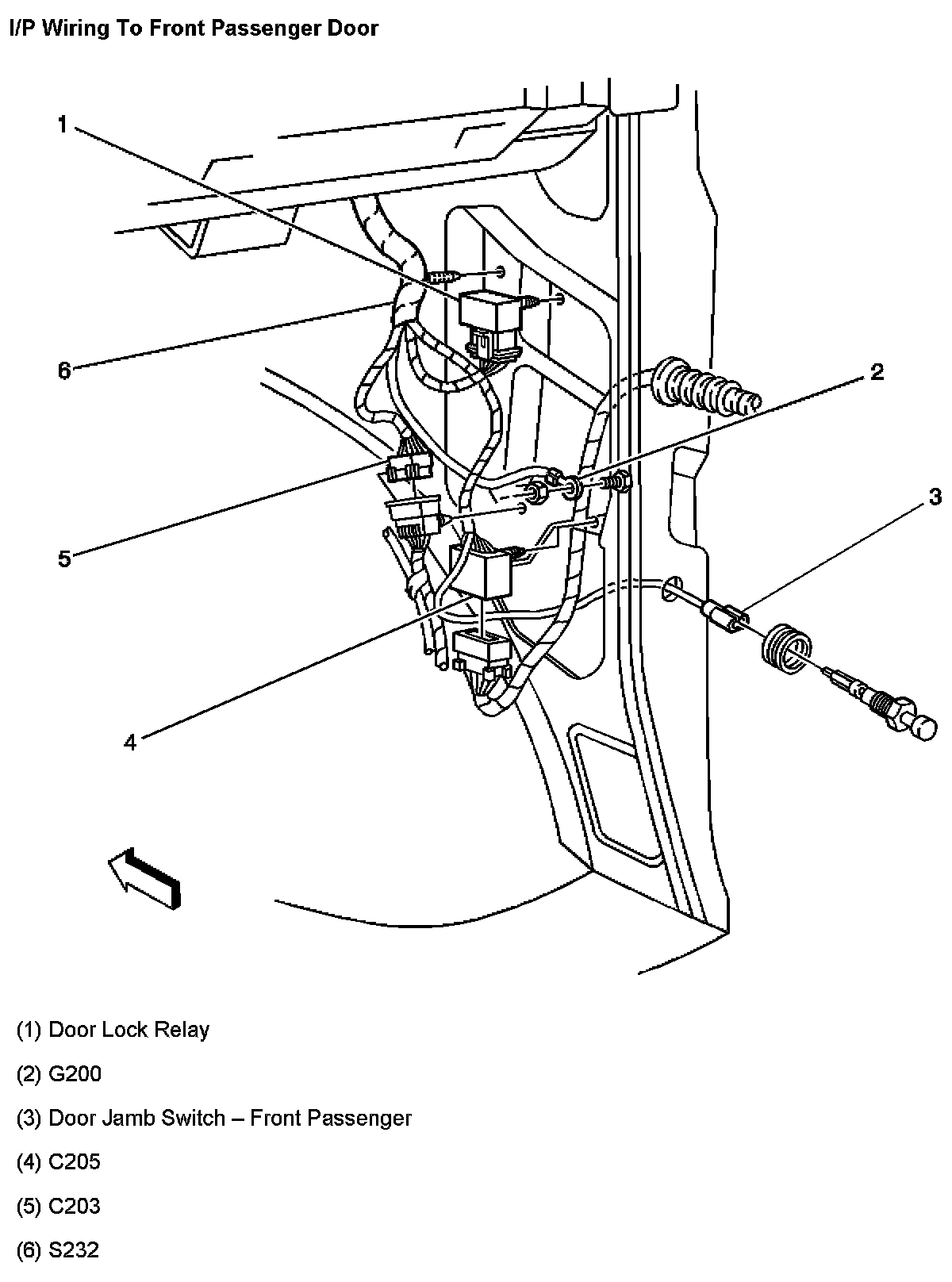

I/P Wiring To Front Passenger Door:

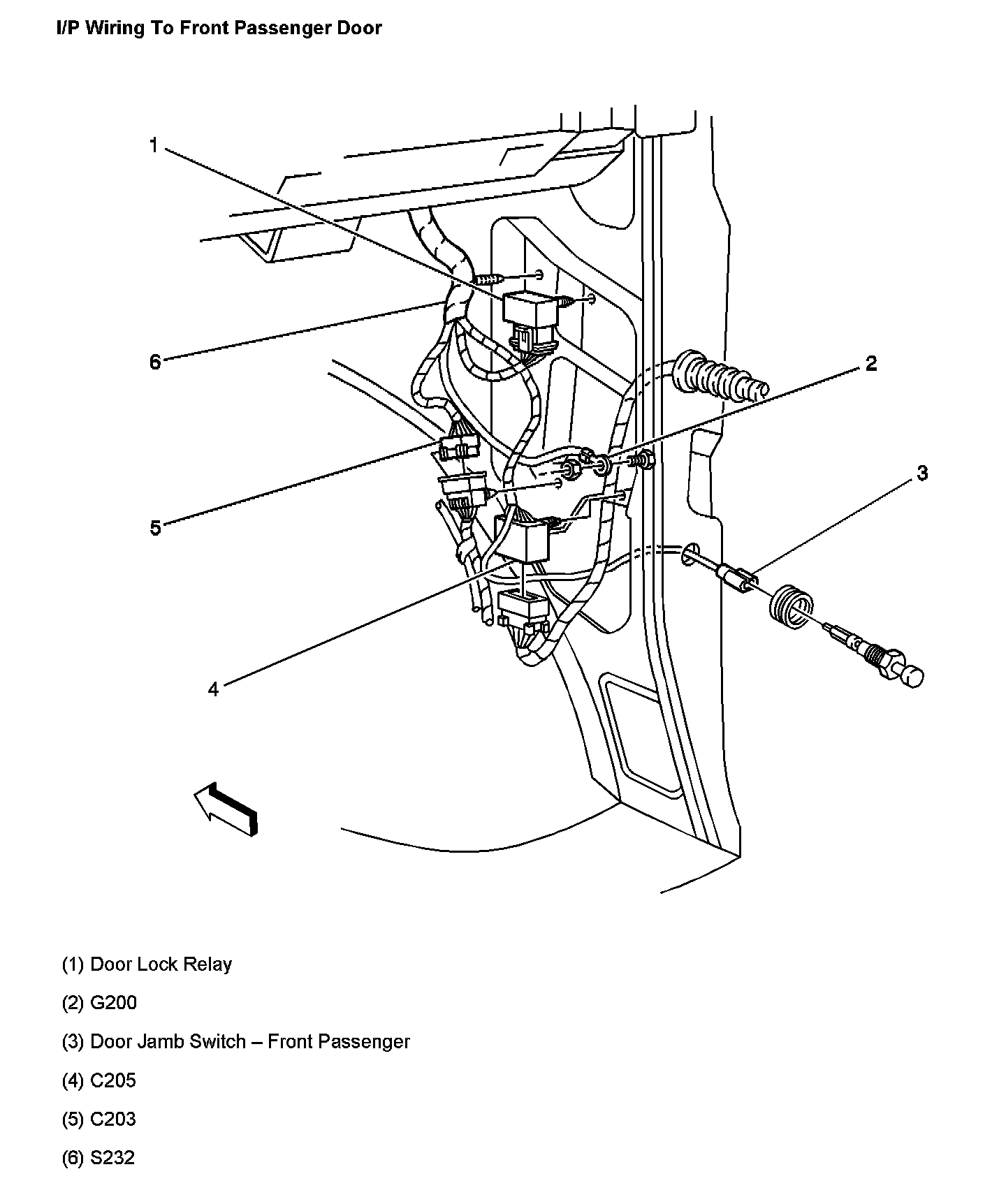

I/P Wiring To Front Passenger Door:
