License Plate Lamp: Service and Repair

LICENSE LAMP REPLACEMENT

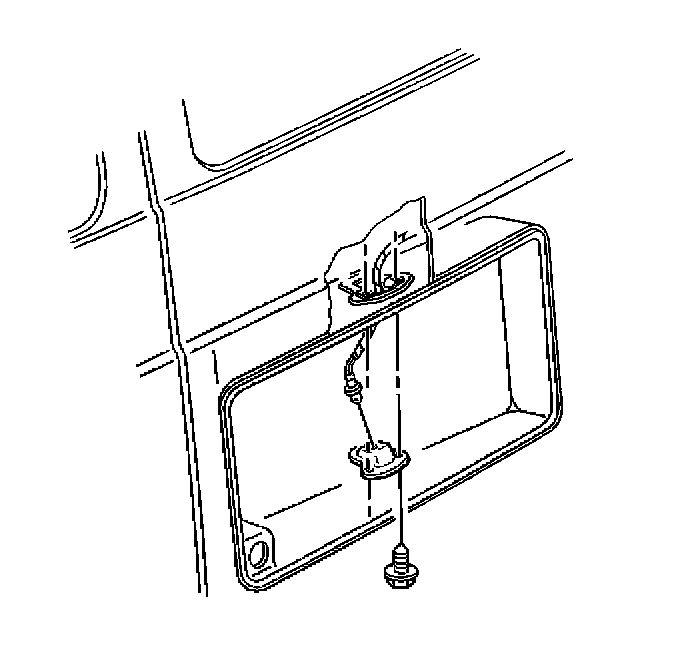

REMOVAL PROCEDURE




1. Turn OFF the headlamp switch.
2. Remove the screws from the license lamp.
3. Remove the bulb.

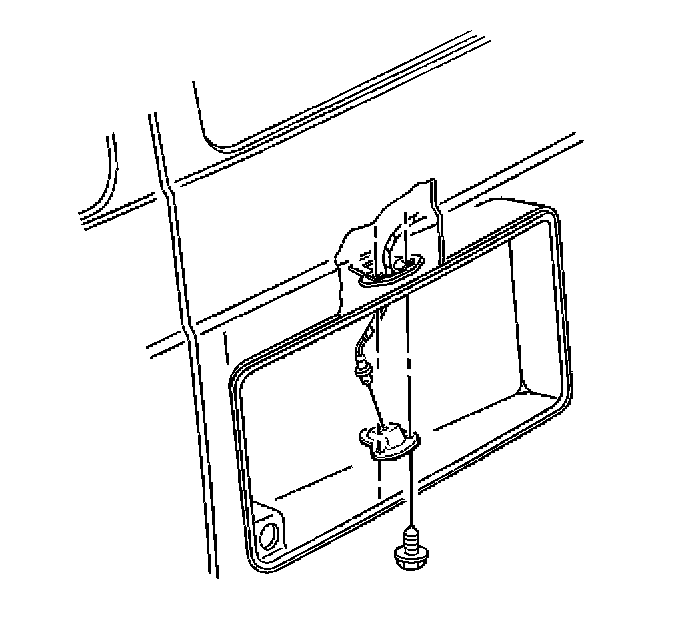

INSTALLATION PROCEDURE




1. Install the bulb.
2. Install the license lamp.
3. Install the license lamp screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the license lamp screws to 2 N.m (18 lb in).
