Ambient Temperature Sensor / Switch HVAC
>>

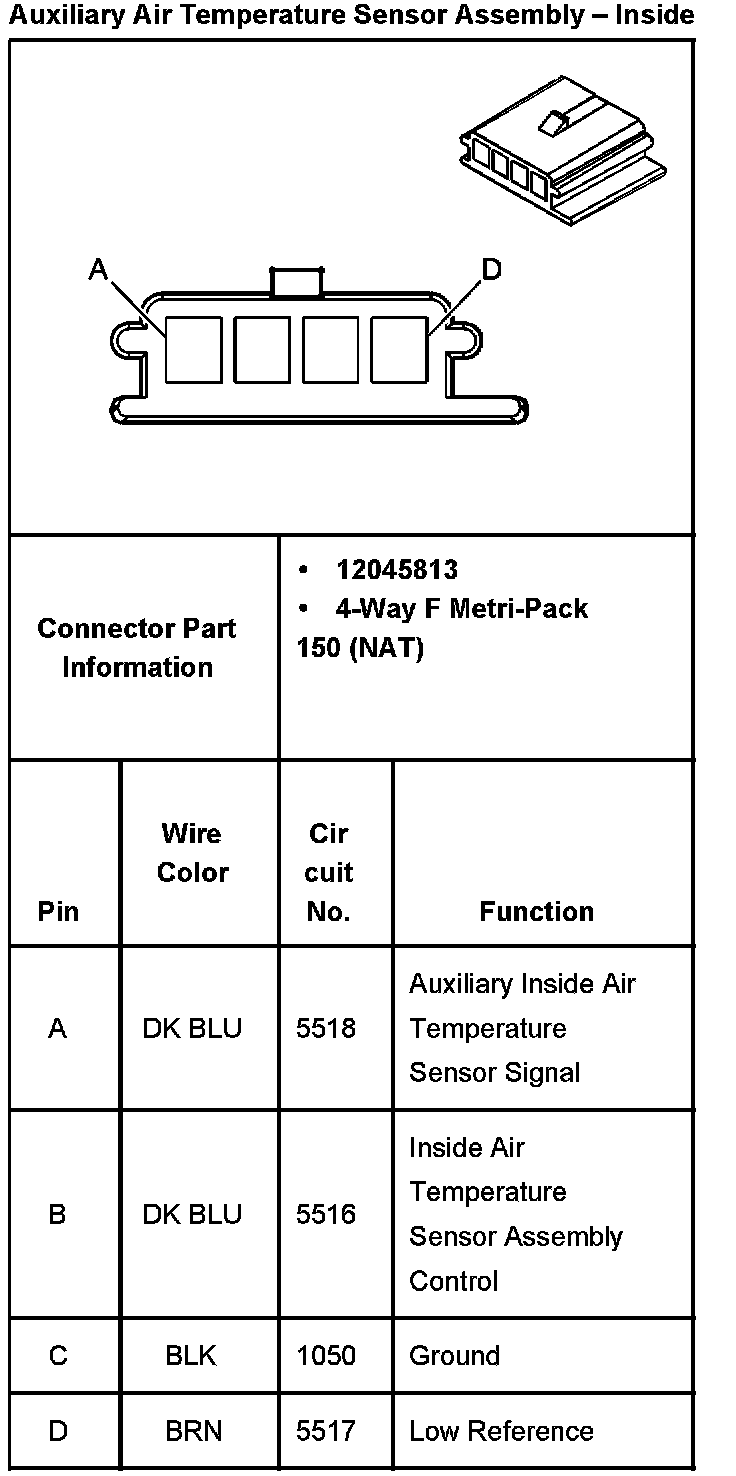

Auxiliary Air Temperature Sensor Assembly - Inside
Auxiliary Air Temperature Sensor Assembly - Inside
Auxiliary Air Temperature Sensor Assembly - Inside:
