Compressor Replacement

AIR CONDITIONING COMPRESSOR REPLACEMENT

Tools Required: J 39400-A Halogen Leak Detector

Removal Procedure






1. Recover the refrigerant.
2. Install a ratchet into the belt tensioner adapter opening.
3. Rotate the belt tensioner counterclockwise in order to relieve the tension on the belt.
4. Remove the belt from the A/C compressor.
5. Slowly release the tension on the belt tensioner.

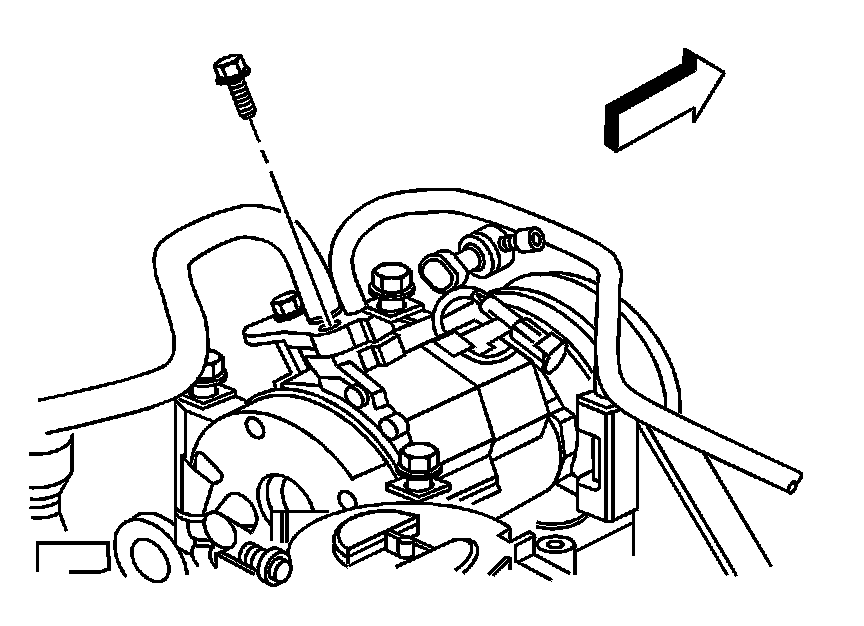

6. Remove the discharge and suction hose bolt from the A/C compressor.
7. Remove the discharge and suction hose from the A/C compressor.
8. Discard the sealing washers. Cap all of the openings.
9. Disconnect the electrical connections.

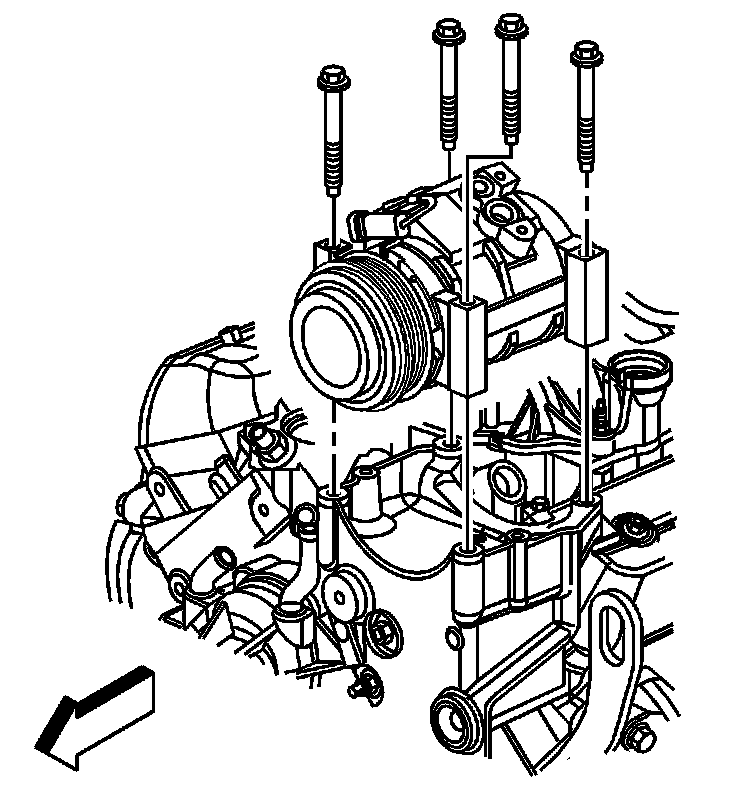

10. Remove the A/C compressor mounting bolts.
11. If replacing the A/C compressor, refer to Air Conditioning Compressor Oil Balancing. Compressor Oil Balancing

INSTALLATION PROCEDURE






1. Remove the caps or tape from the hose and line ends.
2. Install the A/C compressor.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

3. Install the A/C compressor mounting bolts.

Tighten
Bolts to 50 Nm (37 lb ft).

4. Connect the electrical connection.






5. Install the A/C discharge and suction hose to the compressor using new sealing washers.
6. Install the A/C discharge and suction hose bolt to the A/C compressor.

Tighten
Bolts to 16 Nm (12 lb ft).

7. Install the drive belt.
8. Evacuate and recharge the A/C system.
9. Leak test the fittings of the component using the J 39400-A.
