C151 ATC Harness to I/P Harness (W/NP8 or NR4)
C151 ATC Harness to I/P Harness (W/NP8 or NR4)

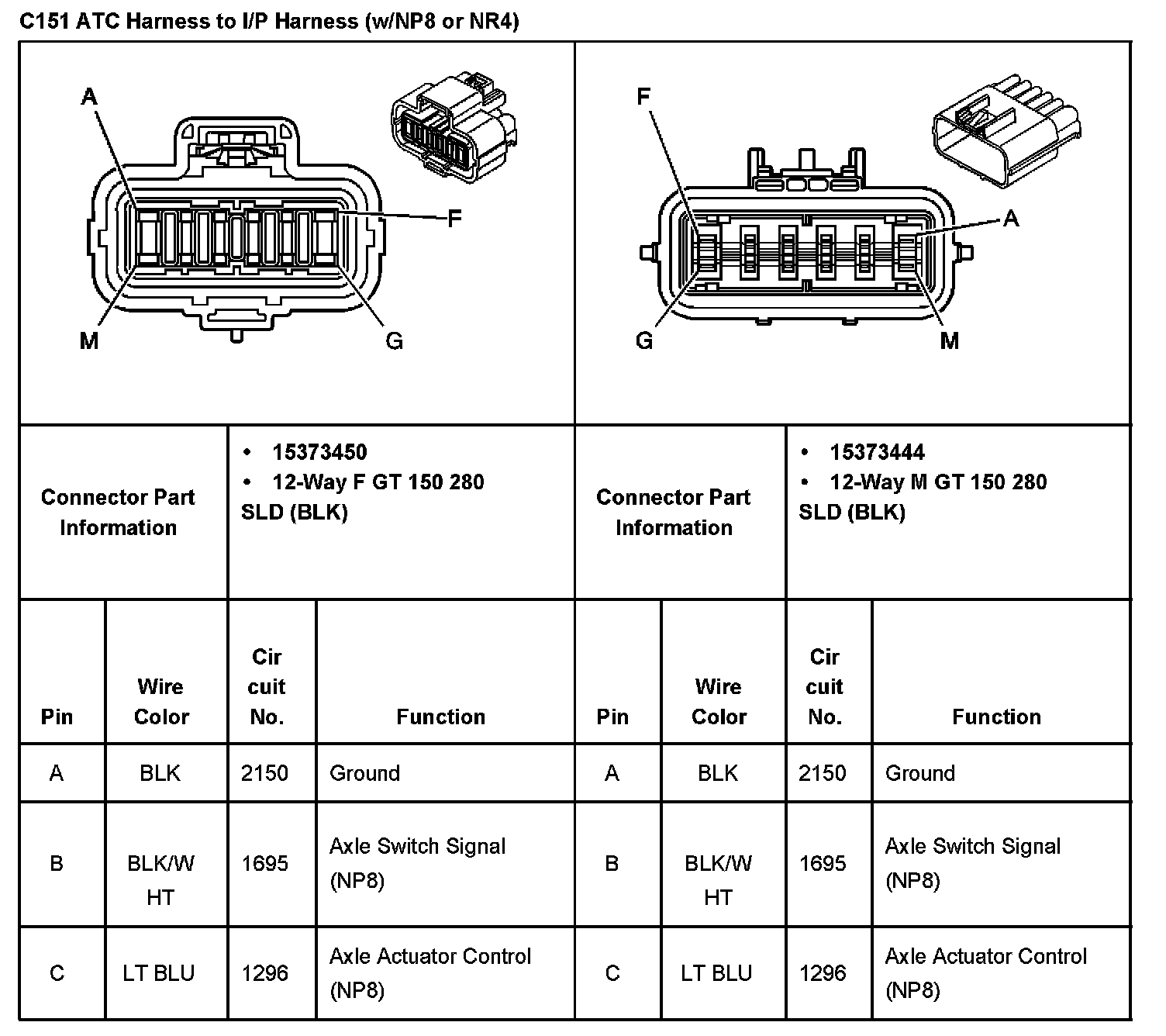

C151 ATC Harness To I/P Harness (w/NP8 Or NR4) Part 1:

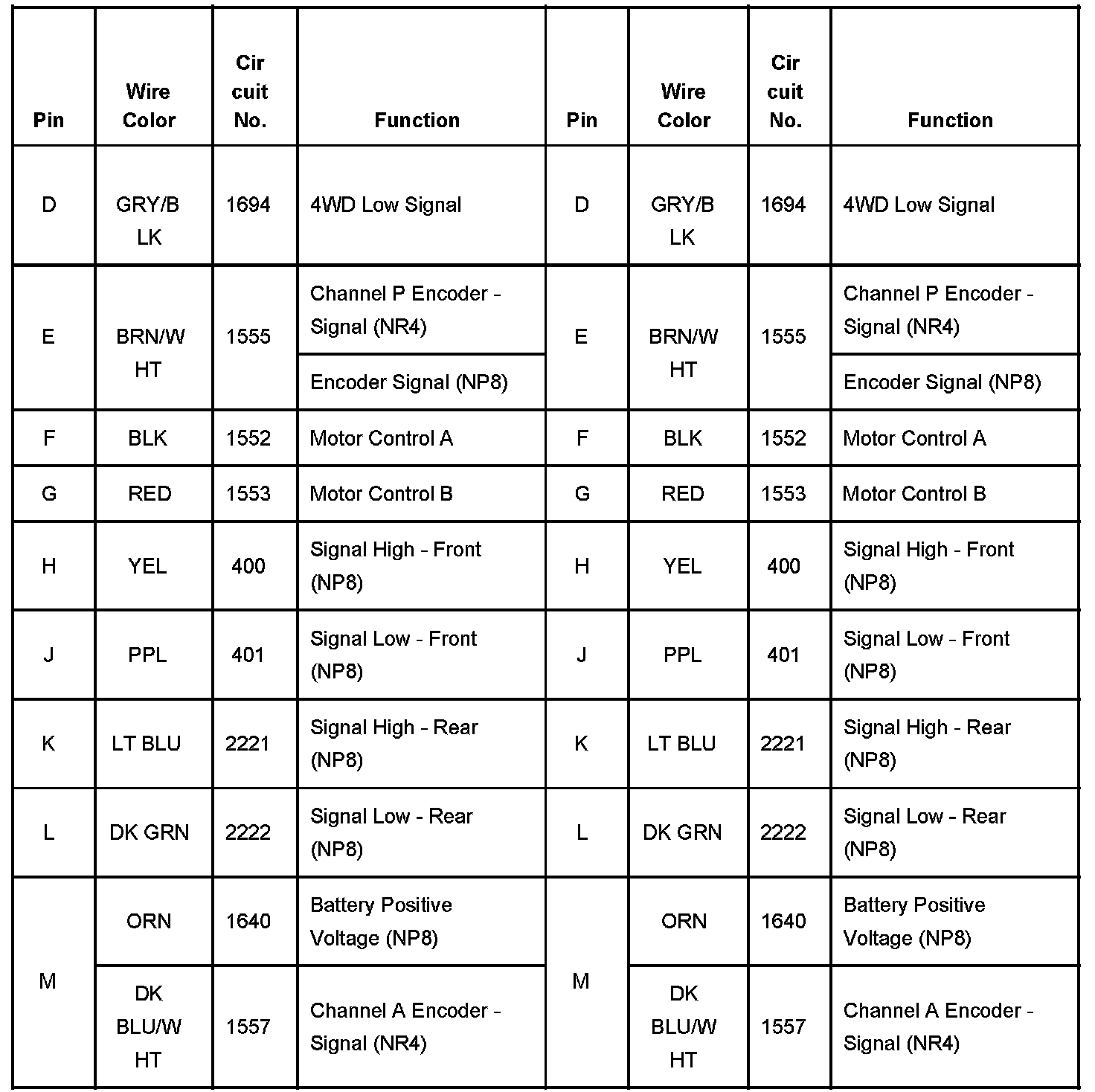

C151 ATC Harness To I/P Harness (w/NP8 Or NR4) Part 2:
