Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2003
>>
C 2500 Suburban 2WD V8-6.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C198
>>

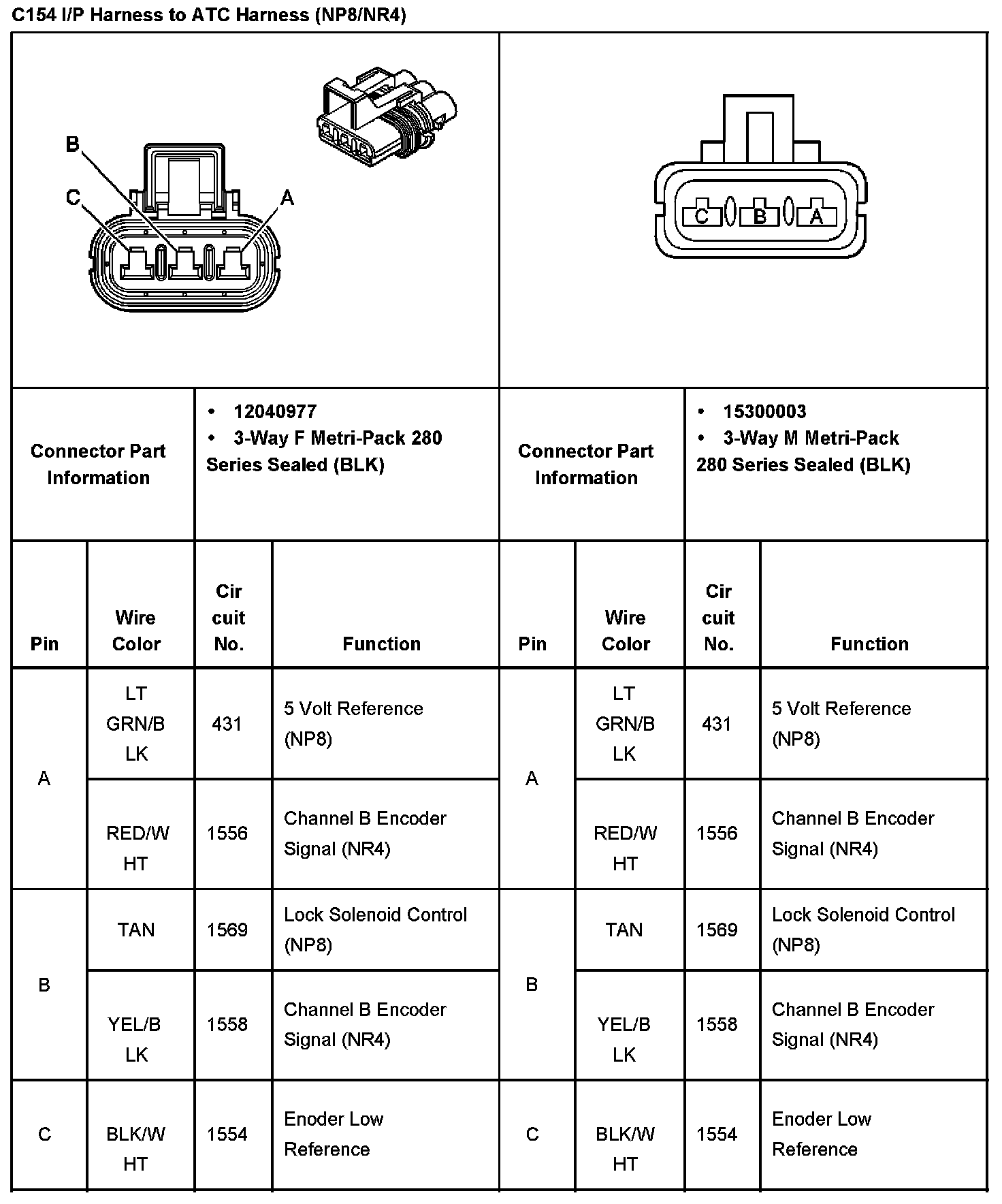

C154 I/P Harness to ATC Harness (NP8/NR4)
C154 I/P Harness to ATC Harness (NP8/NR4)
C154 I/P Harness To ATC Harness (NP8/NR4):
