Suspension Control ( Automatic - Electronic )
>>
Ride Height Sensor, Suspension Control
Ride Height Sensor, Suspension Control

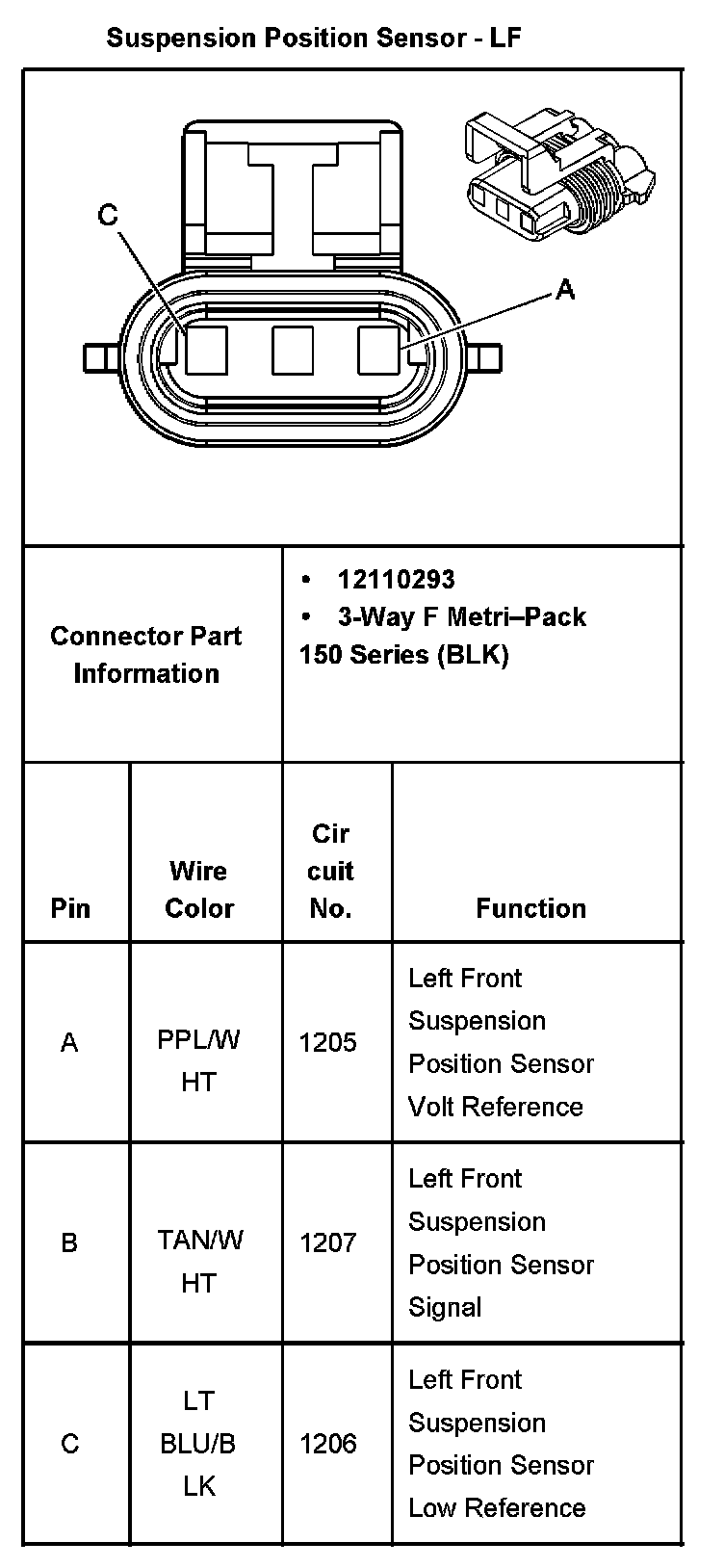

Suspension Position Sensor - LF:

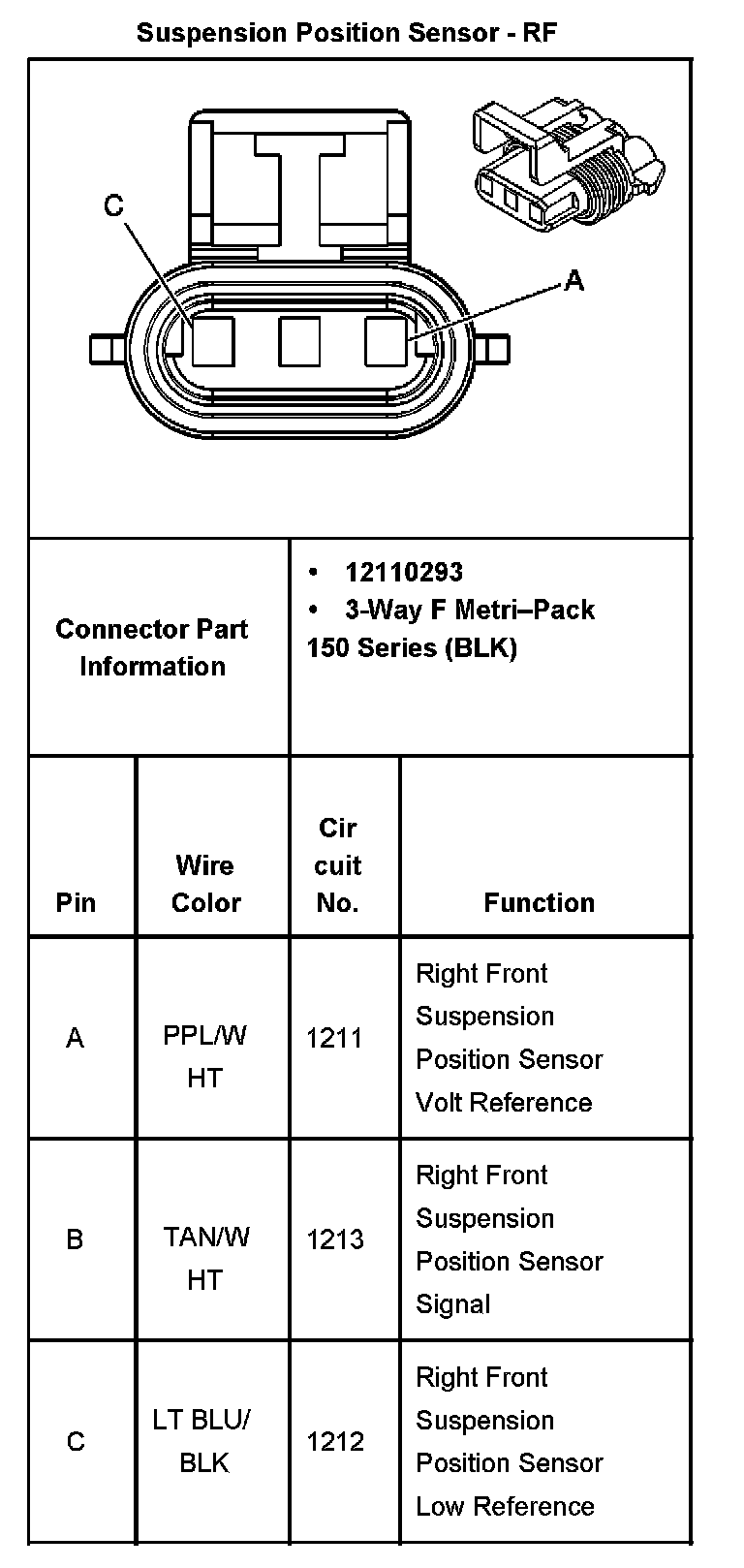

Suspension Position Sensor - RF:
Suspension Position Sensor - LR:
Suspension Position Sensor - RR:
