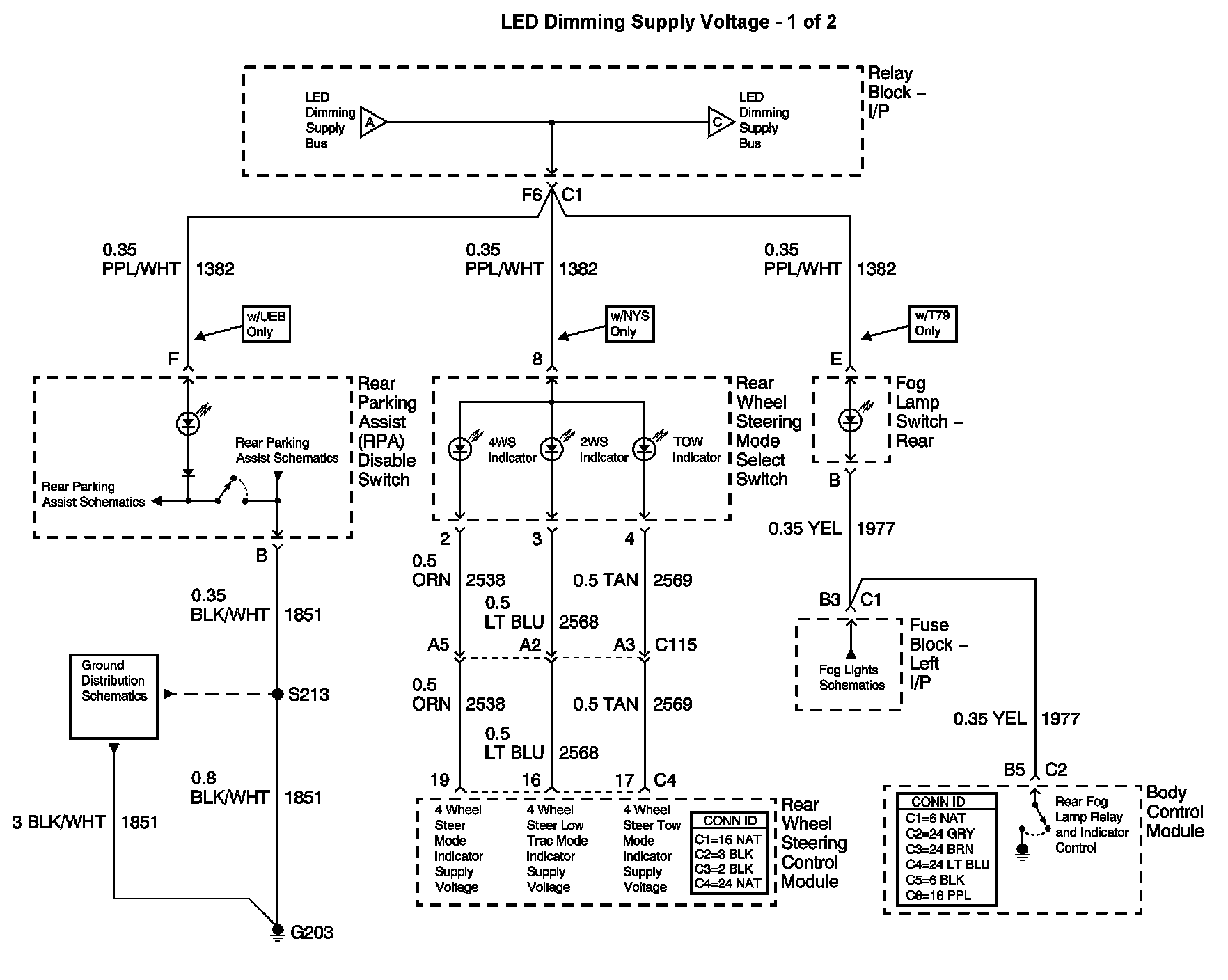

Interior Lights Dimming Diagram 2

Interior Lights Dimming Diagram 2:






Next Diagram Interior Lights Dimming Diagram 3


Previous Diagram Interior Lights Dimming Diagram 1
