138. Starter Installation

Starter Motor Installation

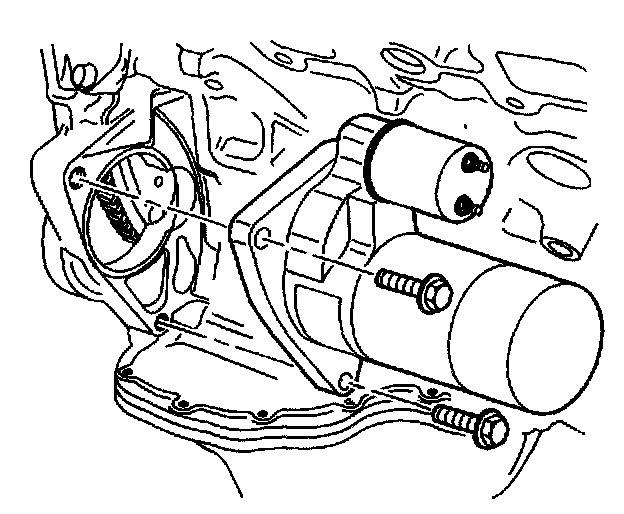

1. Install the starter motor to the flywheel housing.

Notice: Refer to Fastener Notice in Service and Precautions.
Fastener Notice


2. Install the starter motor bolts.
Tighten the starter bolts to 78 Nm (58 ft. lbs.).
