Cruise Control - Inoperative/Malfunctioning

CRUISE CONTROL INOPERATIVE/MALFUNCTIONING

DIAGNOSTIC AIDS
To avoid a misdiagnosis, inspect for the following:
- Proper operation of the stop lamps.
- Proper operation of the clutch system, if equipped with a manual transmission.
- The throttle linkage is not binding.

EMI on the speed sensor signal circuit may cause erratic cruise control operation.

CONDITIONS FOR ENABLING CRUISE CONTROL
- The vehicle speed is greater than 40 km/h (25 mph).
- The vehicle is not in PARK, REVERSE, NEUTRAL, or 1st gear.
- The system voltage is between 12 volts and 16 volts.

TEST

Steps 1-5:

Steps 6-8:

Steps 9-13:

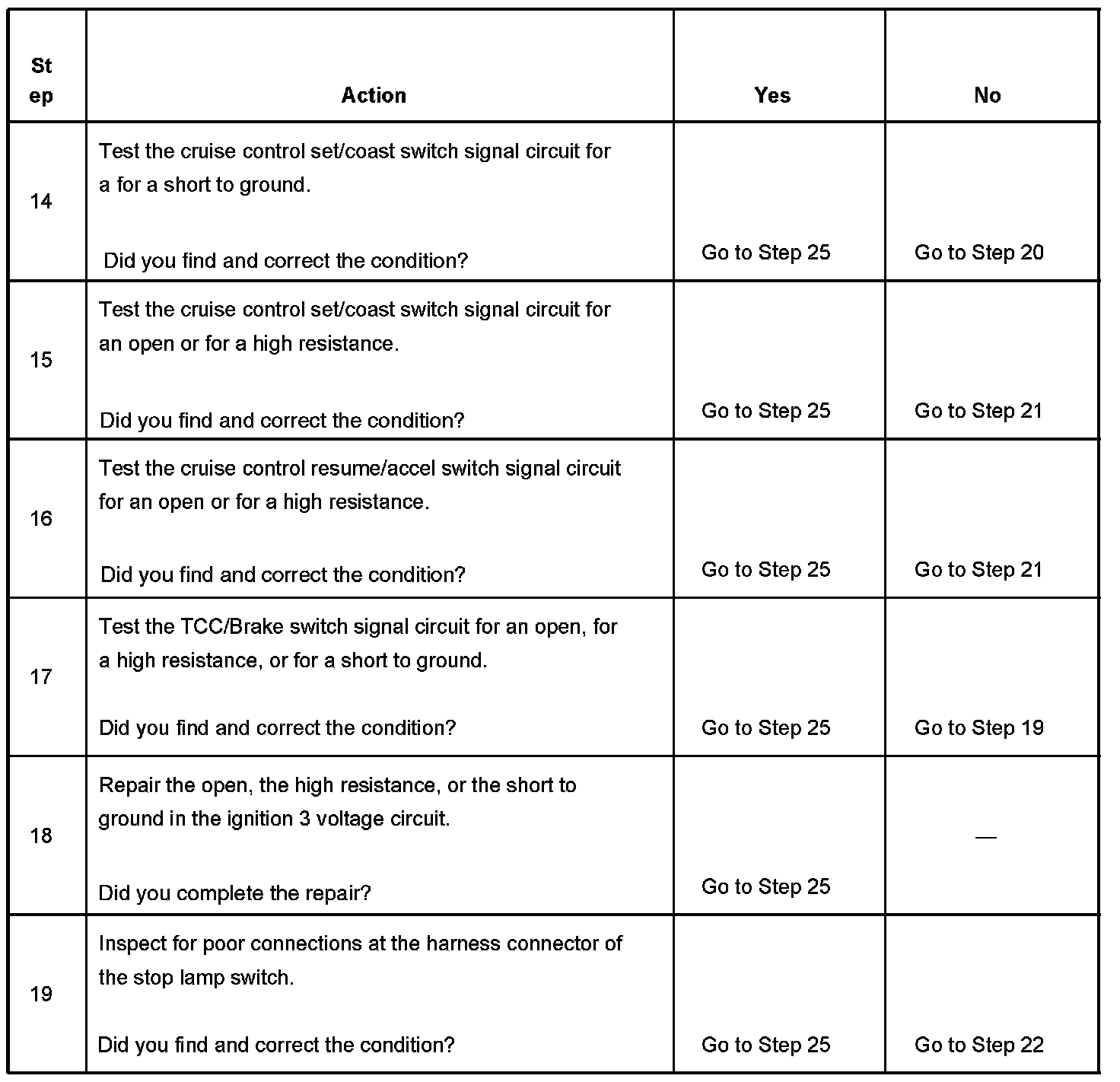

Steps 14-19:

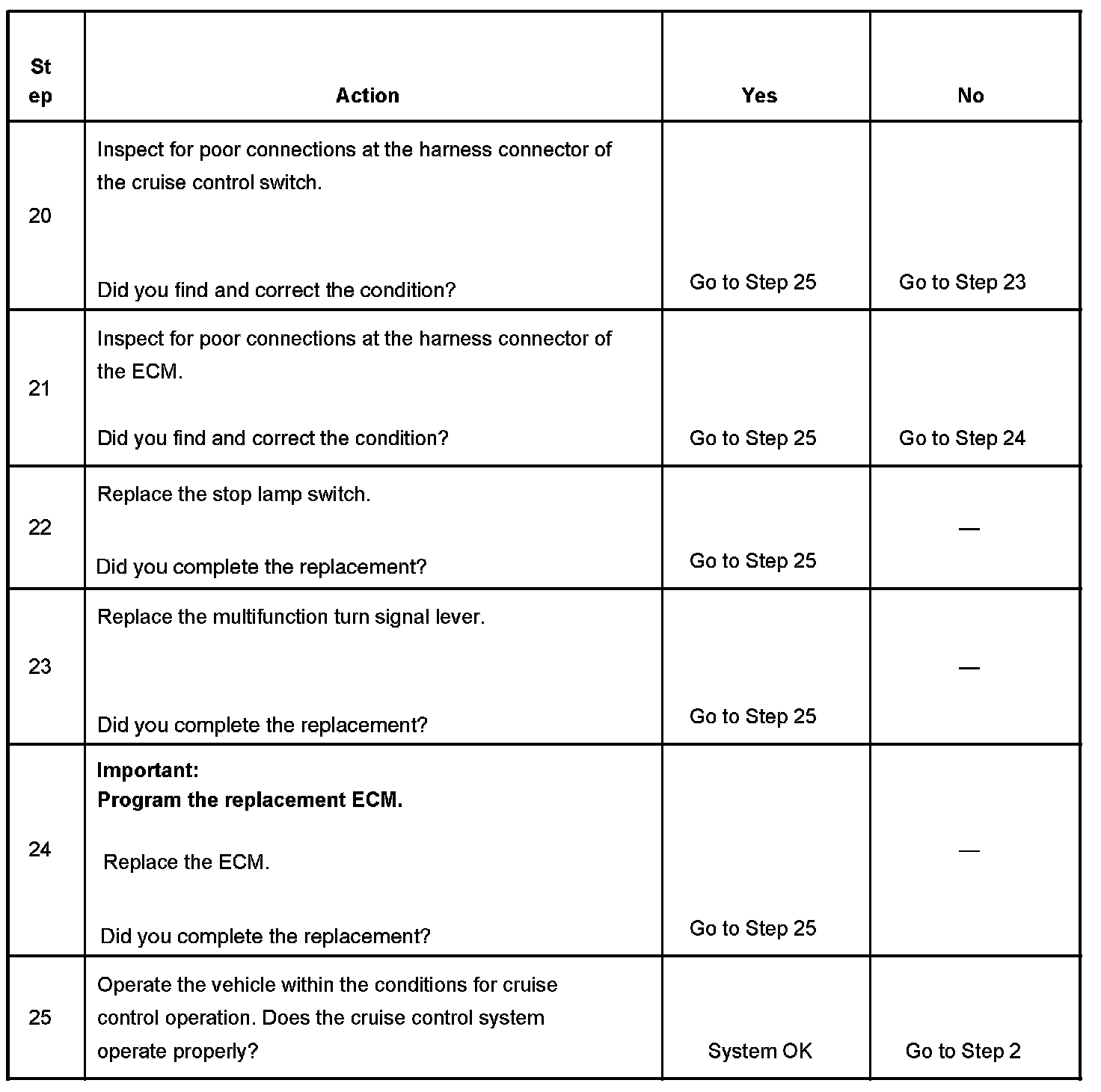

Steps 20-25:
