Home >> Chevy Truck >> 2003 >> C 3500 Truck 2WD V8-8.1L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Radio/Audio System Diagrams >> With RPO UQ7, without RPO Y91 >> RSA, Amplifier Inputs, with RPO UQ7, without RPO Y91, with RPO UK6

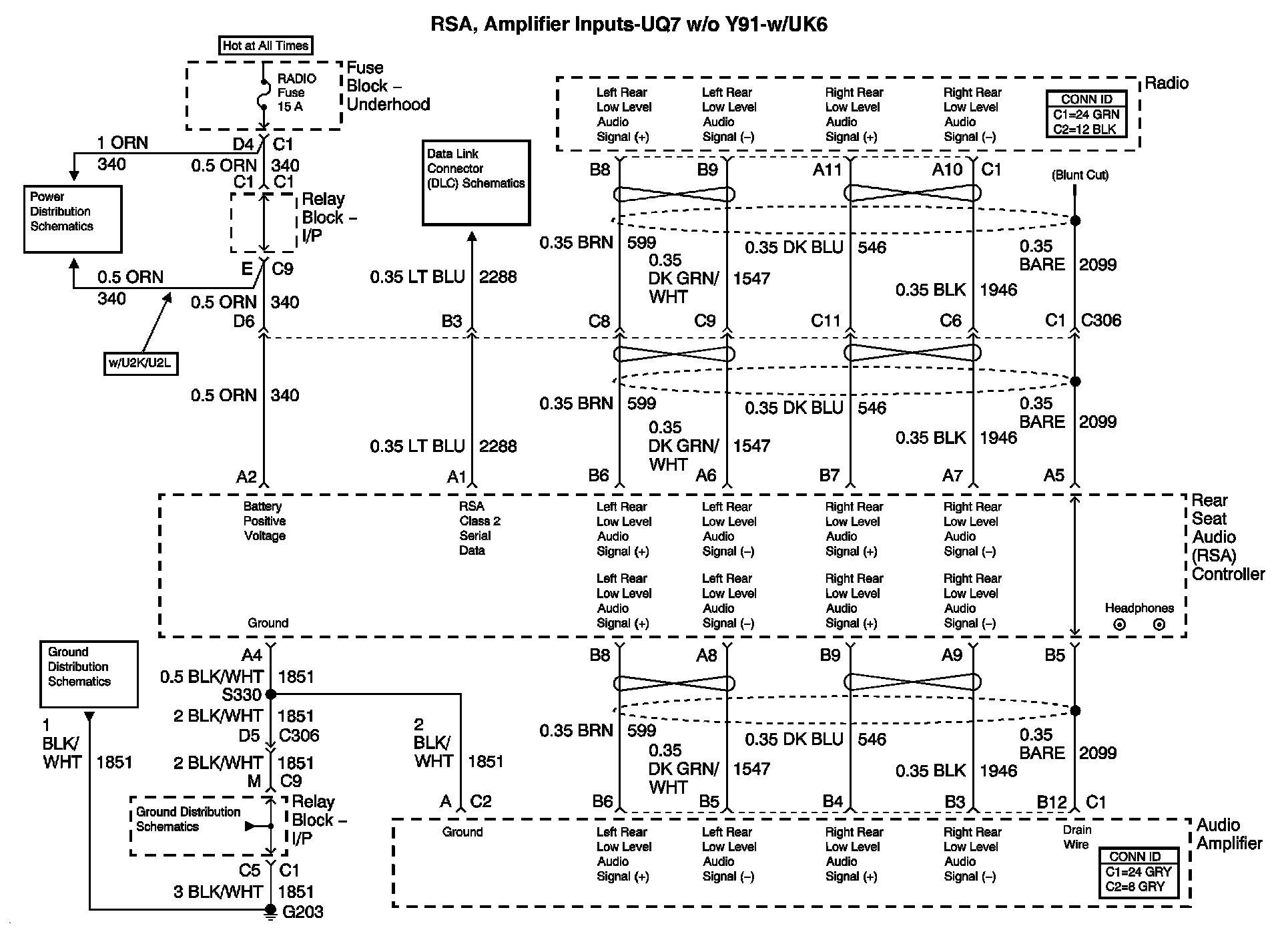

RSA, Amplifier Inputs, with RPO UQ7, without RPO Y91, with RPO UK6

Radio/Audio System Diagram 7:
