C322 Seat Motor Jumper Harness to Seat Jumper Harness (AN3)
C322 Seat Motor Jumper Harness to Seat Jumper Harness (AN3)

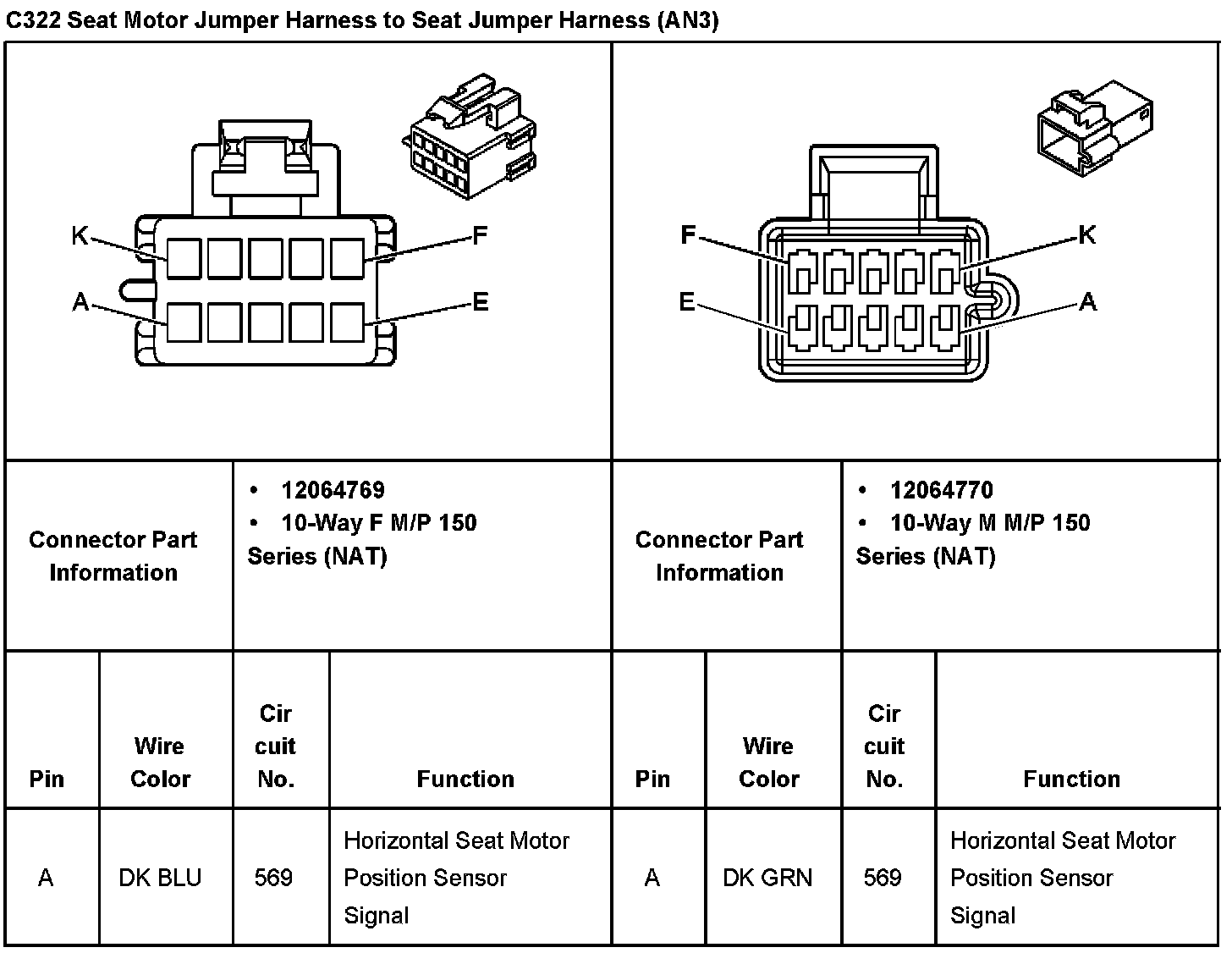

C322 Seat Motor Jumper Harness To Seat Jumper Harness (AN3) Part 1:
C322 Seat Motor Jumper Harness To Seat Jumper Harness (AN3) Part 2:
