Headliner Replacement - Rear

Headliner Replacement - Rear

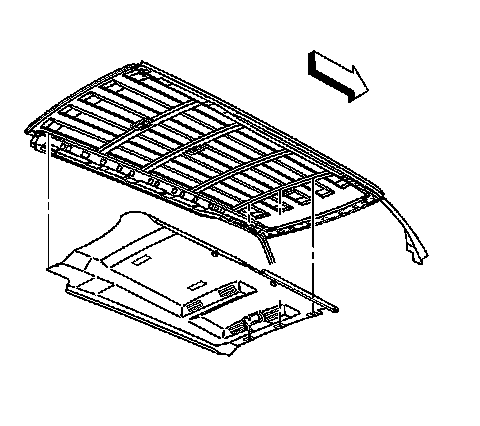

Removal Procedure

Caution: Do not attempt to repair or alter the head impact energy-absorbing material glued to the headliner or to the garnish trims. If the material is damaged, replace the headliner and/or the garnish trim. Failure to do so could result in personal injury.






1. Remove the rear passenger seats. Refer to Seat Replacement - Rear Bench (Seat Replacement - Rear Bench) in Seats.
2. Remove the front headliner. Refer to Headliner Replacement - Front (Headliner Replacement - Front) .
3. Remove the coat hooks. Refer to Coat Hook Replacement (Service and Repair) .
4. Remove the left rear upper garnish molding. Refer to Garnish Molding Replacement - Left Body Side Upper (Garnish Molding Replacement - Left Body Side Upper) .
5. Remove the rear door garnish molding. Refer to Garnish Molding Replacement - Rear Door Upper (Service and Repair) .
6. Remove the rear corner garnish molding. Refer to Garnish Molding Replacement - Rear Corner (Service and Repair) .
7. Remove the upper seat belt anchor bolts.

* Refer to the following in Restraints:
* Seat Belt Retractor Replacement - No. 2 Left Rear
* Seat Belt Retractor Replacement - No. 2 Right Rear
* Seat Belt Retractor Replacement - No. 3 Left Rear
* Seat Belt Retractor Replacement - No. 3 Right Rear

8. Disconnect the electrical connectors.
9. Remove the headliner from the vehicle through the rear doors



Installation Procedure





1. Install the headliner to the vehicle.
2. Connect the electrical connectors.
3. Install the coat hooks. Refer to Coat Hook Replacement (Service and Repair) .
4. Install the left rear upper garnish molding. Refer to Garnish Molding Replacement - Left Body Side Upper (Garnish Molding Replacement - Left Body Side Upper) .
5. Install the rear door garnish molding. Refer to Garnish Molding Replacement - Rear Door Upper (Service and Repair) .
6. Install the rear corner garnish molding. Refer to Garnish Molding Replacement - Rear Corner (Service and Repair) .
7. Install the upper seat belt anchor bolts.

* Refer to the following in Restraints:
* Seat Belt Retractor Replacement - No. 2 Left Rear
* Seat Belt Retractor Replacement - No. 2 Right Rear
* Seat Belt Retractor Replacement - No. 3 Left Rear
* Seat Belt Retractor Replacement - No. 3 Right Rear

8. Install the front headliner. Refer to Headliner Replacement - Front (Headliner Replacement - Front) .
9. Install the rear passenger seats. Refer to Seat Replacement - Rear Bench (Seat Replacement - Rear Bench) in Seats.
