Power Door Lock Actuator: Diagrams
Door Lock Actuator - LR - C2 With RPO Code AU3:
Door Lock Actuator - RR With RPO Code YA2/AU3:

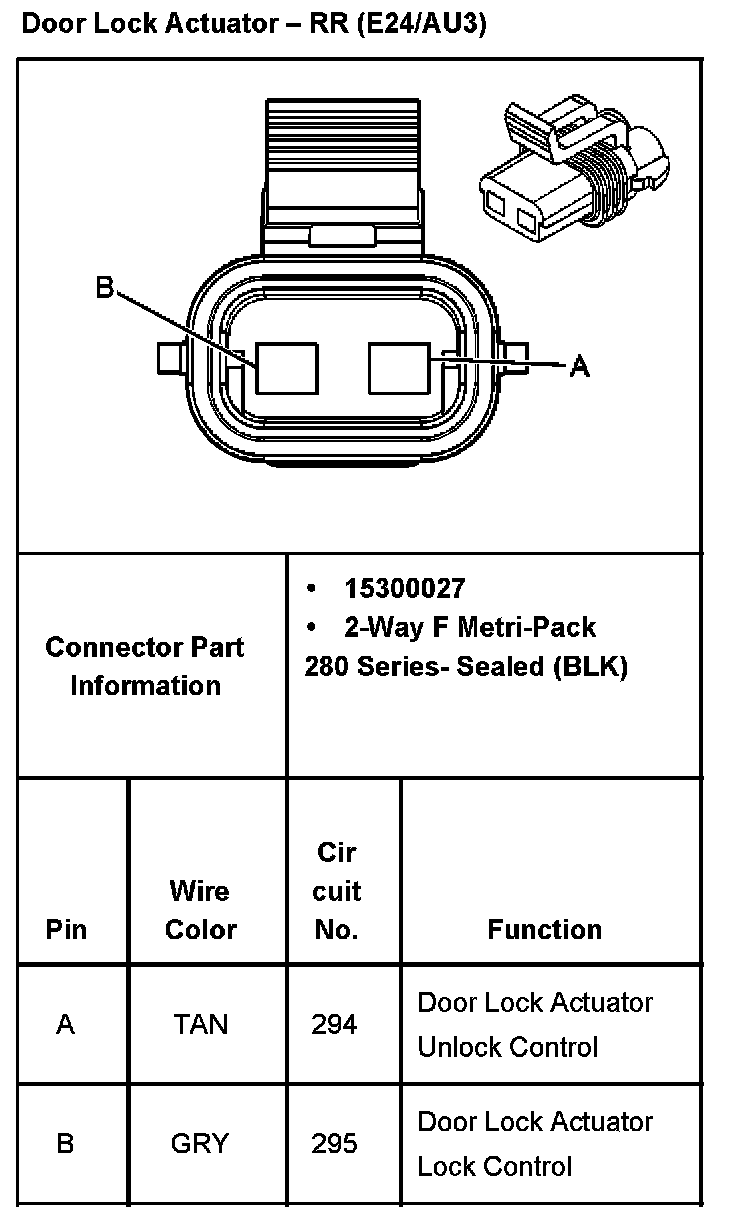

Door Lock Actuator - RR With RPO Code E24/AU3:
