Power Door Lock Switch: Diagrams

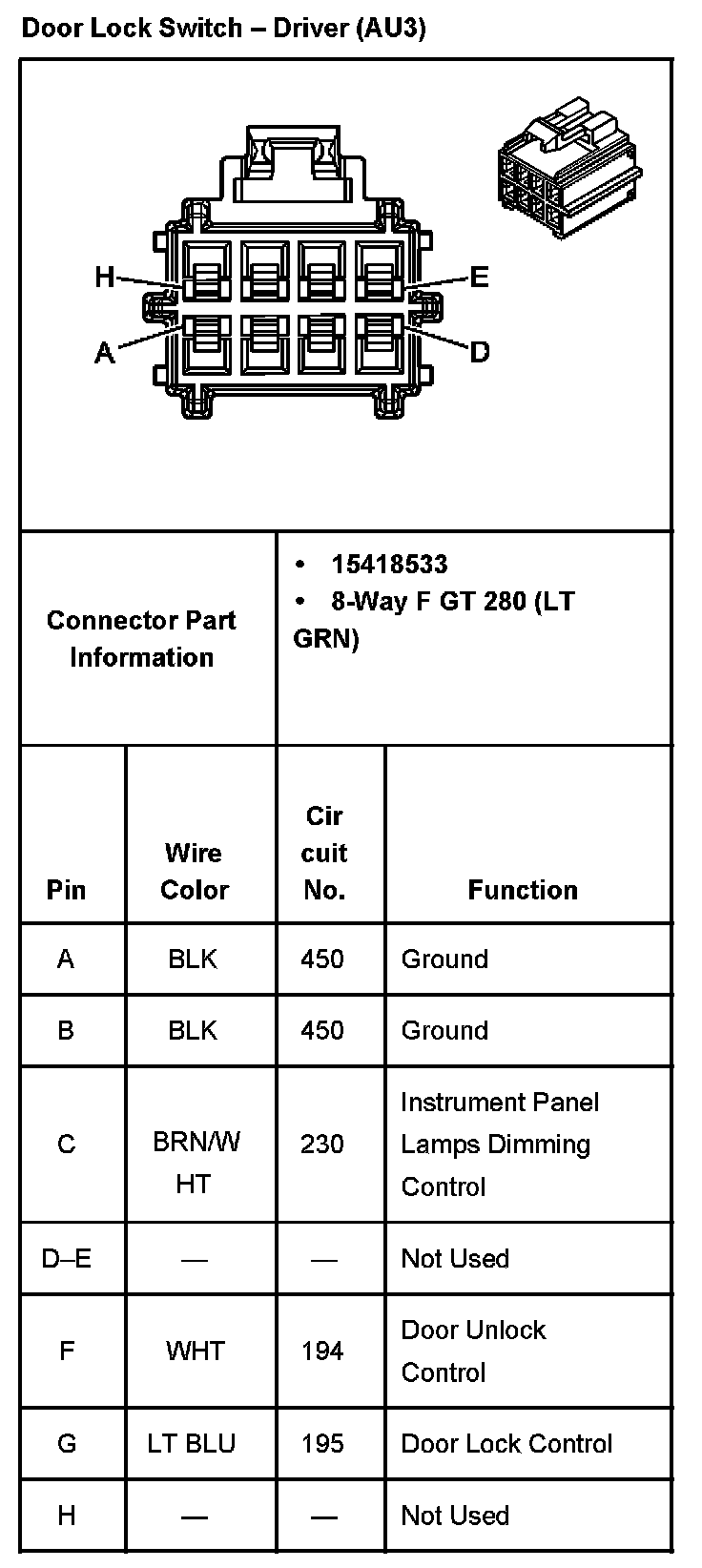

Door Lock Switch - Driver With RPO Code AU3:

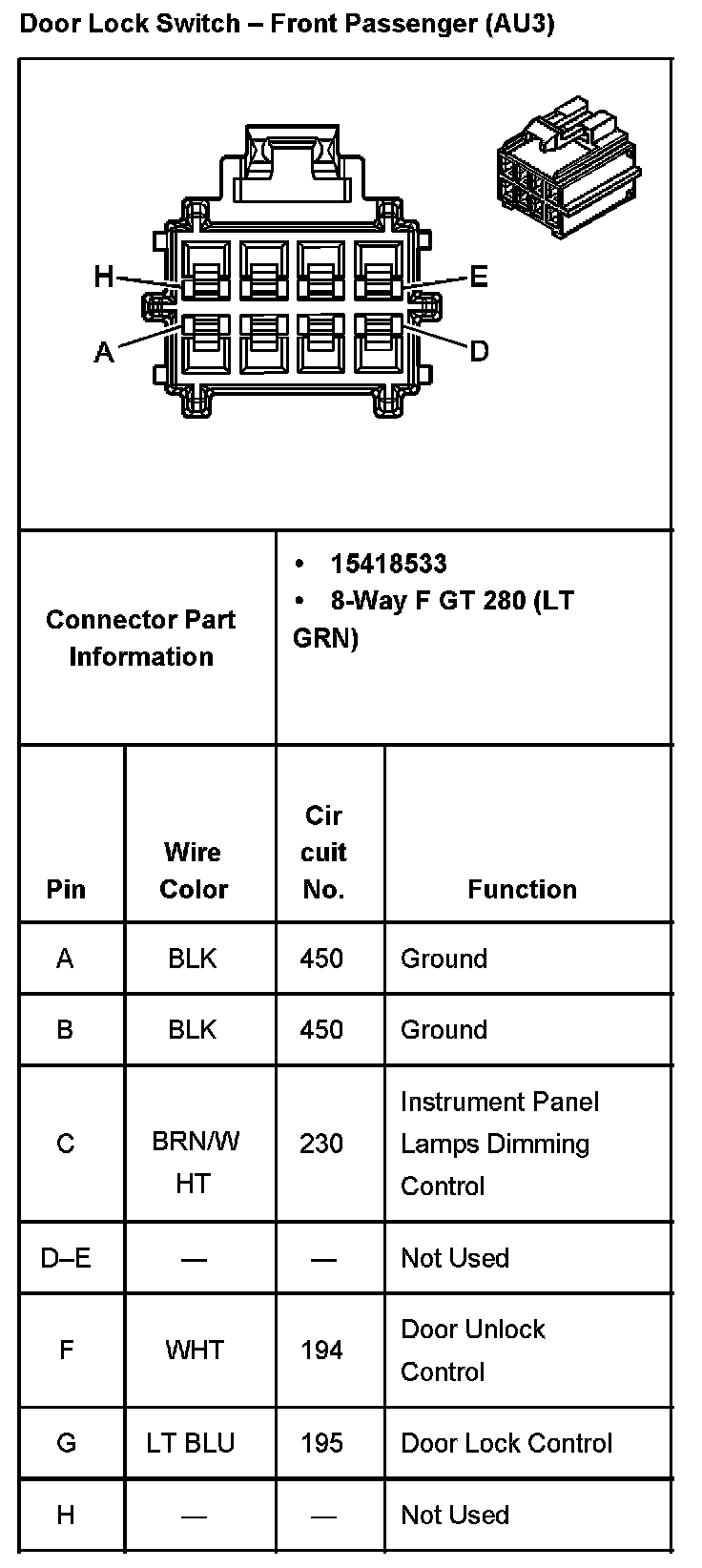

Door Lock Switch - Front Passenger With RPO Code AU3:



Door Lock Switch - Rear Cargo With RPO Code AU3:
