Home >> Chevy Truck >> 2003 >> Express 1 Ton Van V8-6.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Torque Converter Clutch Solenoid, A/T >> 4L60-E/4L65-E >> Torque CONV Clutch Pulse Width Modulated TCC PWM Solenoid Valve

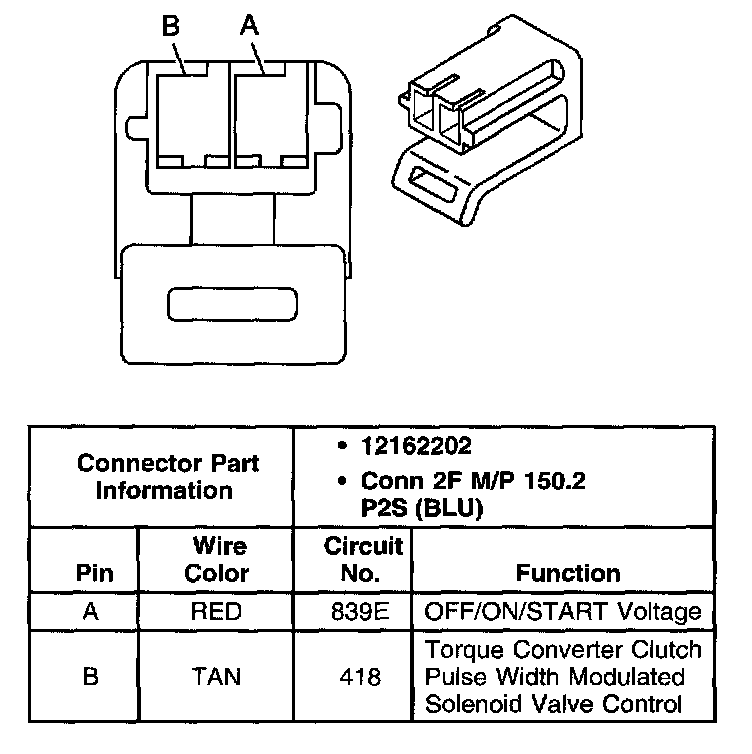

Torque CONV Clutch Pulse Width Modulated TCC PWM Solenoid Valve
