Component Locations

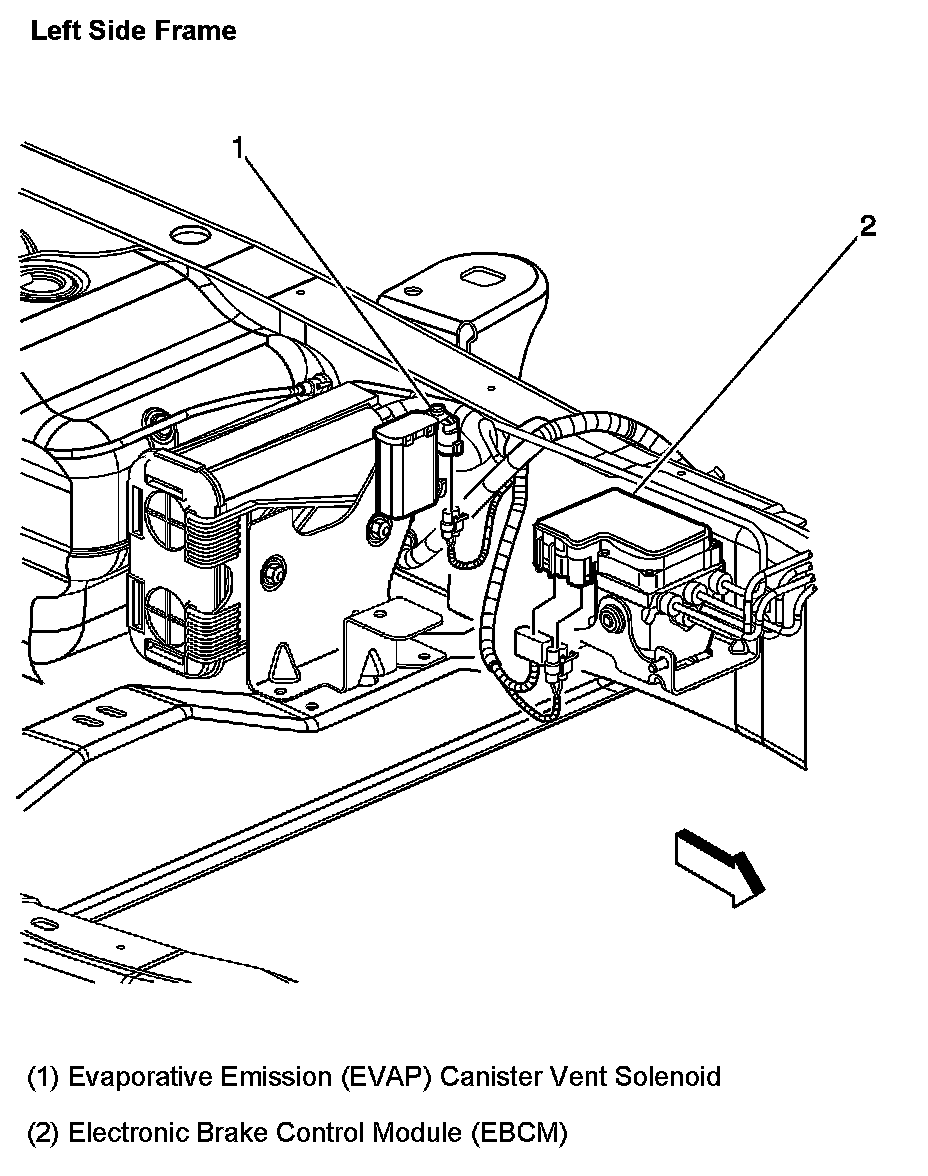

Left Side Frame:

Chassis Harness Routing (Passenger/Cargo):

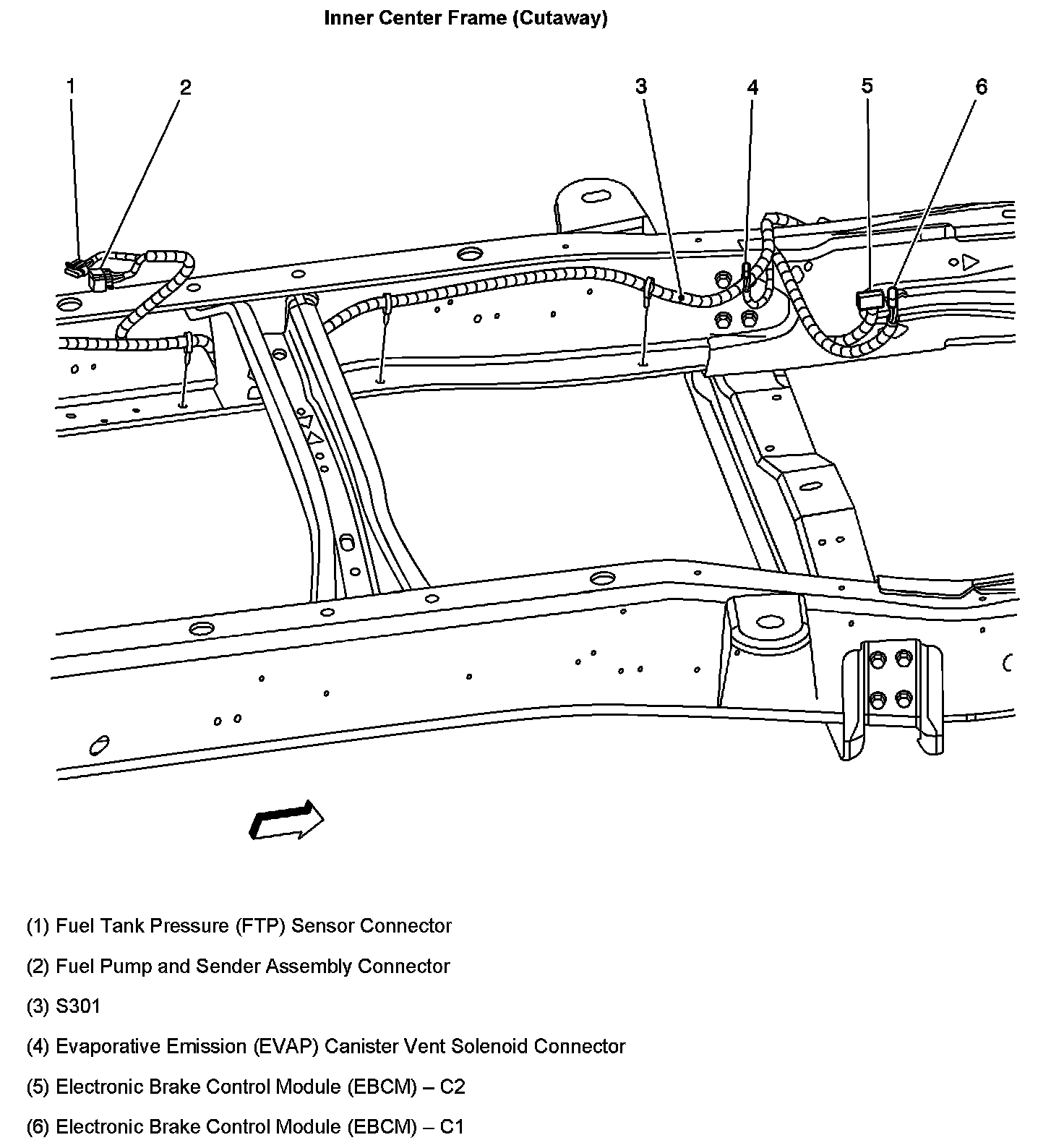

Inner Center Frame (Cutaway):

Outer Center Frame (Cutaway):

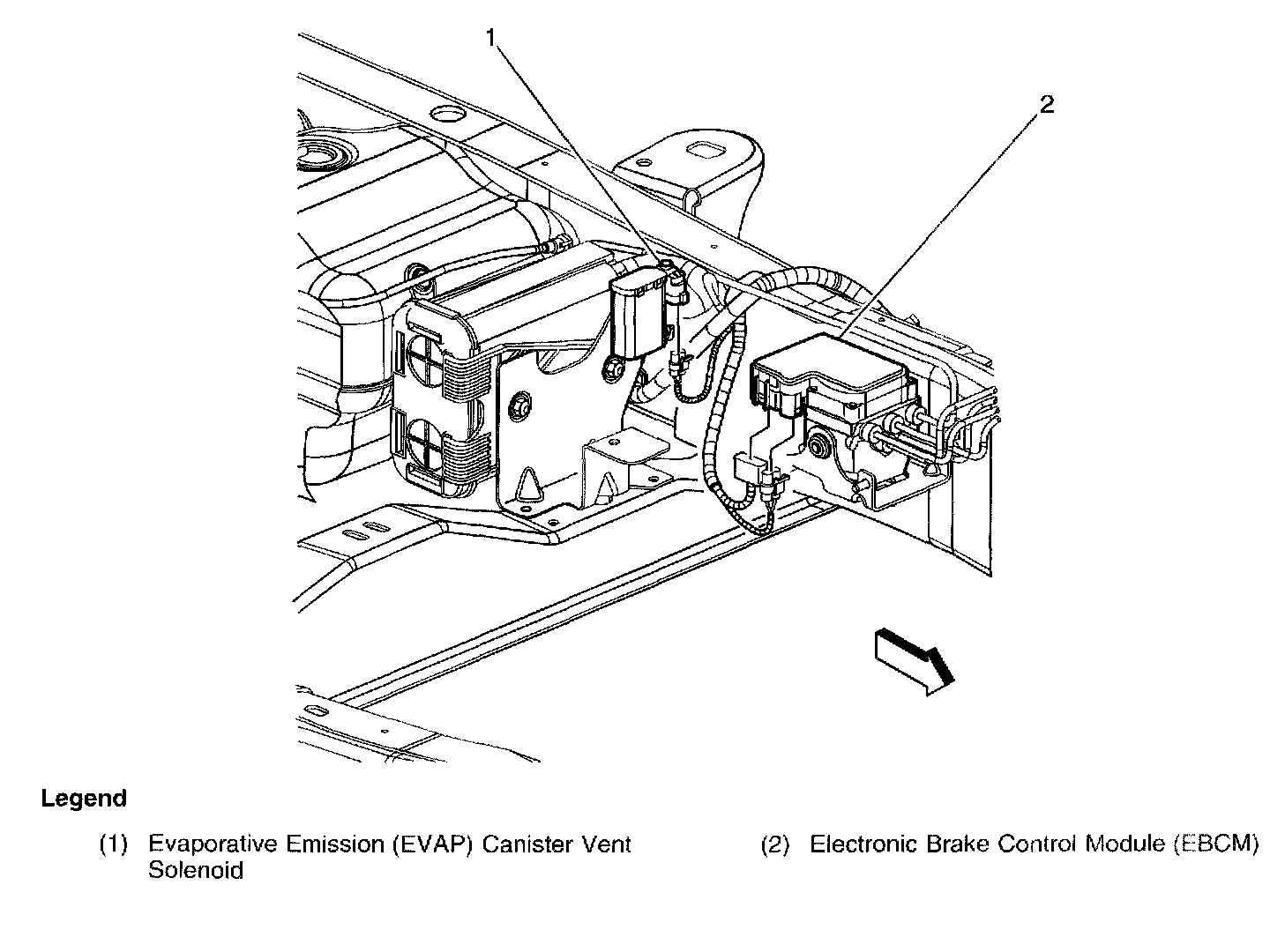

Electronic Brake Control Module (EBCM) & EVAP Emission Canister Vent Solenoid:
