Home >> Chevy Truck >> 2003 >> Express 1 Ton Van V8-6.0L VIN U >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Starter Solenoid Does Not Click

Starter Solenoid Does Not Click

Steps 1-3:

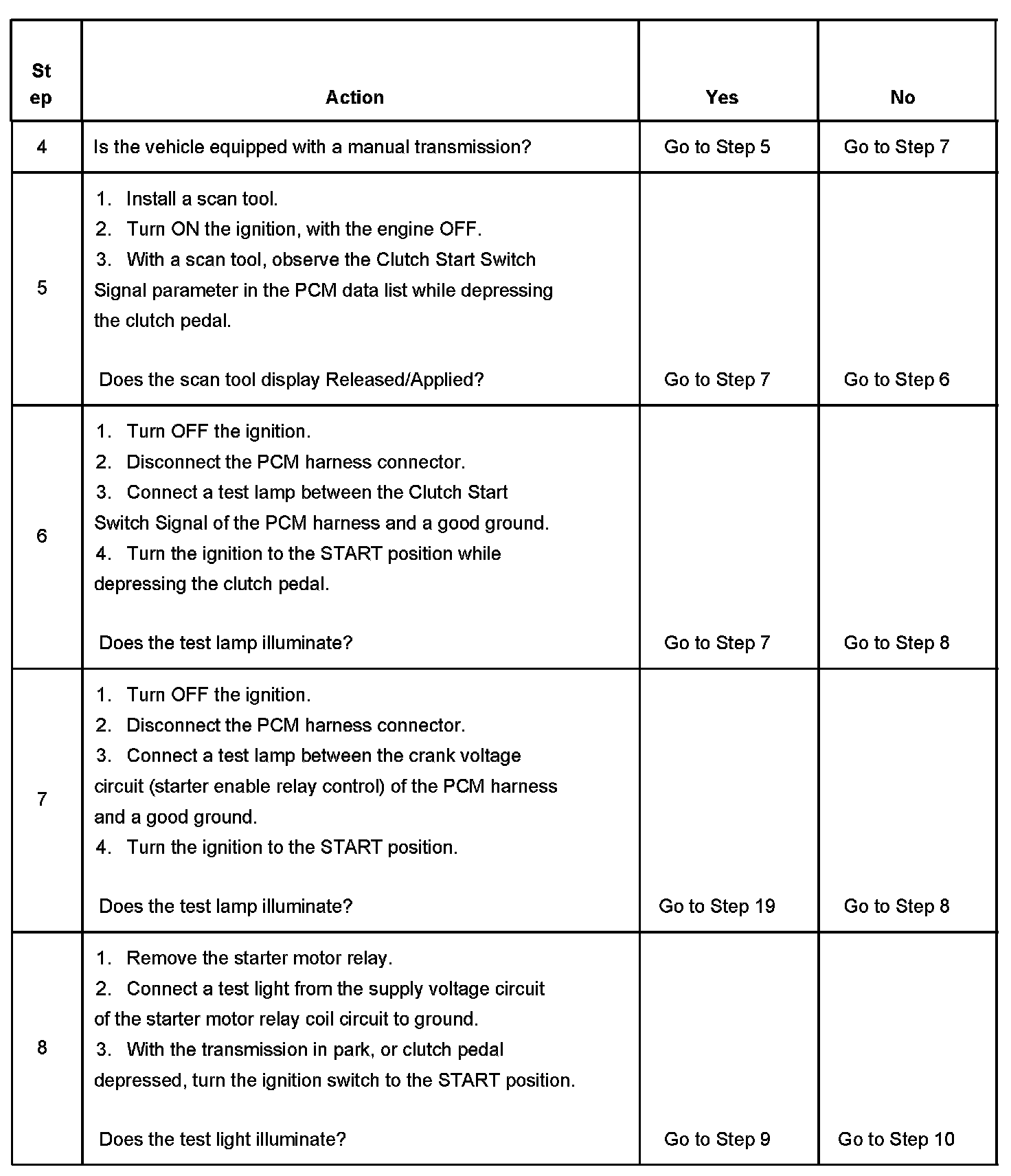

Steps 4-8:




Steps 9-13:

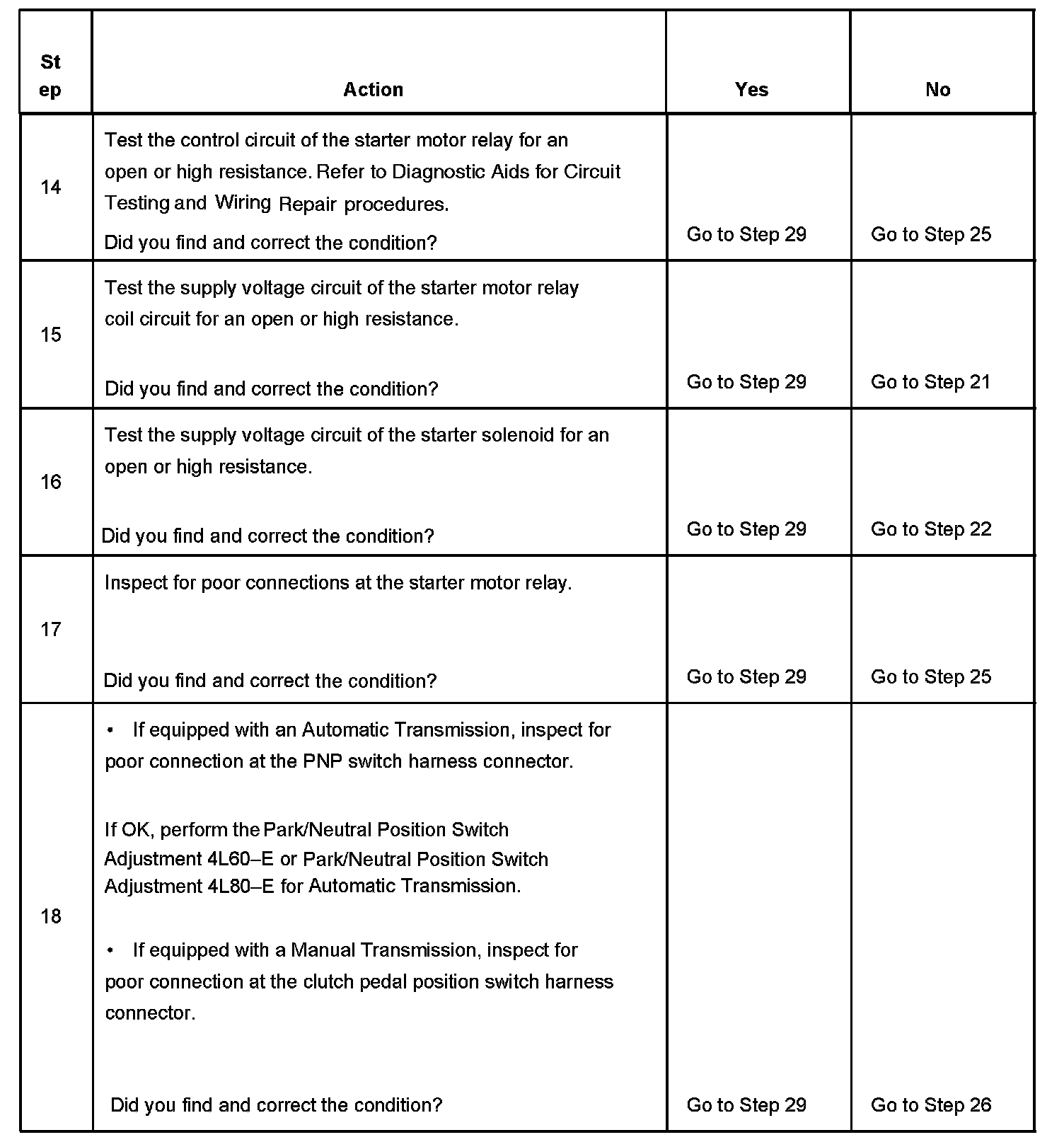

Steps 14-18:




Steps 19-25:




Steps 26-29:
