Shift Lever CAN Be Moved Without Brake Pedal Depressed

Steps 1 - 2:



Steps 3 - 13:

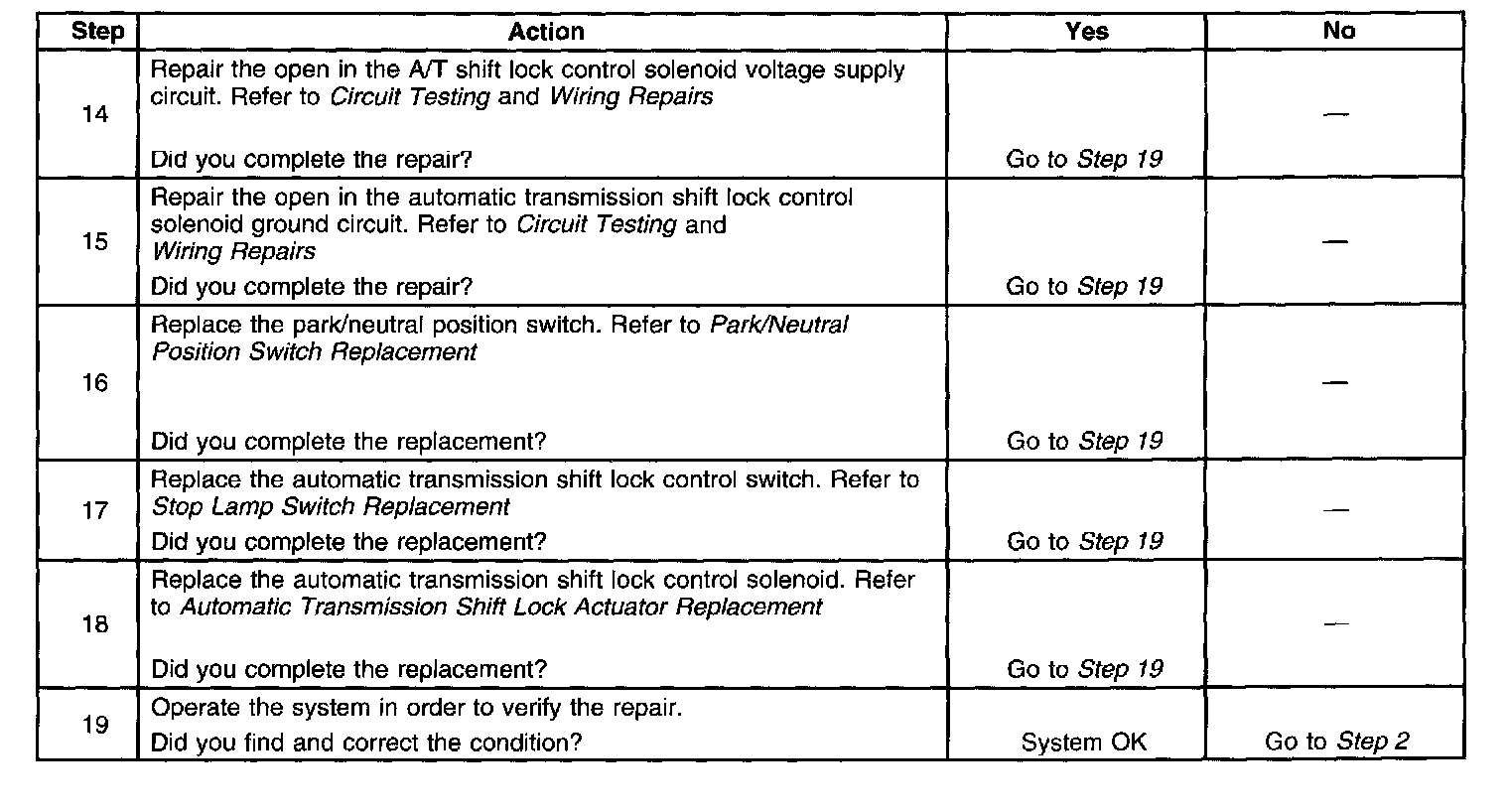

Steps 14 - 19:
