Home >> Chevy Truck >> 2003 >> K 2500 Suburban 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Locations

Cruise Control Module: Locations

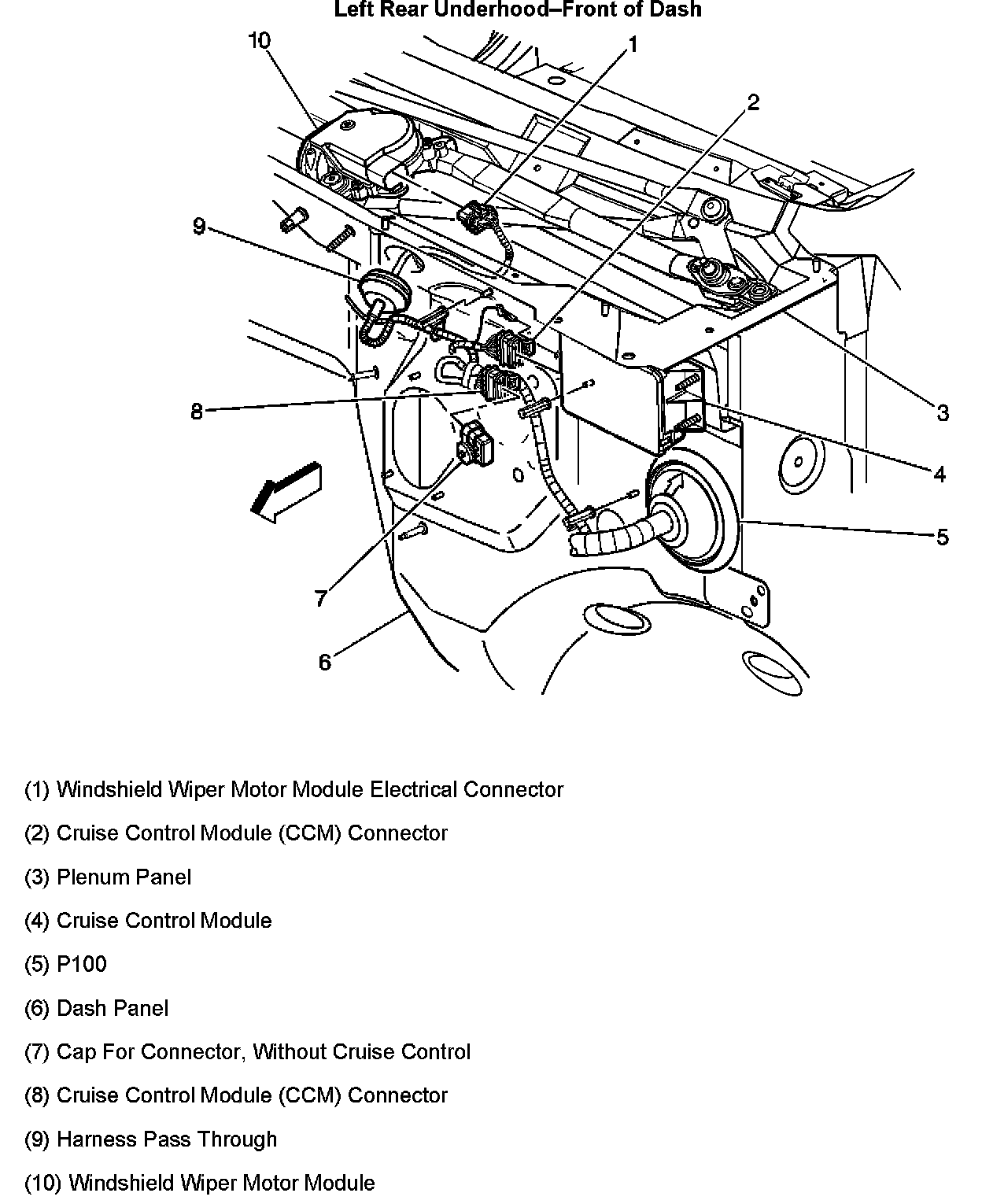

Left Rear Underhood-Front Of Dash:

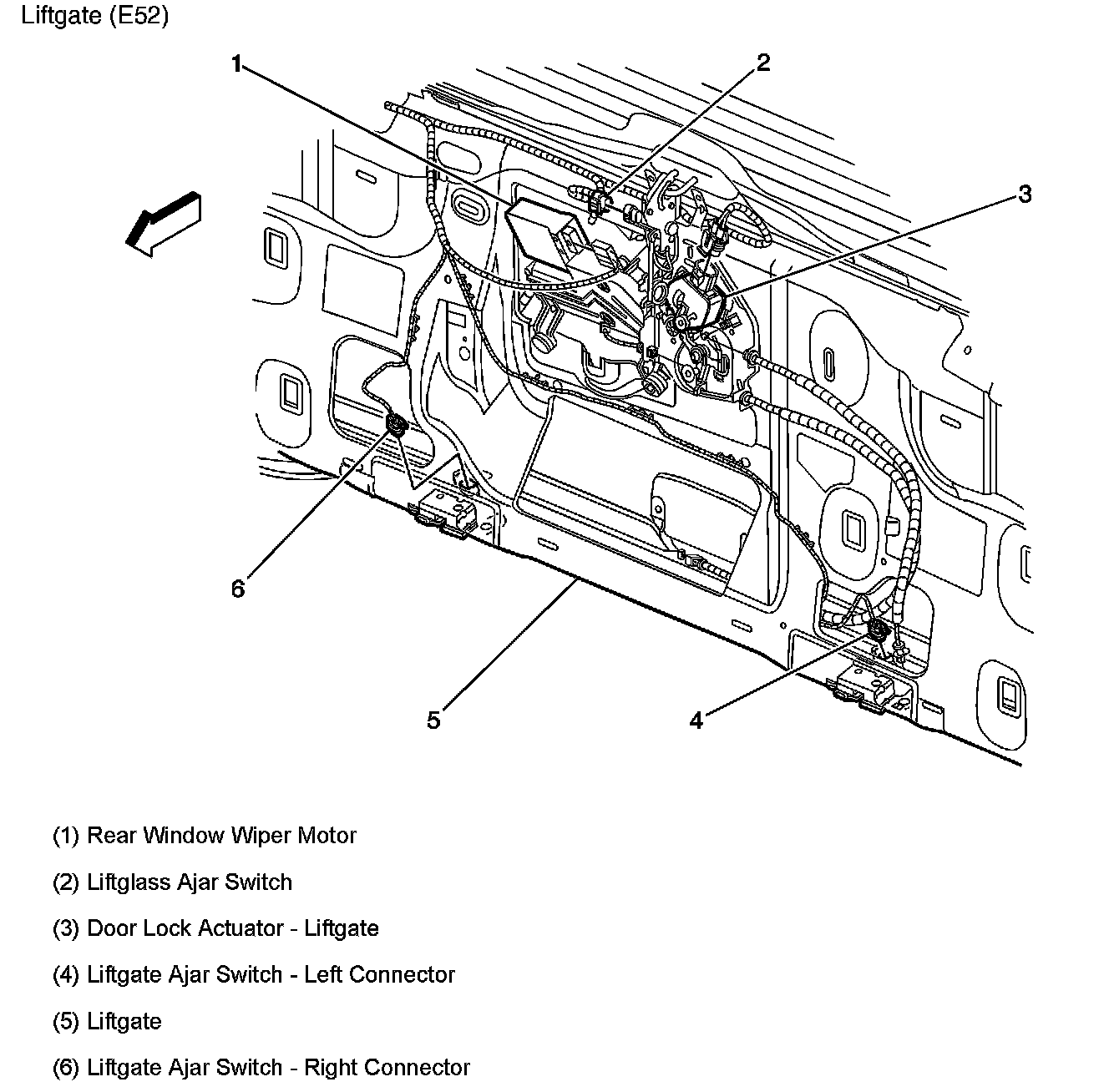

Liftgate:
