C250 Brake/Clutch Harness to Brake Clutch Jumper Harness
C250 Brake/Clutch Harness to Brake Clutch Jumper Harness

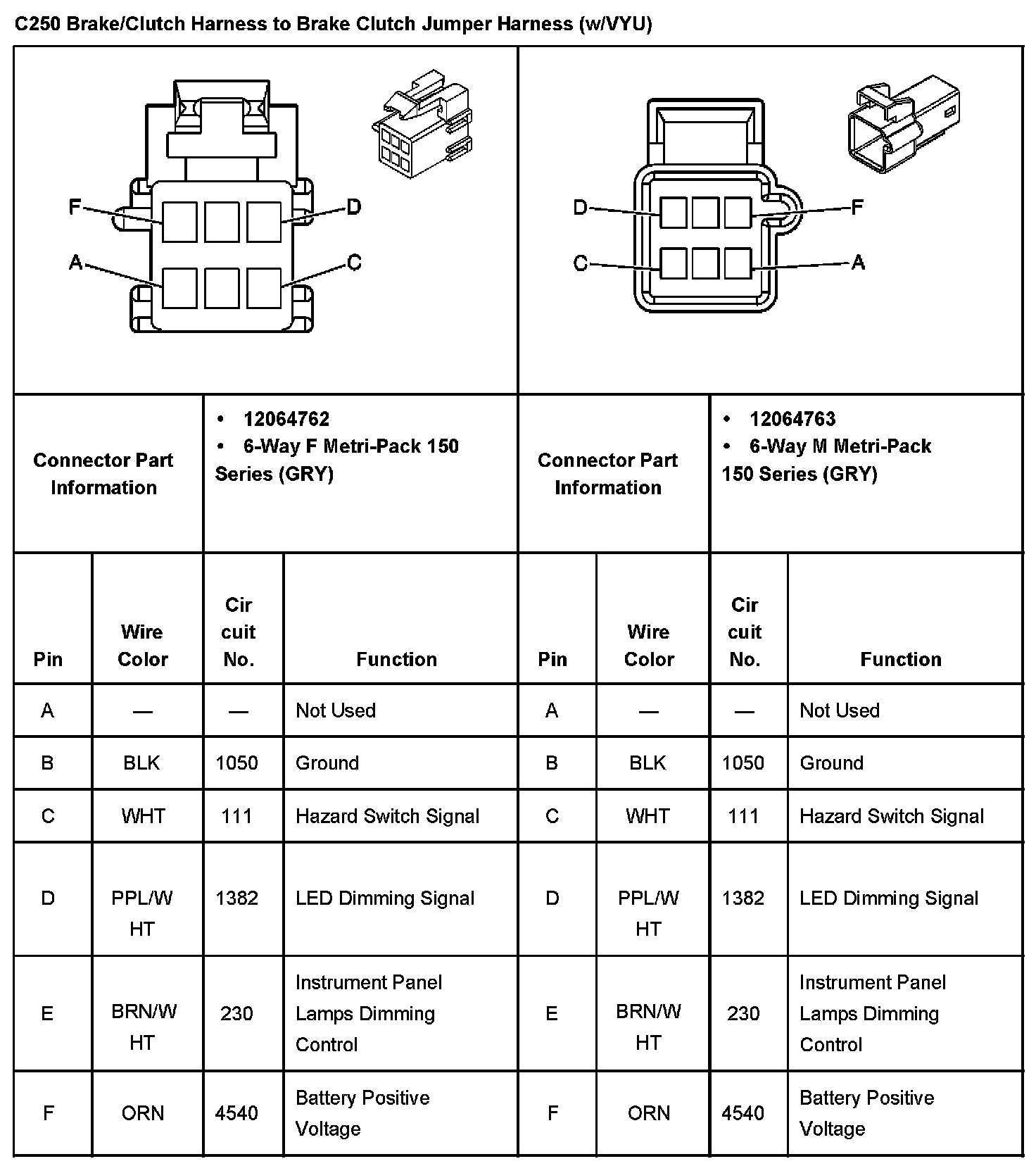

C250 Brake/Clutch Harness To Brake Clutch Jumper Harness (w/VYU):
