C148 - Engine Harness to Coil Jumper Harness
C148 - Engine Harness to Coil Jumper Harness

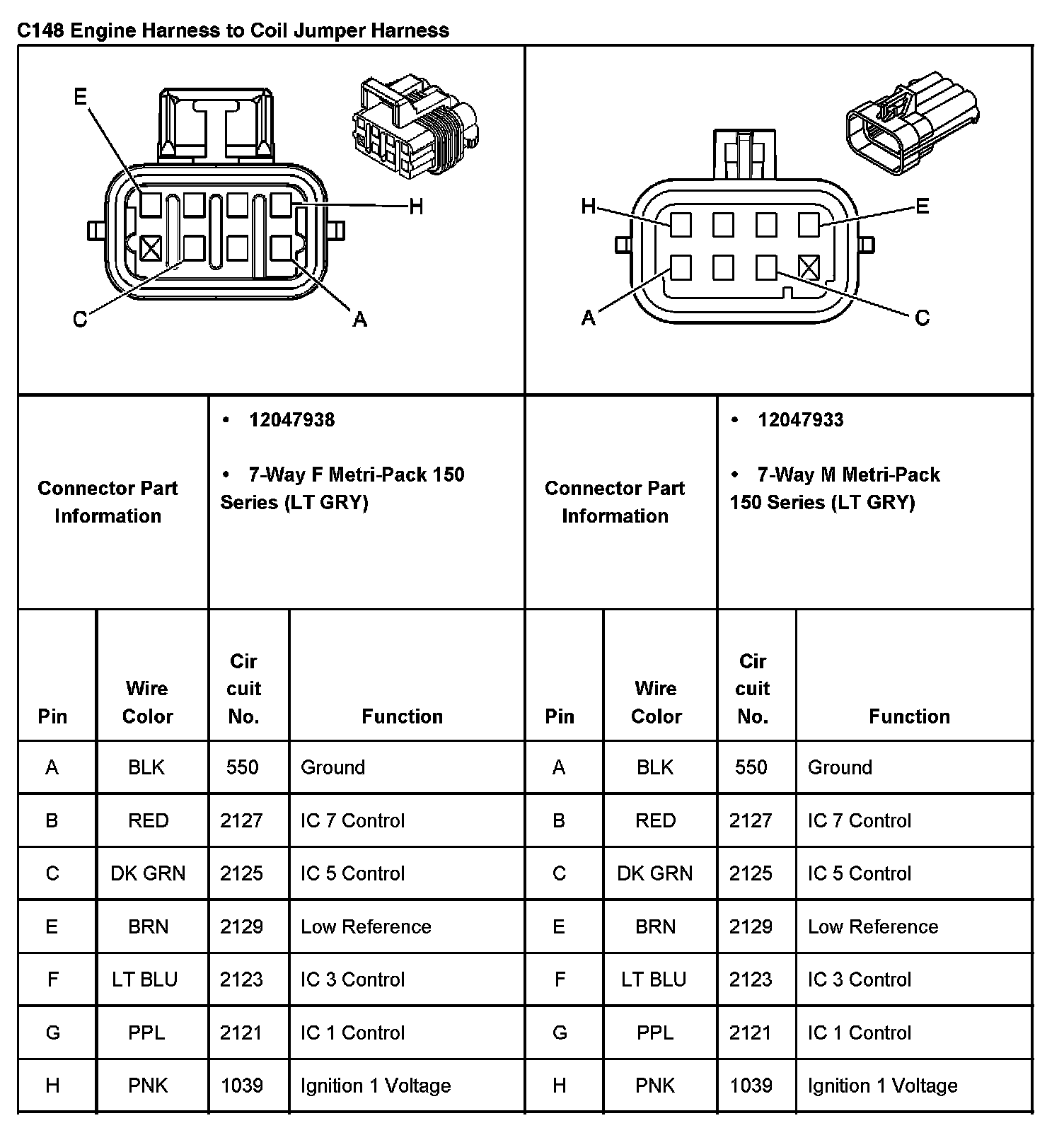

C148 Engine Harness to Coil Jumper Harness:
