C125 Snowplow Harness to Forward Lamp Harness (RPO Code VYU)
C125 Snowplow Harness to Forward Lamp Harness (RPO Code VYU)

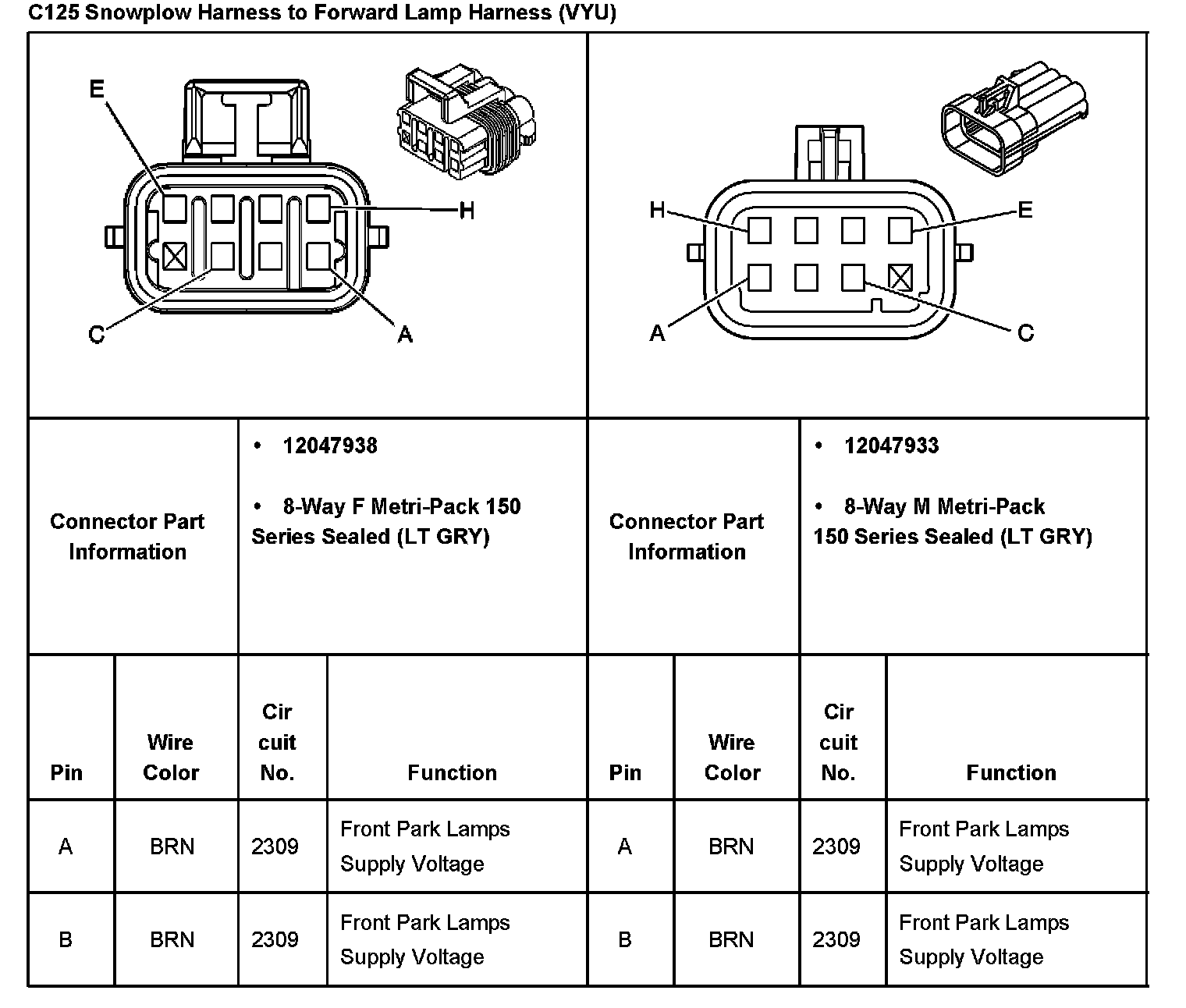

C125 Snowplow Harness to Forward Lamp Harness (With RPO Code VYU) Part 1:

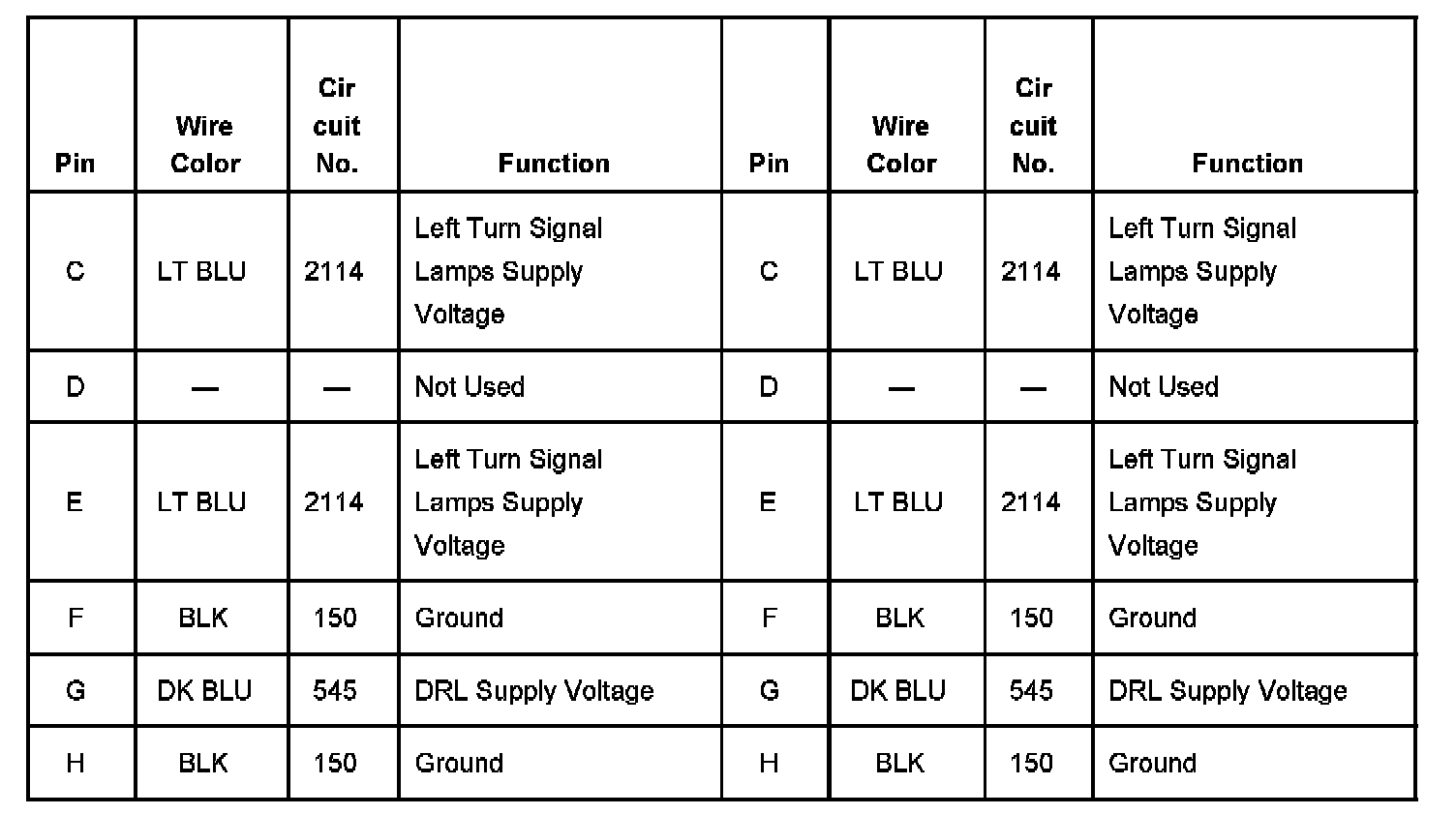

C125 Snowplow Harness to Forward Lamp Harness (With RPO Code VYU) Part 2:
