C111 - Engine Harness to Fuel Injector Harness
C111 - Engine Harness to Fuel Injector Harness

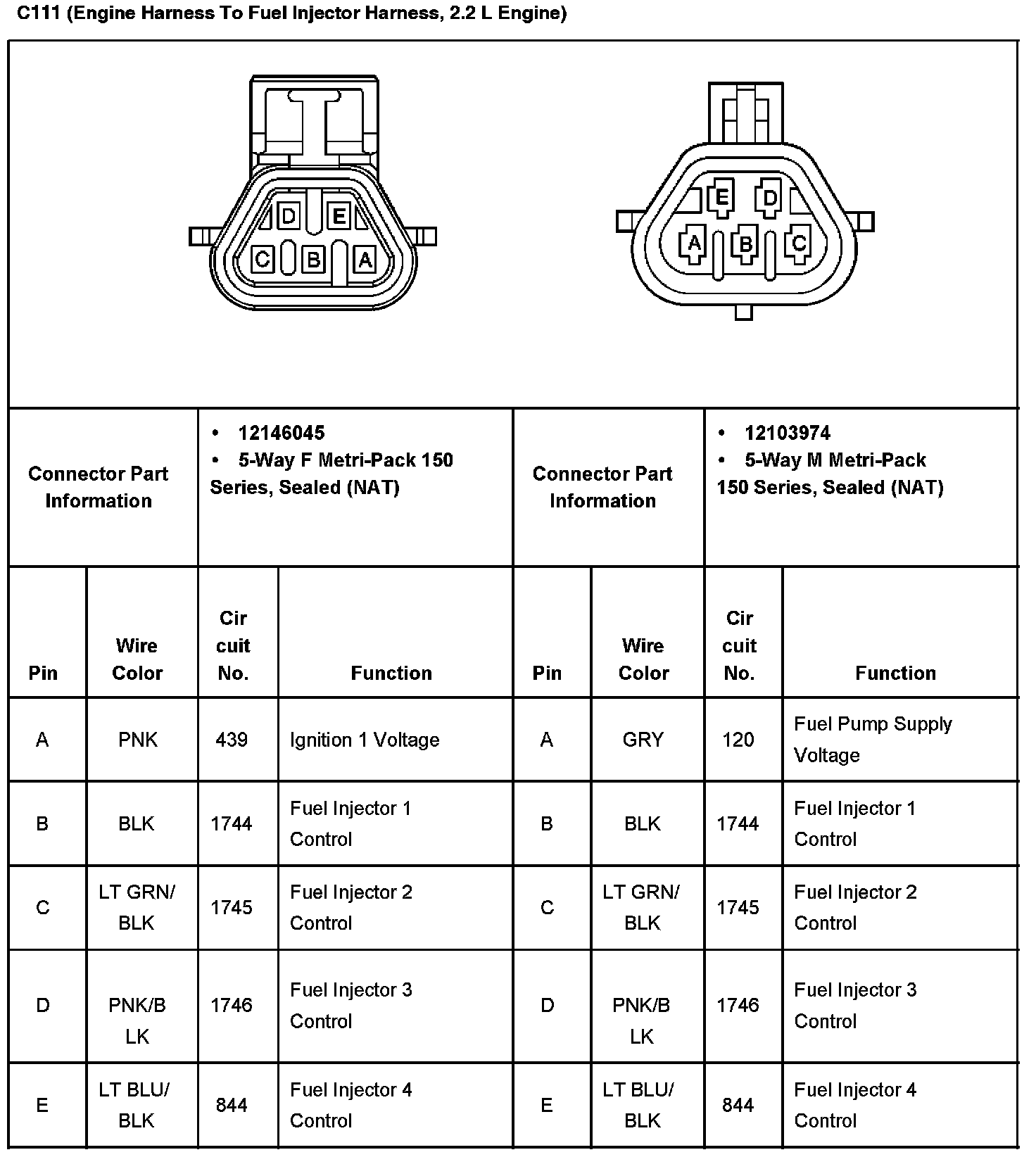

C111 (Engine Harness To Fuel Injector Harness):
