C500 - Body Harness to LF Door Harness
C500 - Body Harness to LF Door Harness

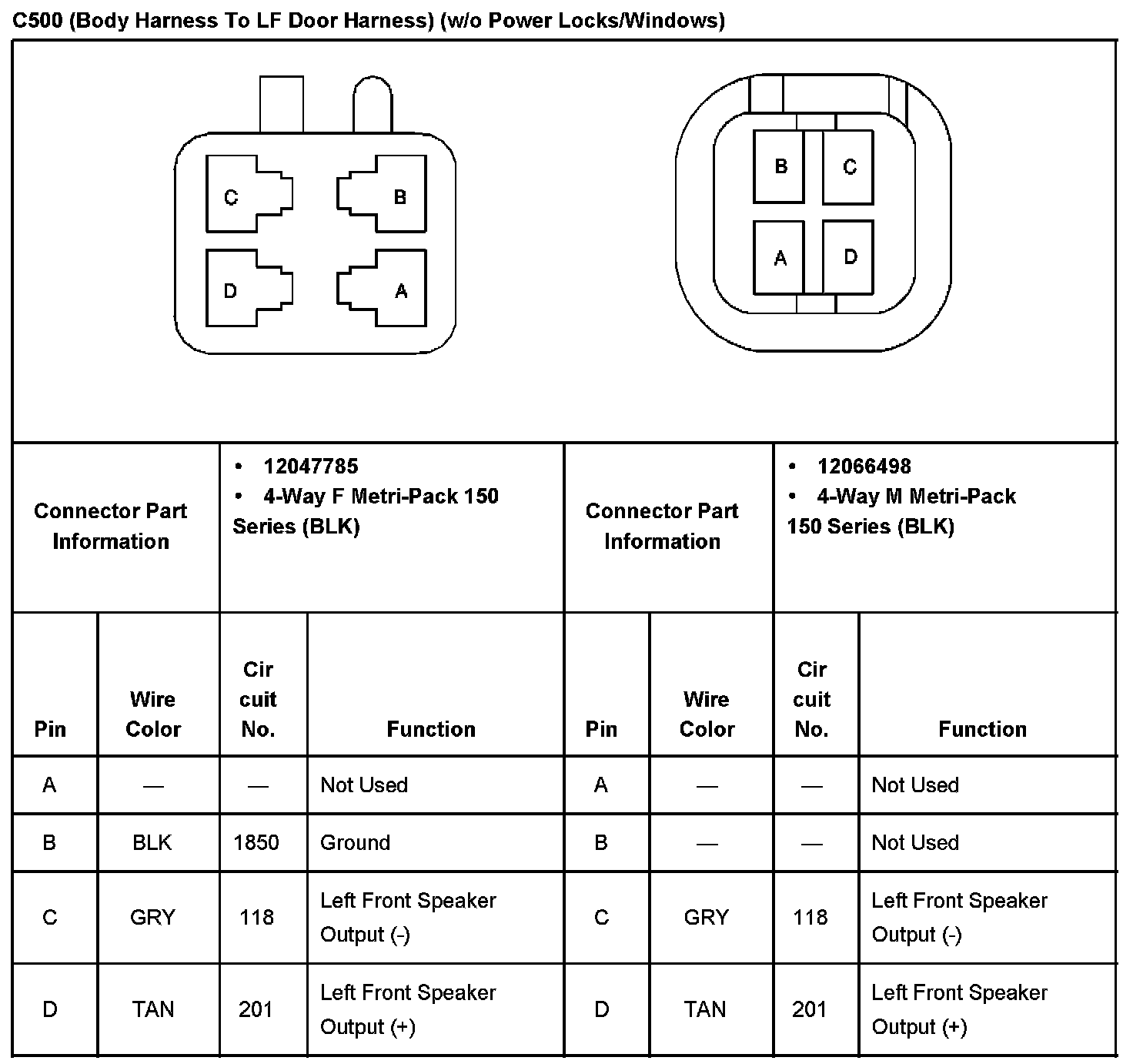

C500 (Body Harness To LF Door Harness) (W/O Power Locks/Windows):
