Chevy Truck
>>
2003
>>
S10/T10 P/U 2WD L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Manual Transmission/Transaxle
>>
NV 1500
NV 1500
Shift Indicator:

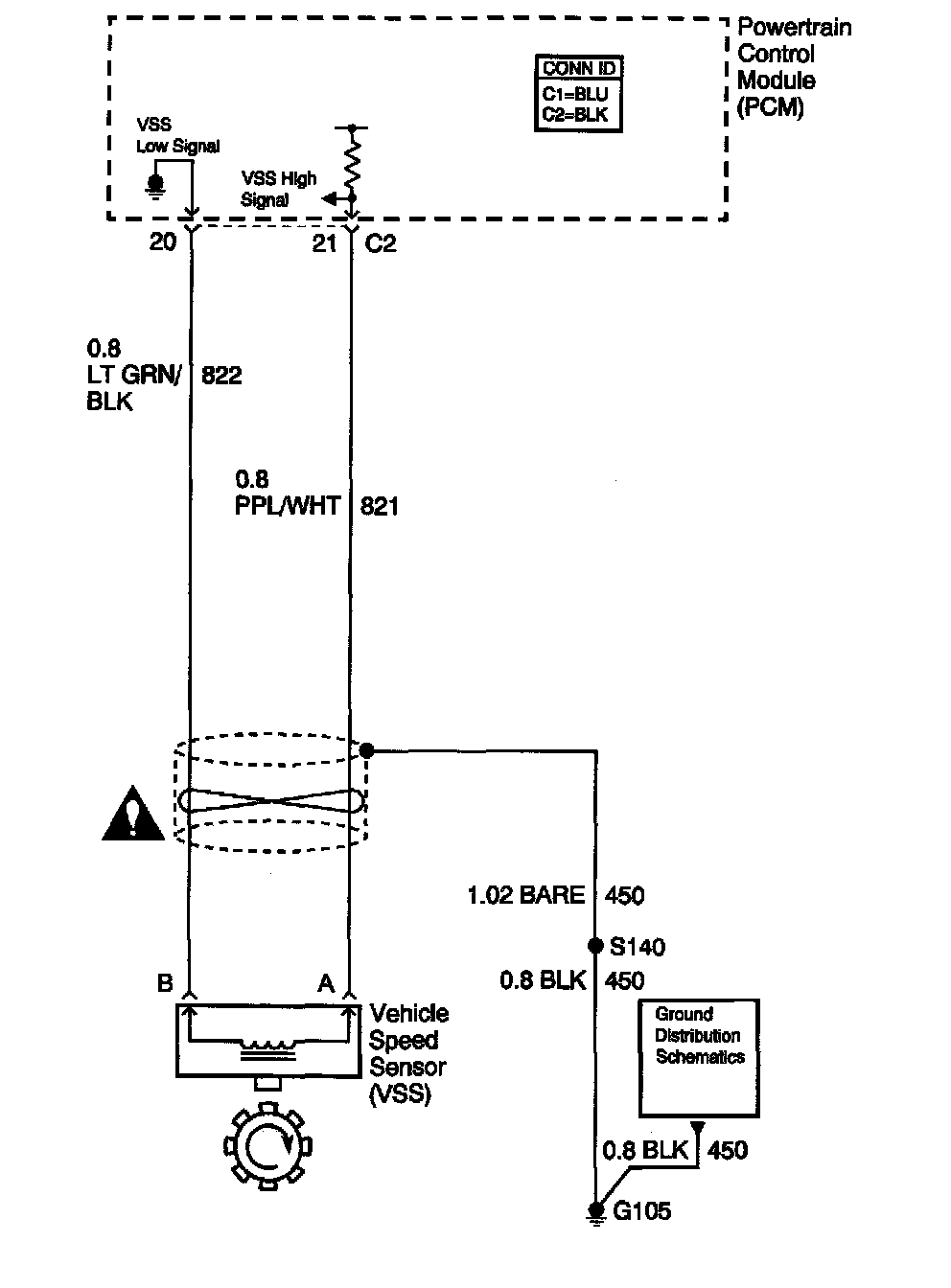

Vehicle Speed Sensor VSS:
