Differential Oil Replacement

Differential Oil Replacement

Removal Procedure

1. Raise the vehicle.

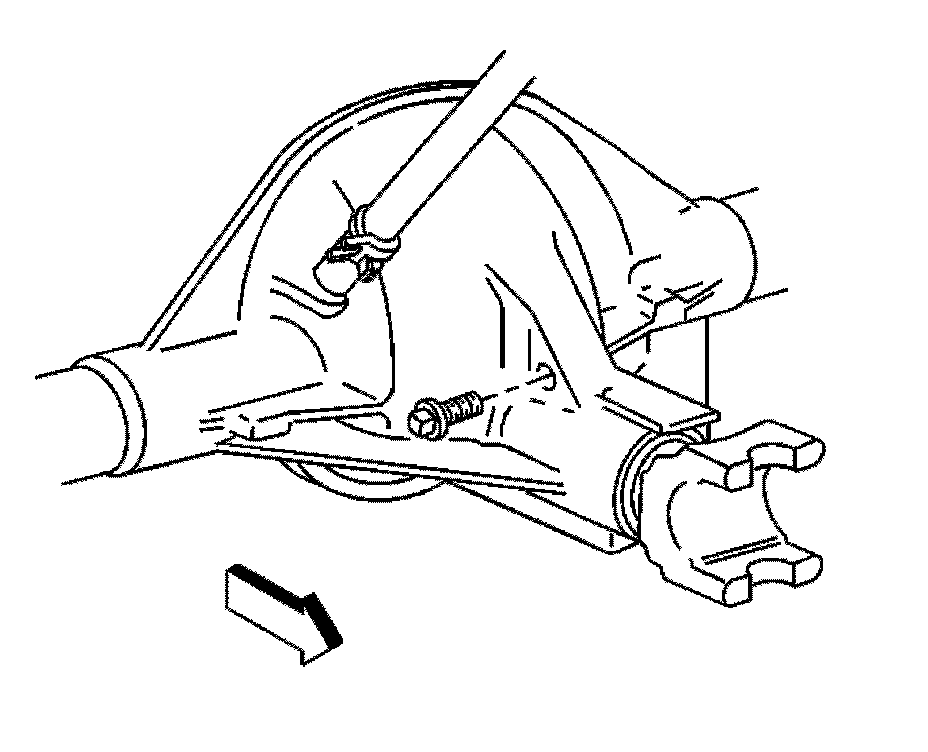

2. Remove the rear axle fill plug.

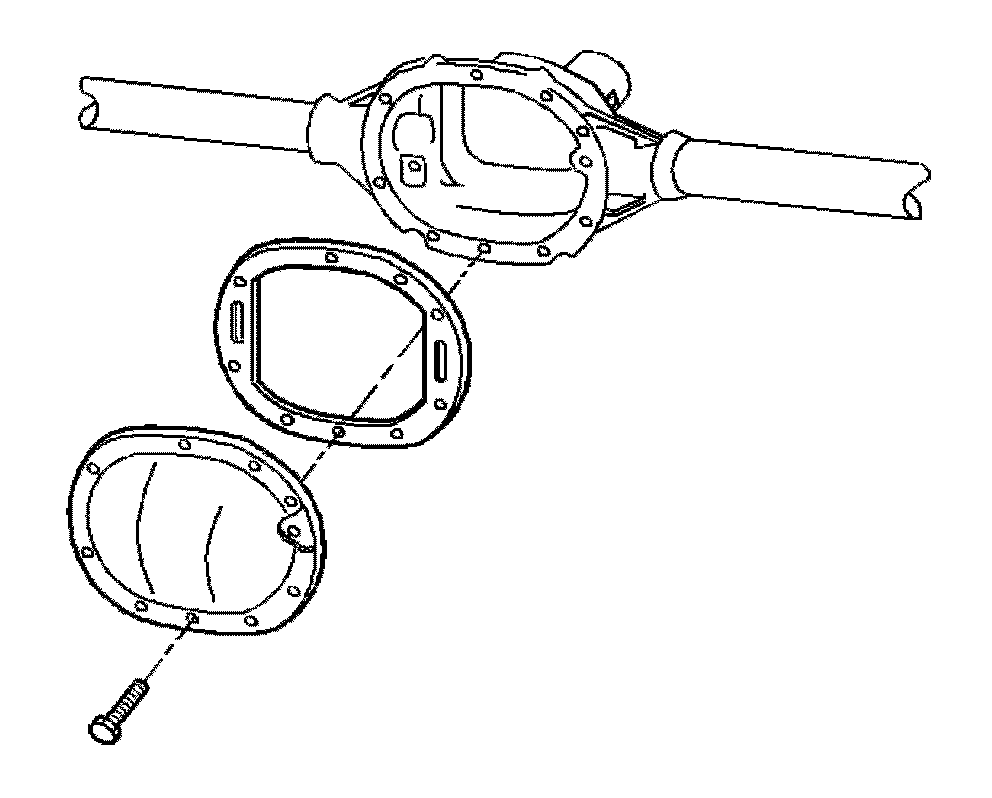

3. Remove the rear axle housing cover and the rear axle housing cover gasket.
4. Drain the lubricant into a suitable container.
5. Inspect the bottom of the rear axle housing for excessive metal particle accumulation. This accumulation is symptomatic of extreme wear.

Installation Procedure





1. Install the new rear axle housing cover gasket and the rear axle housing cover.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

2. Install the rear axle housing cover bolts. Tighten the rear axle housing cover bolts in a crosswise pattern to 39 Nm (29 lb ft).
3. Fill the rear axle. Use the proper fluid.






4. Install the rear axle fill plug. Tighten the rear axle fill plug to 33 Nm (24 lb ft).
5. Lower the vehicle.
