Vent Hose Replacement

Vent Hose Replacement

Removal Procedure

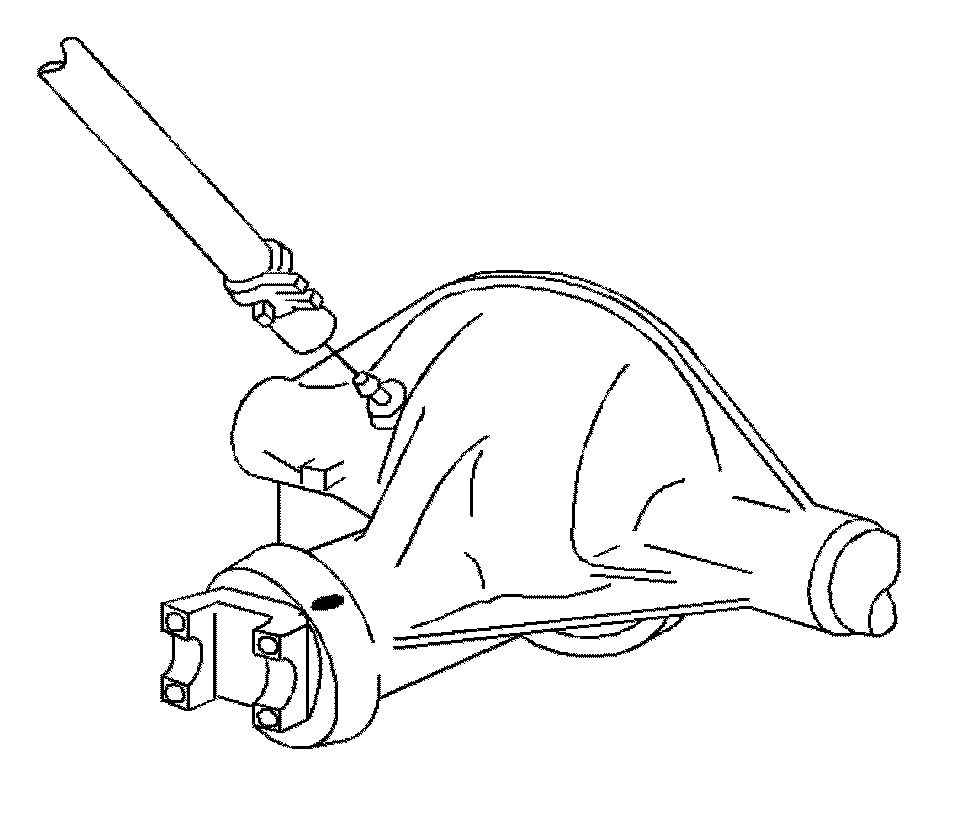

The axle vent assembly is on the right side of the axle carrier.

1. Raise and support the vehicle.

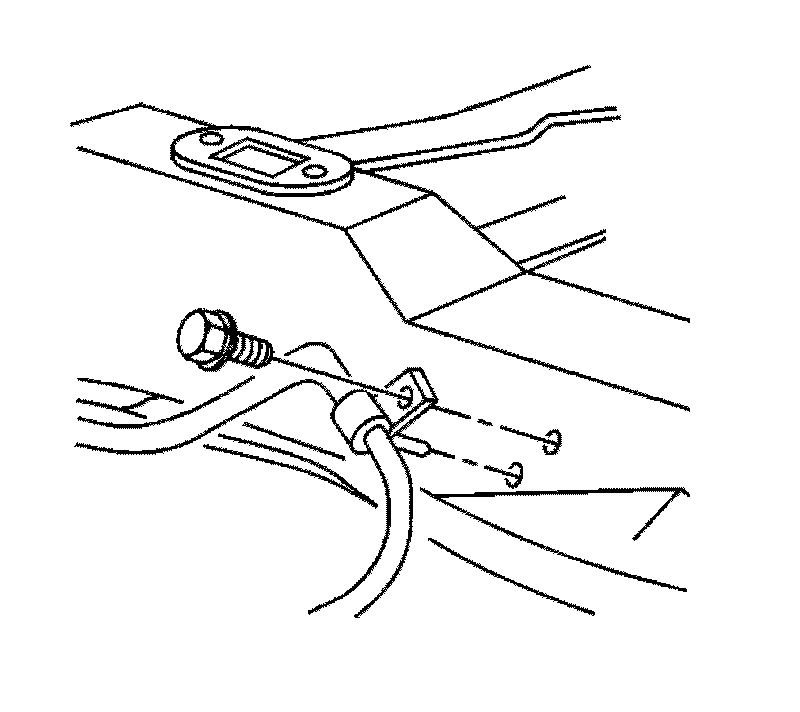

. Remove the vent clamp bolt.






3. Remove the hose from the axle vent tube.

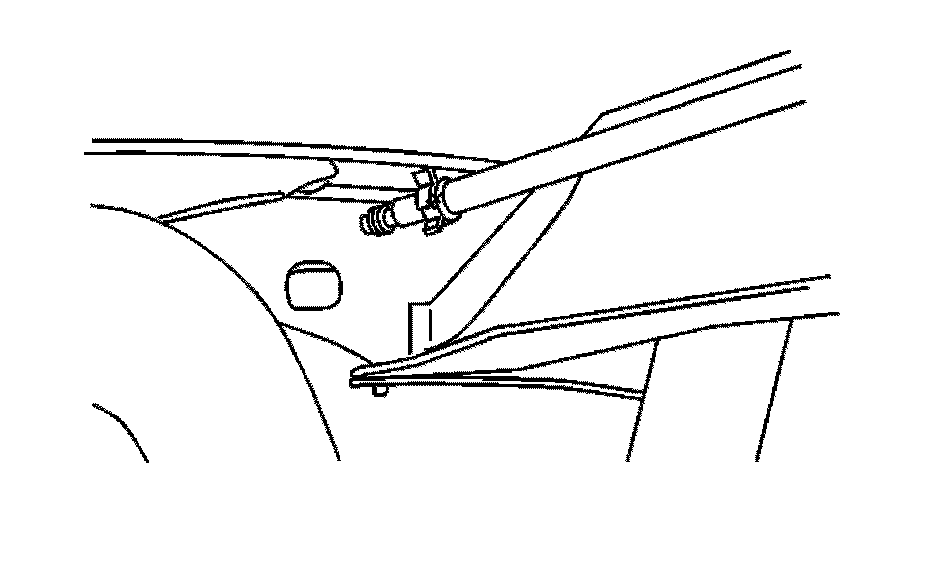

4. Remove the hose from the frame.
5. Remove the vent assembly from the hose.
6. Remove the vent hanger clip from the vent hose.
7. Remove the hose clamp from the vent hose.

Installation Procedure

1. Use a neoprene-type replacement vent hose.
2. Install the hose clamp to the vent hose.
3. Install the vent hanger clip to the vent hose.
4. Install the vent assembly to the vent hose.






5. Install the vent hose to the axle vent tube.
6. Install the hose clamp to the axle vent tube. Do not kink or twist the hose.






7. Install the hose to the frame.






Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

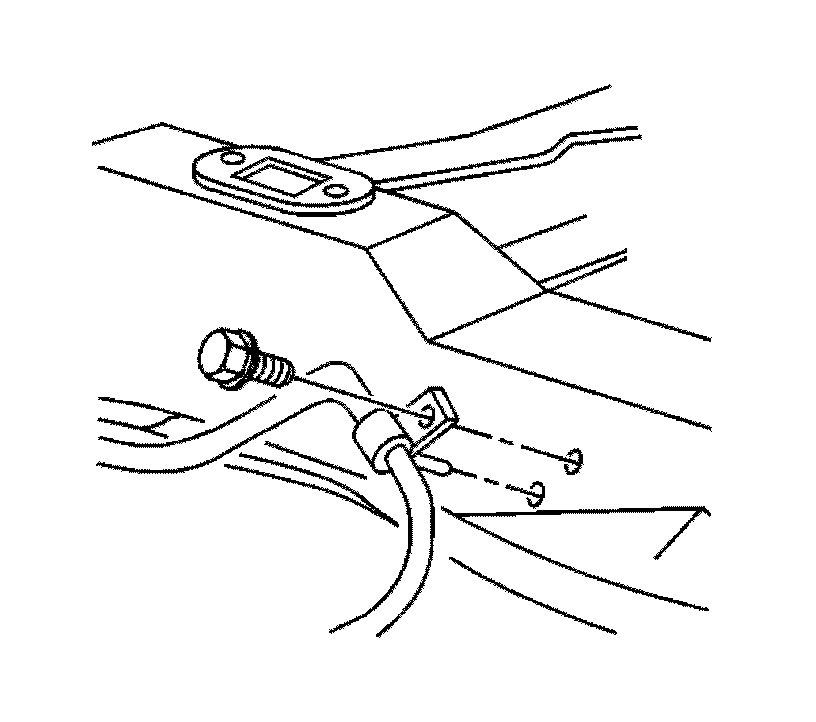

8. Install the vent clamp bolt at the vent assembly. Tighten the bolt to 16 Nm (12 lb ft).
9. Lower the vehicle.
