C117 - Engine Harness to Air Harness, W/ California Emissions
C117 - Engine Harness to Air Harness, W/ California Emissions

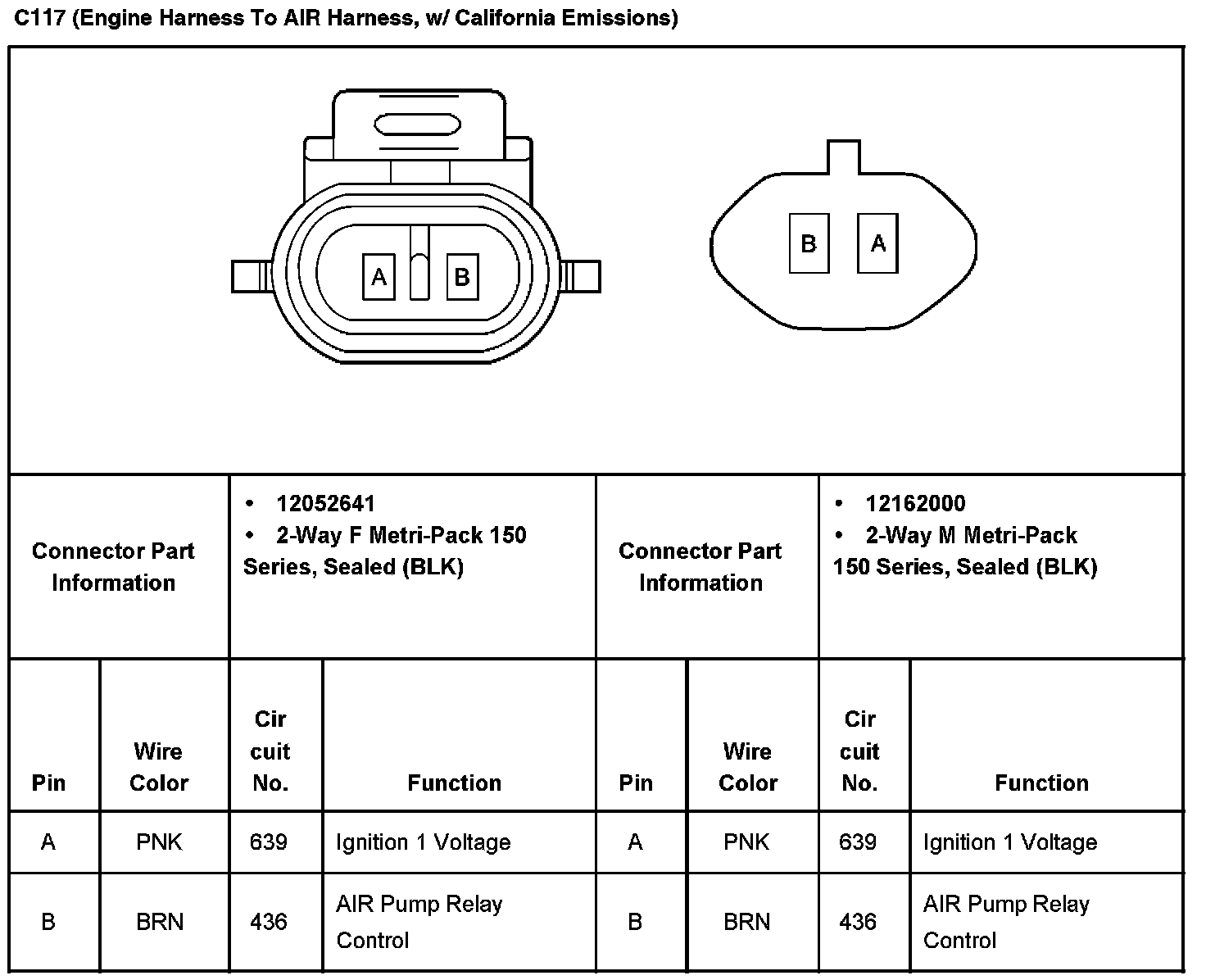

C117 (Engine Harness To AIR Harness, w/ California Emissions):
