C0323

DTC C0323

Test 1-10:

Circuit Description
The transfer case shift control module controls the transfer case lock solenoid. The lock is energized, locking action released, grounding the lock control circuit during gear shifts and in AUTO 4WD mode of operation. When power or ground is removed from the lock solenoid, locking action applied, the transfer case motor is prevented from moving. In this manner, the system is capable of providing a 4H and 4L lock-up without the need of additional vehicle power to hold the transfer case in these positions.

This DTC detects an open lock control circuit or an open lock feed.

Conditions for Running the DTC
^ The ignition is ON.
^ System voltage is 9-16 volts.

Conditions for Setting the DTC
^ The system tries to turn the lock solenoid off by opening the ground circuit.
^ If the module is unable to de-energize the solenoid, the system will not attempt to de-energize the solenoid again during that ignition cycle.
^ Transfer case lock output reads back as a low voltage when a high voltage is expected.

Action Taken When the DTC Sets
^ The SERVICE 4WD indicator remains illuminated for the remainder of the current ignition cycle.
^ All shifting is disabled.

Conditions for Clearing the DTC
^ The transfer case shift control module clears the DTC if the condition for setting the DTC no longer exists.
^ A history DTC clears after 100 consecutive ignition cycles without a fault present.
^ History DTCs can be cleared using a scan tool.

Test Description

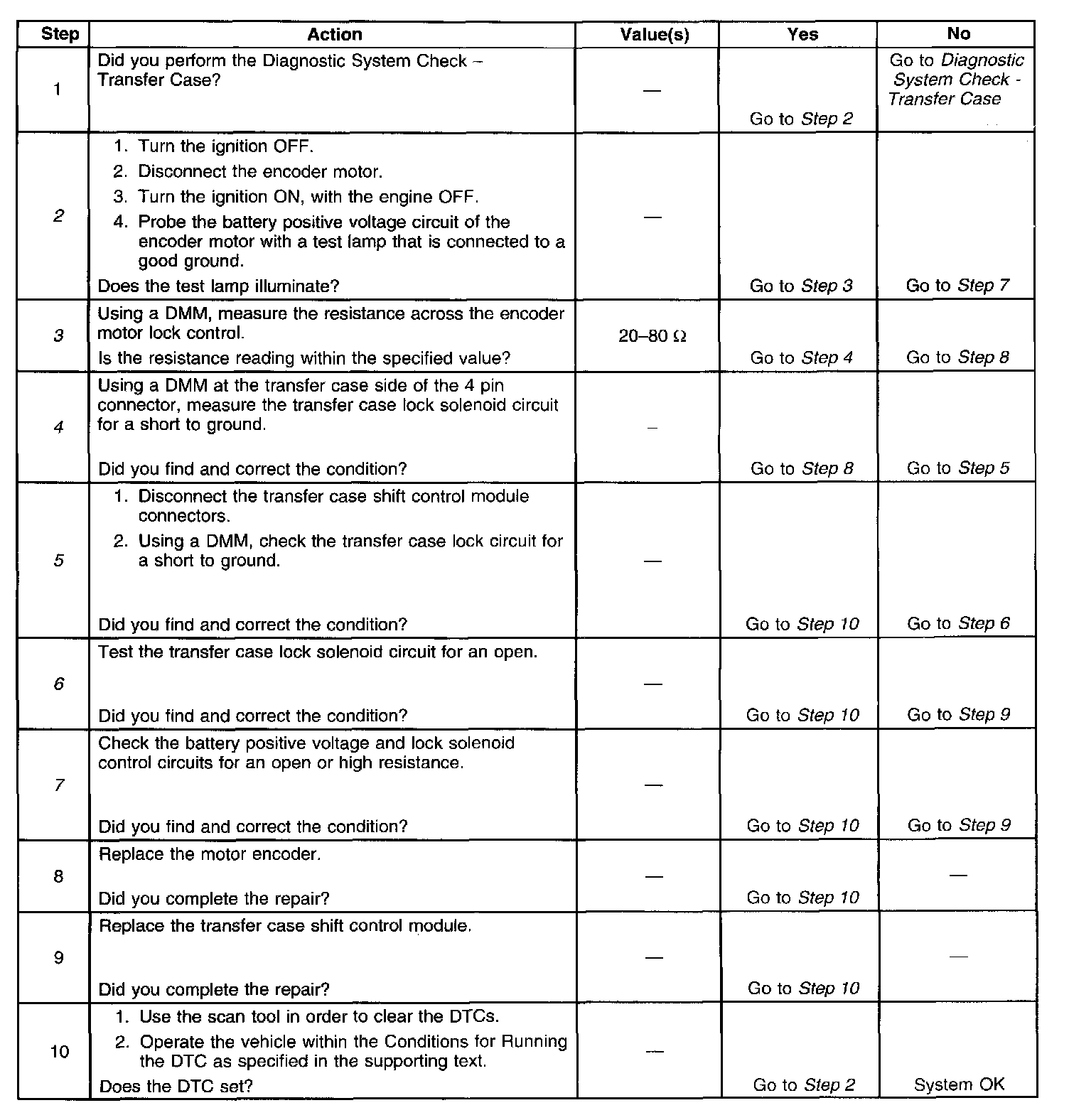

The numbers refer to the step numbers on the diagnostic table.
2. This step measures for proper voltage on the battery positive voltage circuit.
3. This step measures the resistance through the lock control solenoid.
4. This step measures for a short to ground in the transfer case lock solenoid.
5. This step tests the transfer case lock solenoid circuit for a short to ground.
6. This step tests the transfer case lock solenoid circuit for an open.
7. This step repairs the battery positive voltage circuit for an open.
