P1875

Steps 1-7:

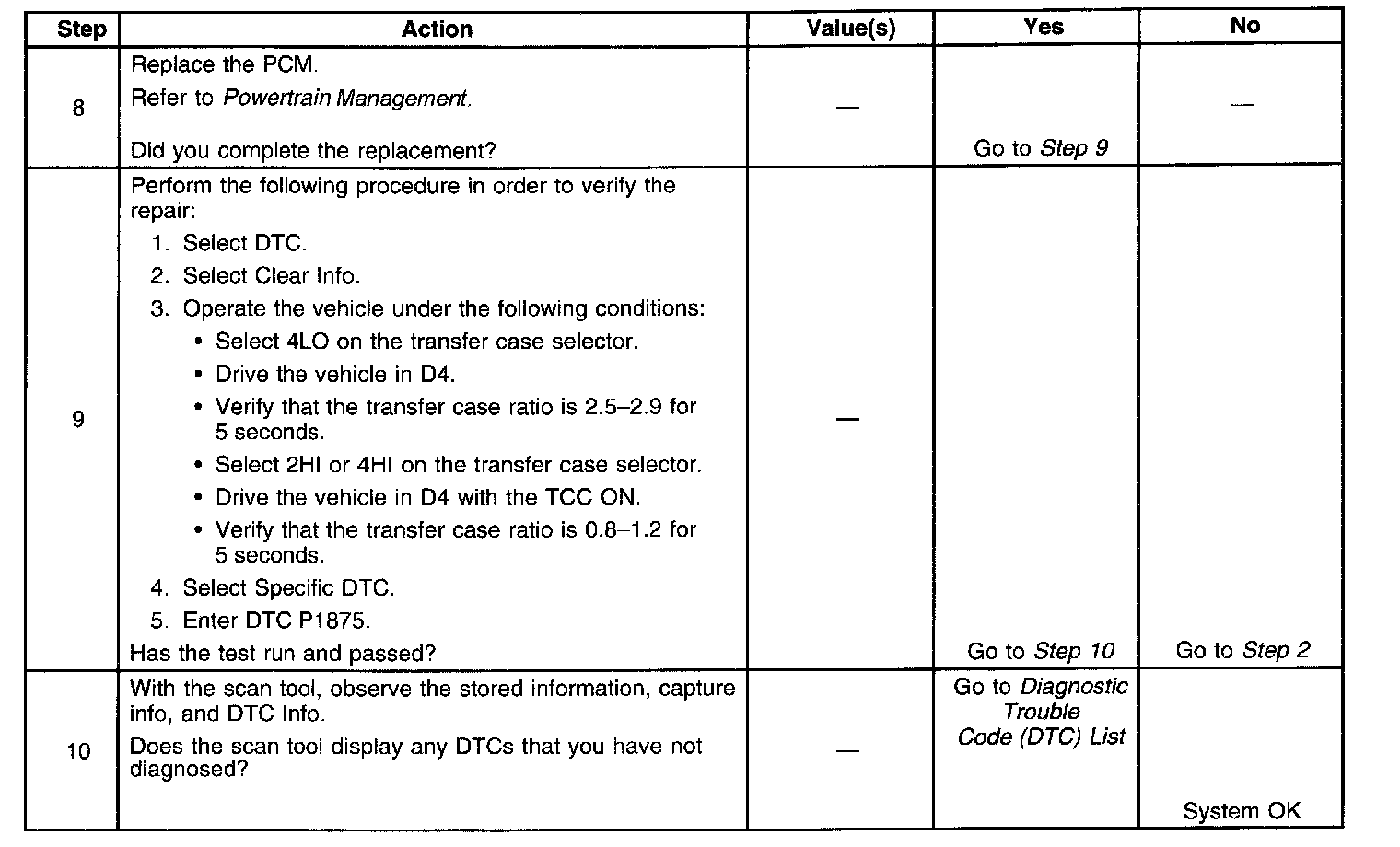

Steps 8-10:

DTC P1875

Circuit Description
The four wheel drive (4WD) low circuit consists of the powertrain control module (PCM), a transfer case control module (TCCM) and the circuit wiring. The TCCM controls the 4WD low signal on the signal circuit. When the operator selects 4WD low, the TCCM grounds the signal circuit and the 4WD low signal voltage on the circuit changes from ignition voltage to zero volts. The PCM then compensates for transfer case gear reduction in the transmission output shaft speed (OSS) signal. The PCM uses the transmission OSS signal to adjust shift points, line pressure and torque converter clutch (TCC) scheduling.

When the PCM detects a continuous open or short to ground in the 4WD low circuit, then DTC P1875 sets. DTC P1875 is a type B DTC.

Conditions for Running the DTC
^ No TP sensor DTC's P0122, or P0123.
^ No VSS assembly DTC's P0502 or P0503.
^ No TCC solenoid valve DTC P0740.
^ No TCC stuck ON DTC P0742.
^ No 1-2 SS valve DTC's P0751 or P0753.
^ No 2-3 SS valve DTC's P0756 or P0758.
^ No TFP manual valve position switch DTC P1810.
^ No TCC PWM solenoid valve DTC P1860.
^ The engine speed is greater than 450 RPM for 5 seconds.
^ The engine is not in fuel cutoff.
^ The gear range is D4.
^ The vehicle speed is greater than 11 km/h (7 mph).
^ The TP angle is 17 - 50 percent.
^ The engine torque is between 68 - 542 Nm (50 - 400 ft. lbs.).
^ The engine vacuum is between 0 - 105 kPa (0 - 15 psi).
^ The shift solenoid performance counters are zero.
^ The TFT is 20 - 130°C (68 - 266°F).

Conditions for Setting the DTC
DTC P1875 sets if one of the following conditions occurs:
Condition 1
^ The 4WD low switch is in 4WD low.
^ The transfer case is not in 4WD low.
^ The TCC slip speed is -3,000 to -50 RPM.
^ The transfer case ratio is 0.8 - 1.2, the transfer case ratio is the engine speed divided by the transfer case output speed.
^ All conditions are met for 5 seconds.
Condition 2
^ The 4WD low switch is not in 4WD low.
^ The transfer case is in 4WD low.
^ The TCC is commanded ON.
^ The TCC slip speed is 100 to 3,000 RPM.
^ The transfer case ratio is 2.5 - 2.9.
^ All conditions are met for 10 seconds.

Action Taken When the DTC Sets
^ The PCM illuminates the malfunction indicator lamp (MIL) during the second consecutive trip in which the Conditions for Setting the DTC are met.
^ The PCM commands a normal shift pattern, not a 4WD low shift pattern.
^ The PCM records the operating conditions when the Conditions for Setting the DTC are met. The PCM stores this information as Freeze Frame and Failure Records.
^ The PCM stores DTC P1875 in PCM history during the second consecutive trip in which the Conditions for Setting the DTC are met.

Conditions for Clearing the MIL/DTC
^ The PCM turns OFF the MIL during the third consecutive trip in which the diagnostic test runs and passes.
^ A scan tool can clear the MIL/DTC.
^ The PCM clears the DTC from PCM history if the vehicle completes 40 warm-up cycles without an emission-related diagnostic fault occurring.
^ The PCM cancels the DTC default actions when the fault no longer exists and/or the ignition switch is OFF long enough in order to power down the PCM.

Test Description
The numbers below refer to the step numbers on the diagnostic table.
3. This step tests for a short to ground in the 4WD low signal circuit (CKT 1694).
4. This step tests for an open in the 4WD low signal circuit (CKT 1694) or a faulty TCCM.
