Cabin Ventilation Duct: Service and Repair

Pressure Relief Valve Replacement (Utility)

Removal Procedure

1. Remove the body side stationary window (2-Door only).

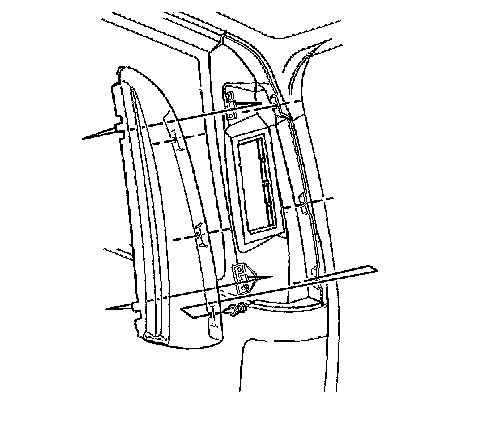

2. Remove the molding from the quarter panel rear window (4-Door only).

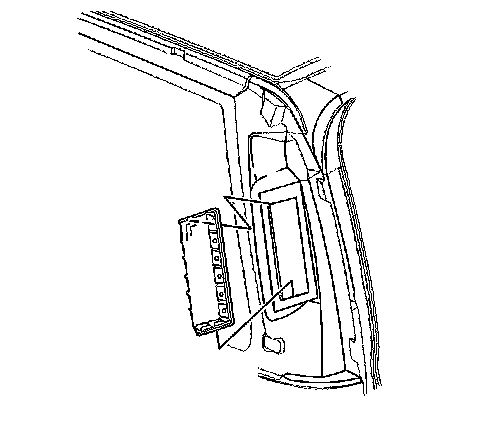

3. Remove the pressure relief ventilation valve using a flat-bladed tool in order to release the retainers.

Installation Procedure




1. Install the pressure relief ventilation valve assembly pressing into place until firmly seated.




2. Install the molding to the quarter panel rear window (4-Door only).
3. Install the molding fasteners to the quarter panel rear window (4-Door only).
4. Install the body side stationary window (2-Door only).
