Auxiliary Power Outlet
Auxiliary Power Outlet

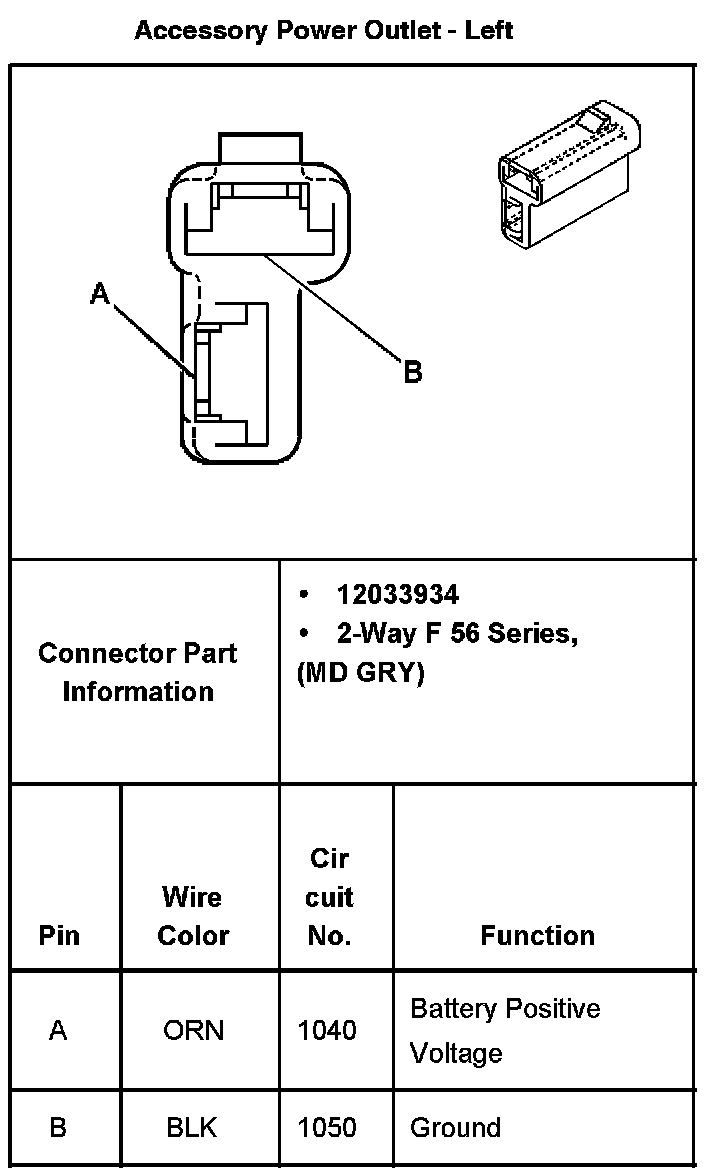

Accessory Power Outlet - Left:

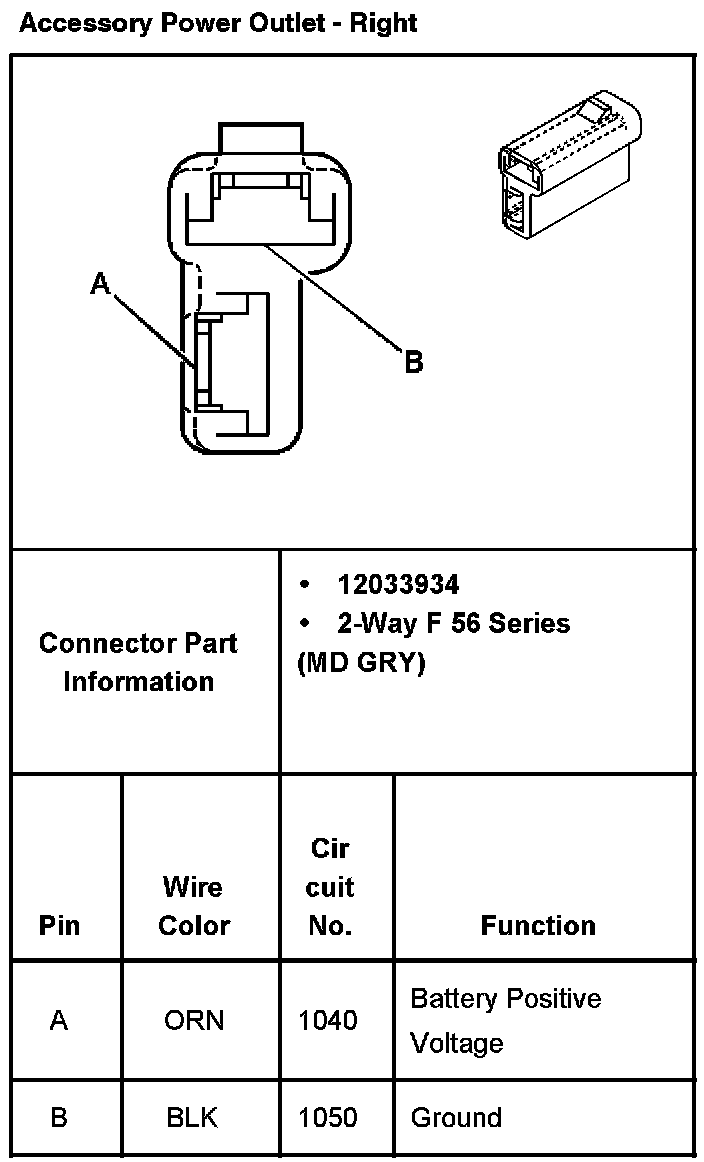

Accessory Power Outlet - Right:
