C100 - Heated Oxygen Sensor Harness to Engine Harness
C100 - Heated Oxygen Sensor Harness to Engine Harness

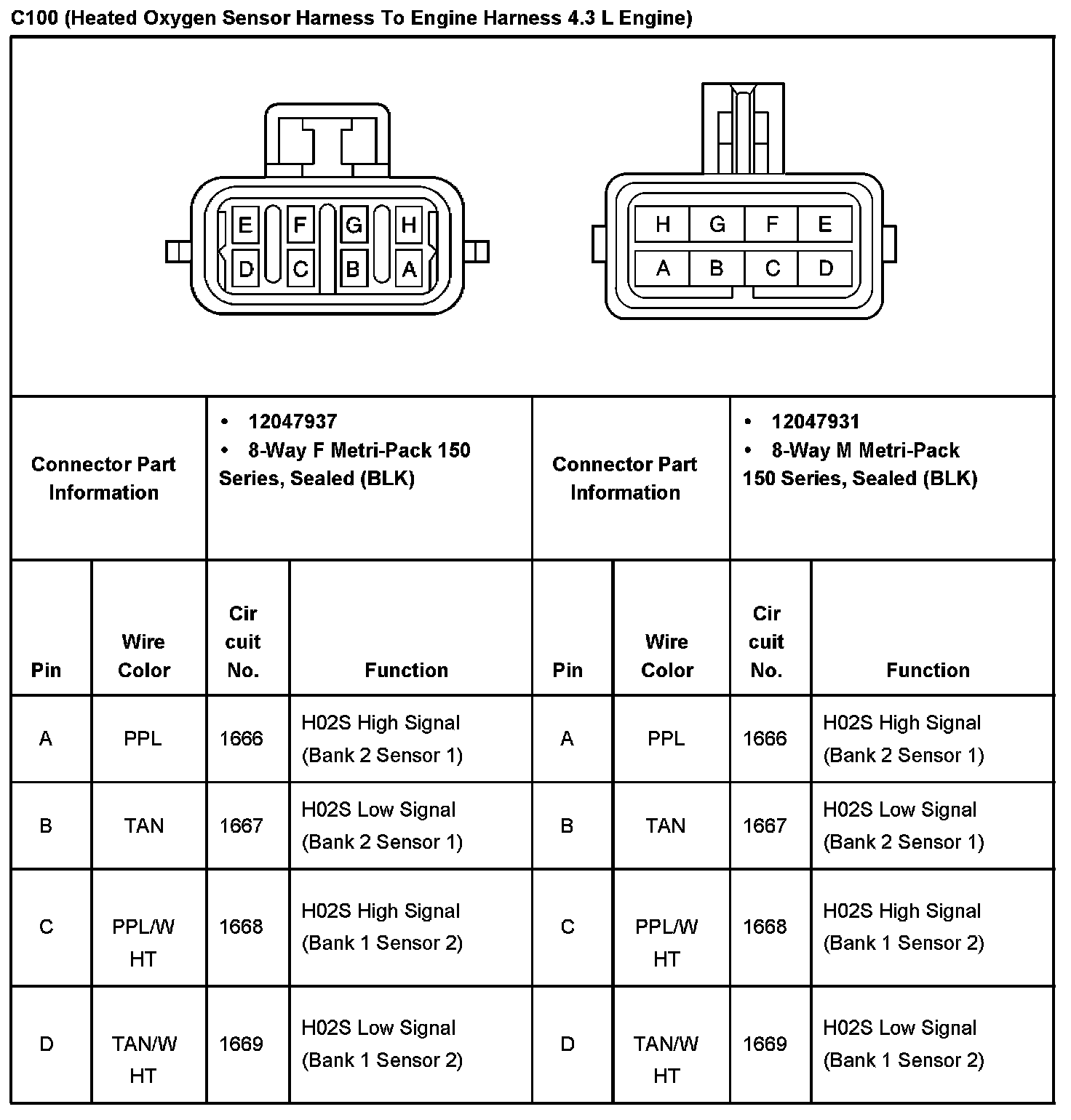

C100 (Heated Oxygen Sensor Harness To Engine Harness) Part 1:

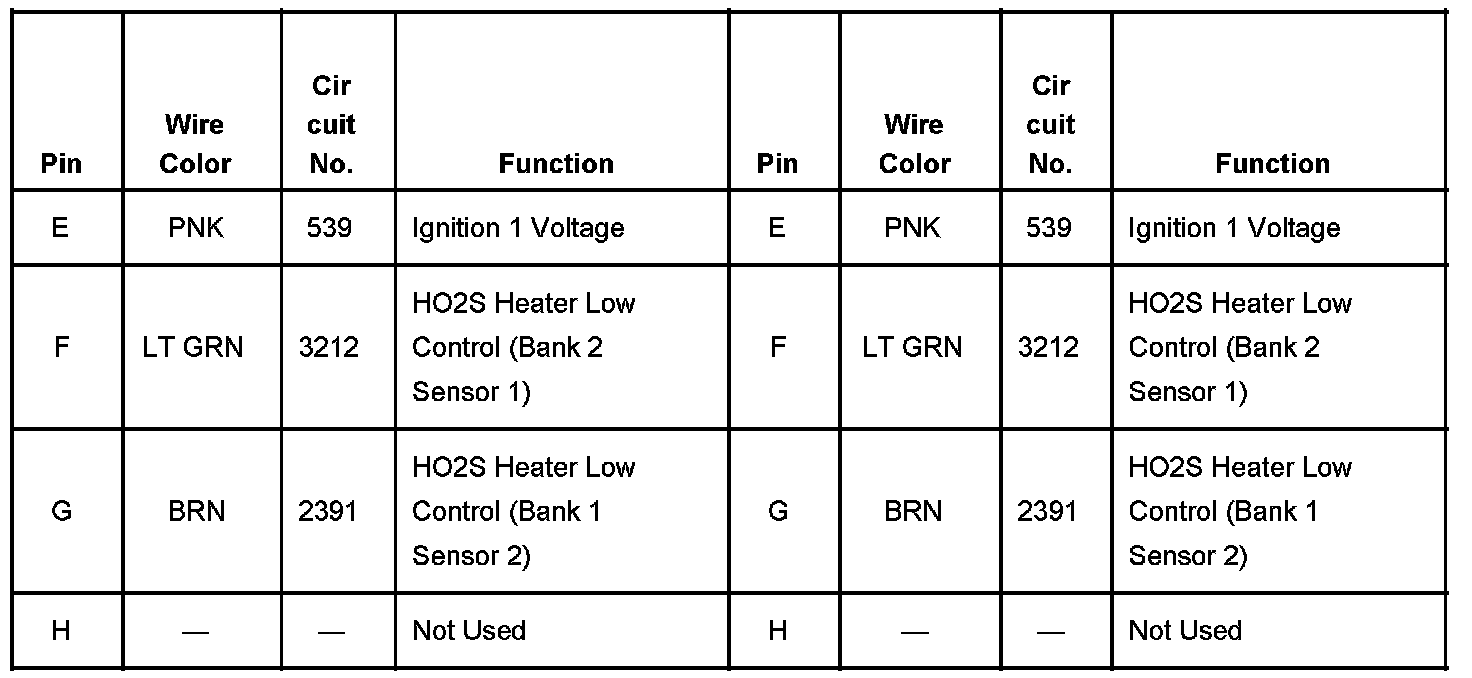

C100 (Heated Oxygen Sensor Harness To Engine Harness) Part 2:
