C104 - Chassis Harness to Engine Harness
C104 - Chassis Harness to Engine Harness

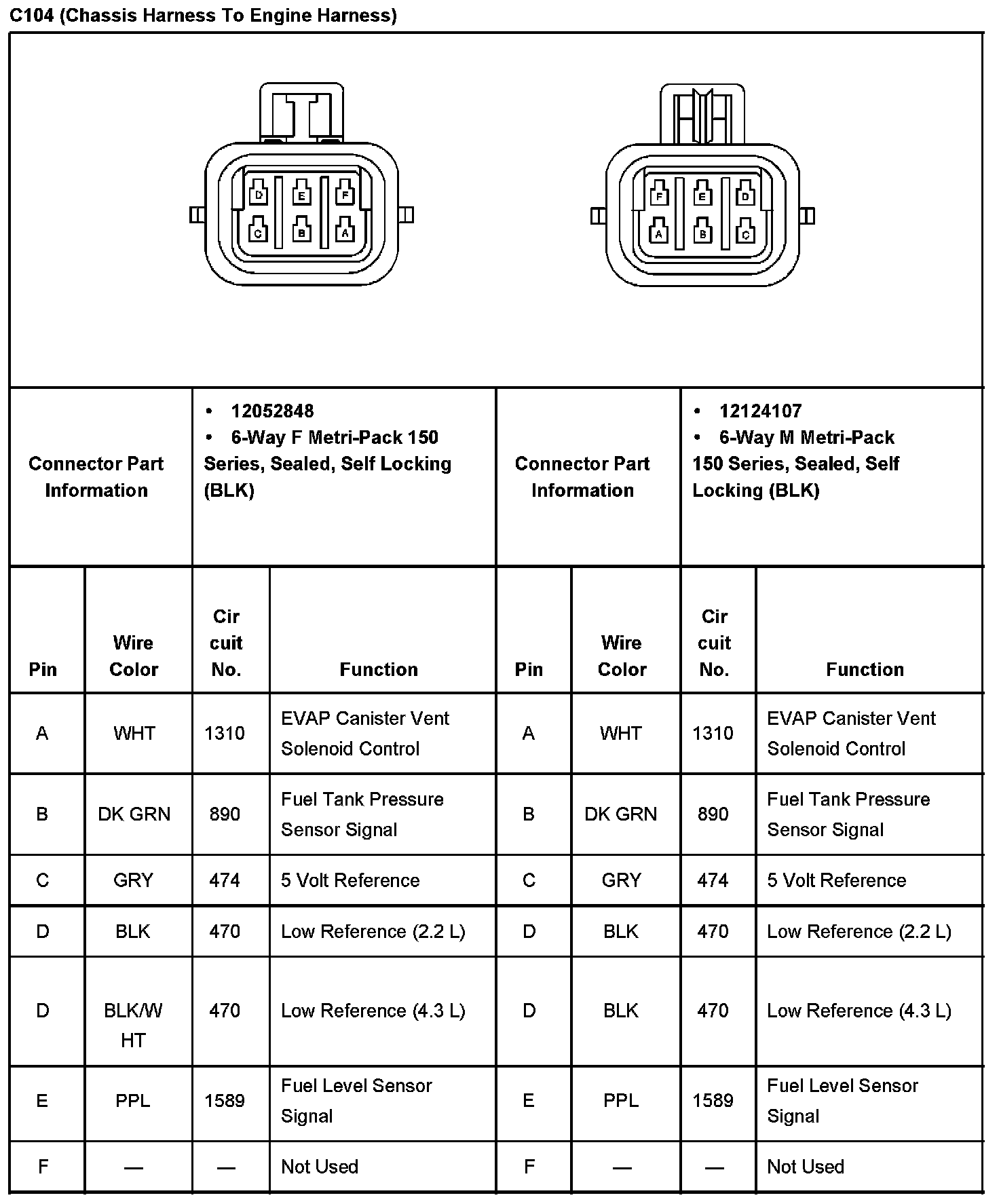

C104 (Chassis Harness To Engine Harness):
