C204 - Column Shifter Plug to Body Harness
C204 - Column Shifter Plug to Body Harness

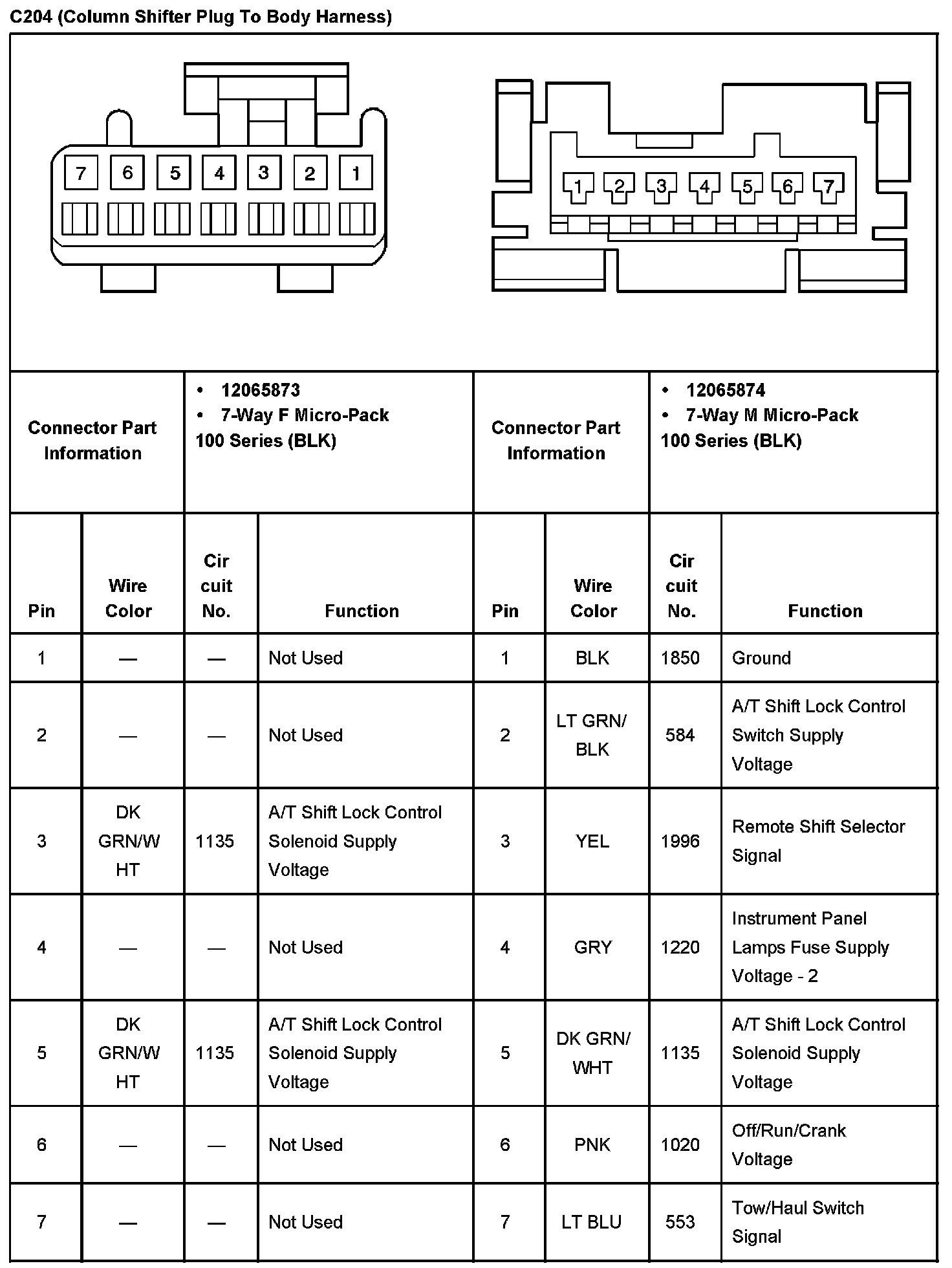

C204 (Column Shifter Plug To Body Harness):
