C209 - Dome Harness to Body Harness
C209 - Dome Harness to Body Harness

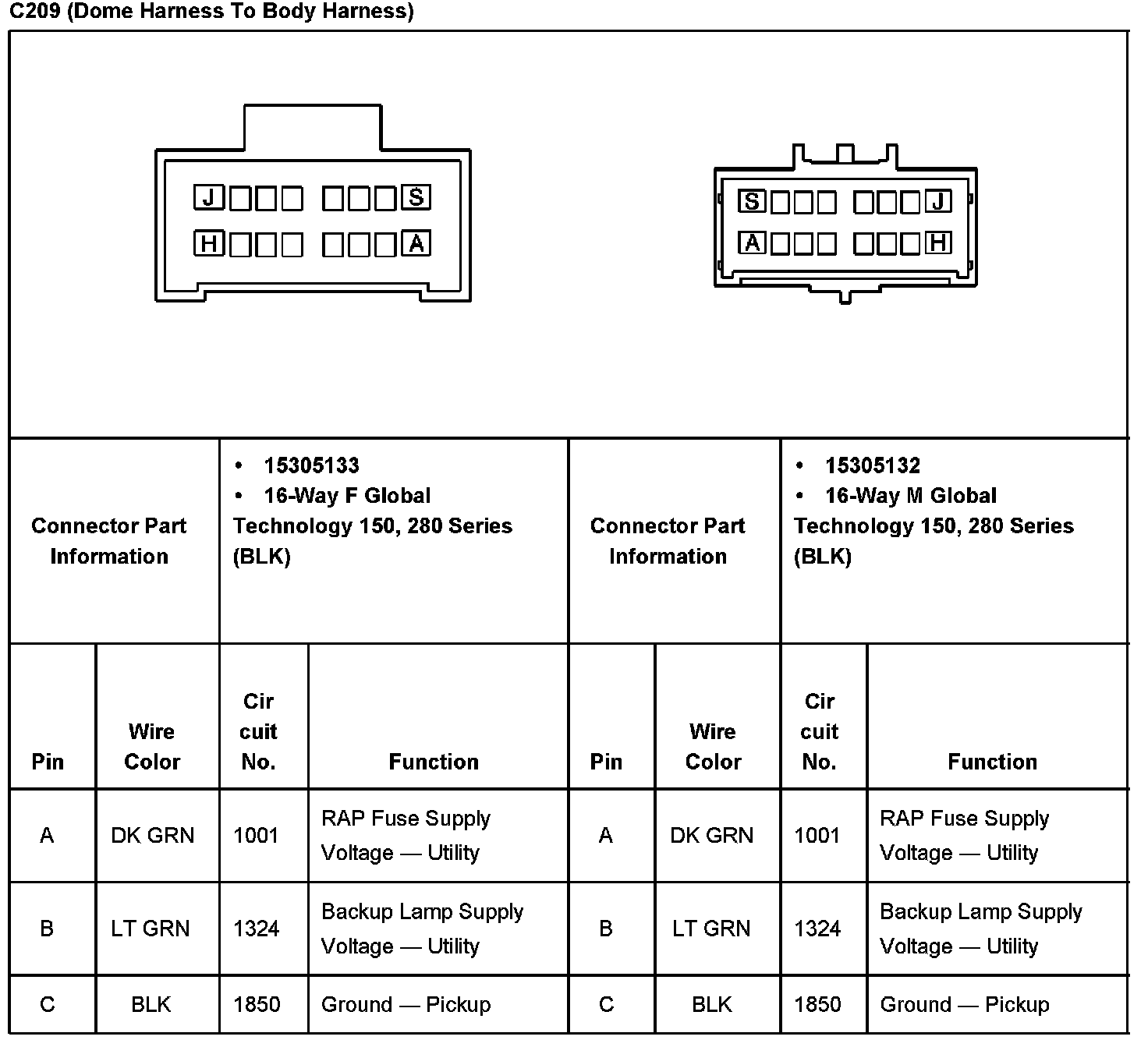

C209 (Dome Harness To Body Harness) Part 1:

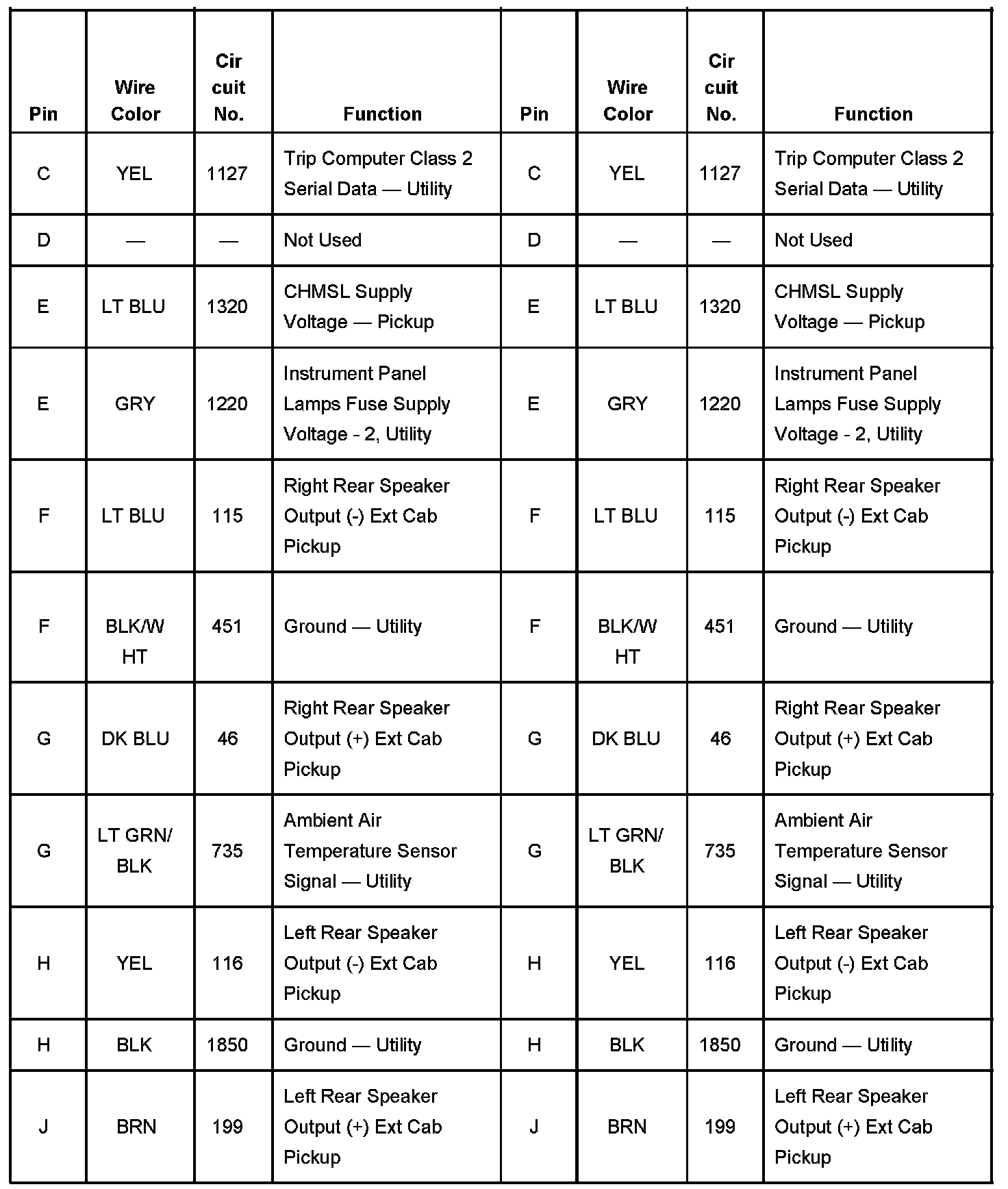

C209 (Dome Harness To Body Harness) Part 2:

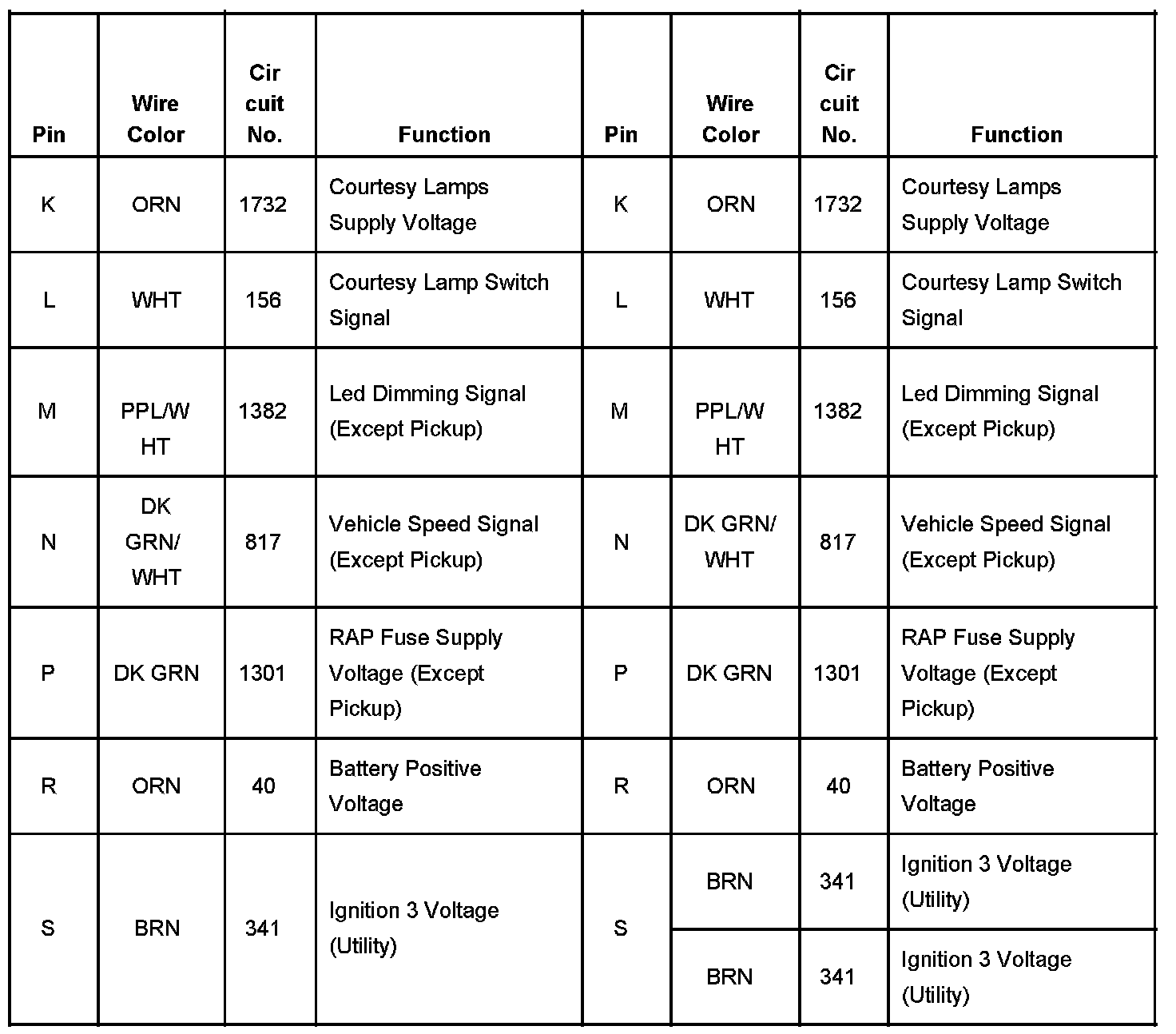

C209 (Dome Harness To Body Harness) Part 3:
