C223 - IP Harness to Auxiliary Power Tray (Extended Cab)
C223 - IP Harness to Auxiliary Power Tray (Extended Cab)

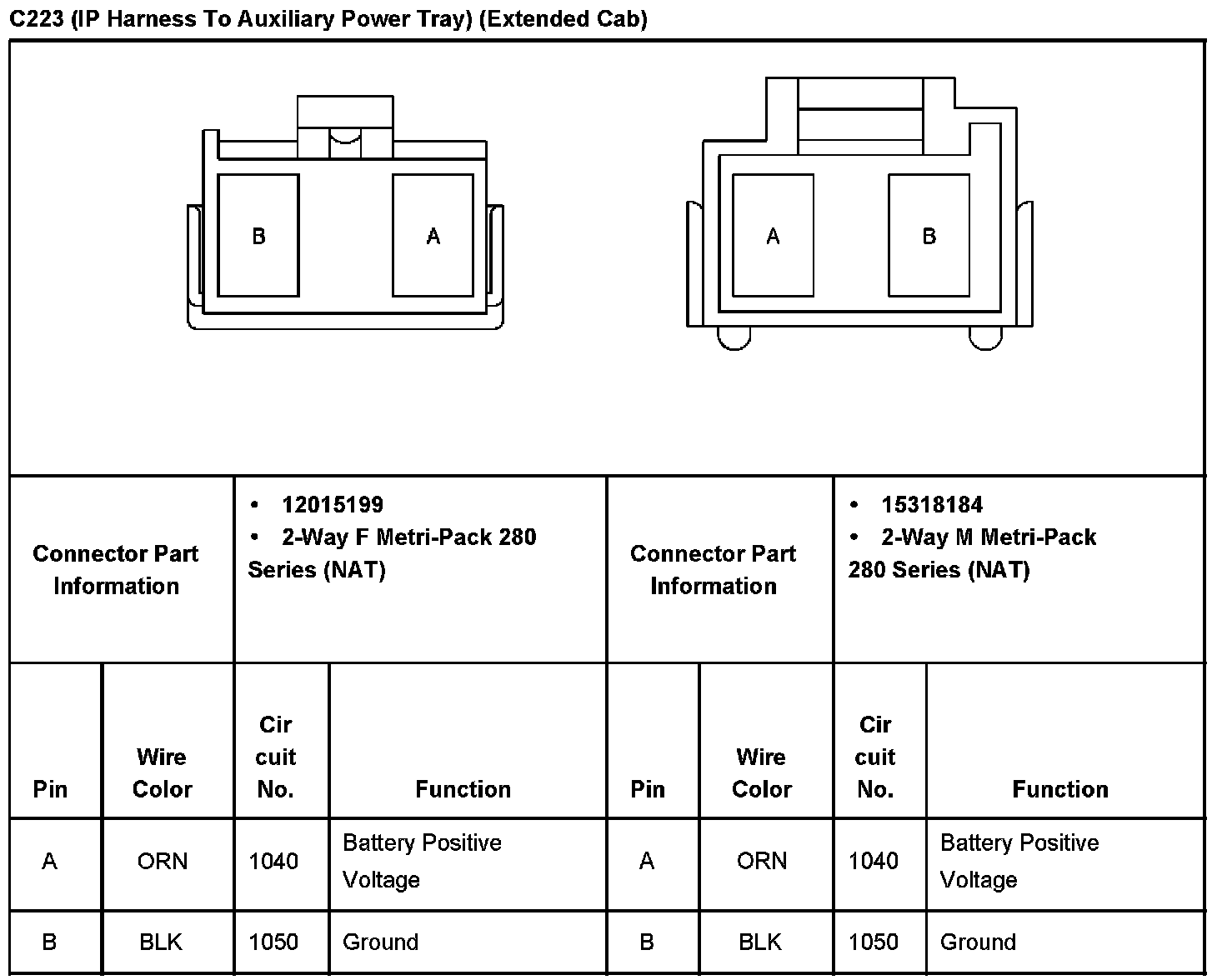

C223 (IP Harness To Auxiliary Power Tray) (Extended Cab):
