C300 - Dome Lamp Harness to Sunroof Harness
C300 - Dome Lamp Harness to Sunroof Harness

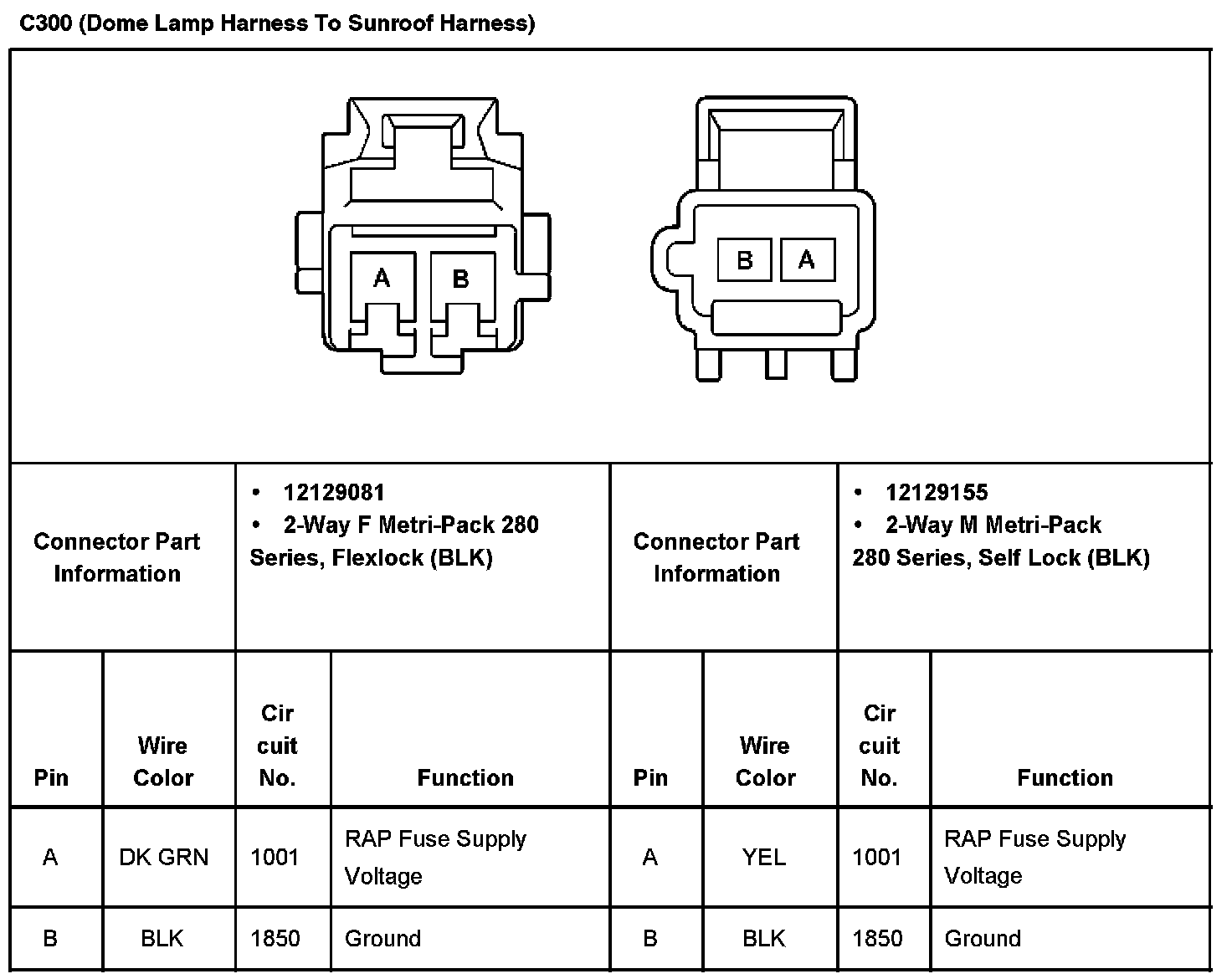

C300 (Dome Lamp Harness To Sunroof Harness):
