C413 - Engate Harness to Body Harness
C413 - Engate Harness to Body Harness

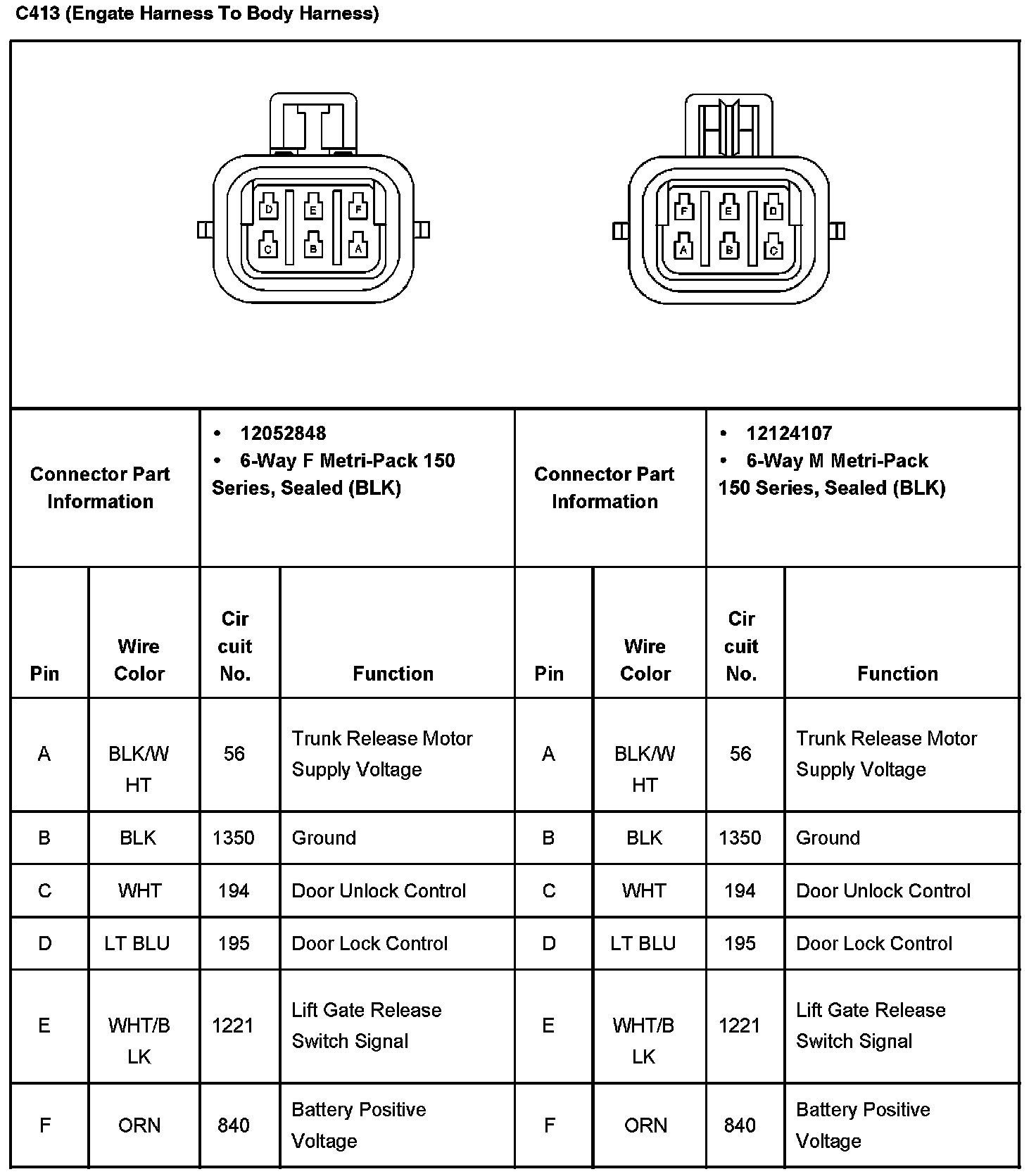

C413 (Engate Harness To Body Harness):
