Driver/Vehicle Information Display

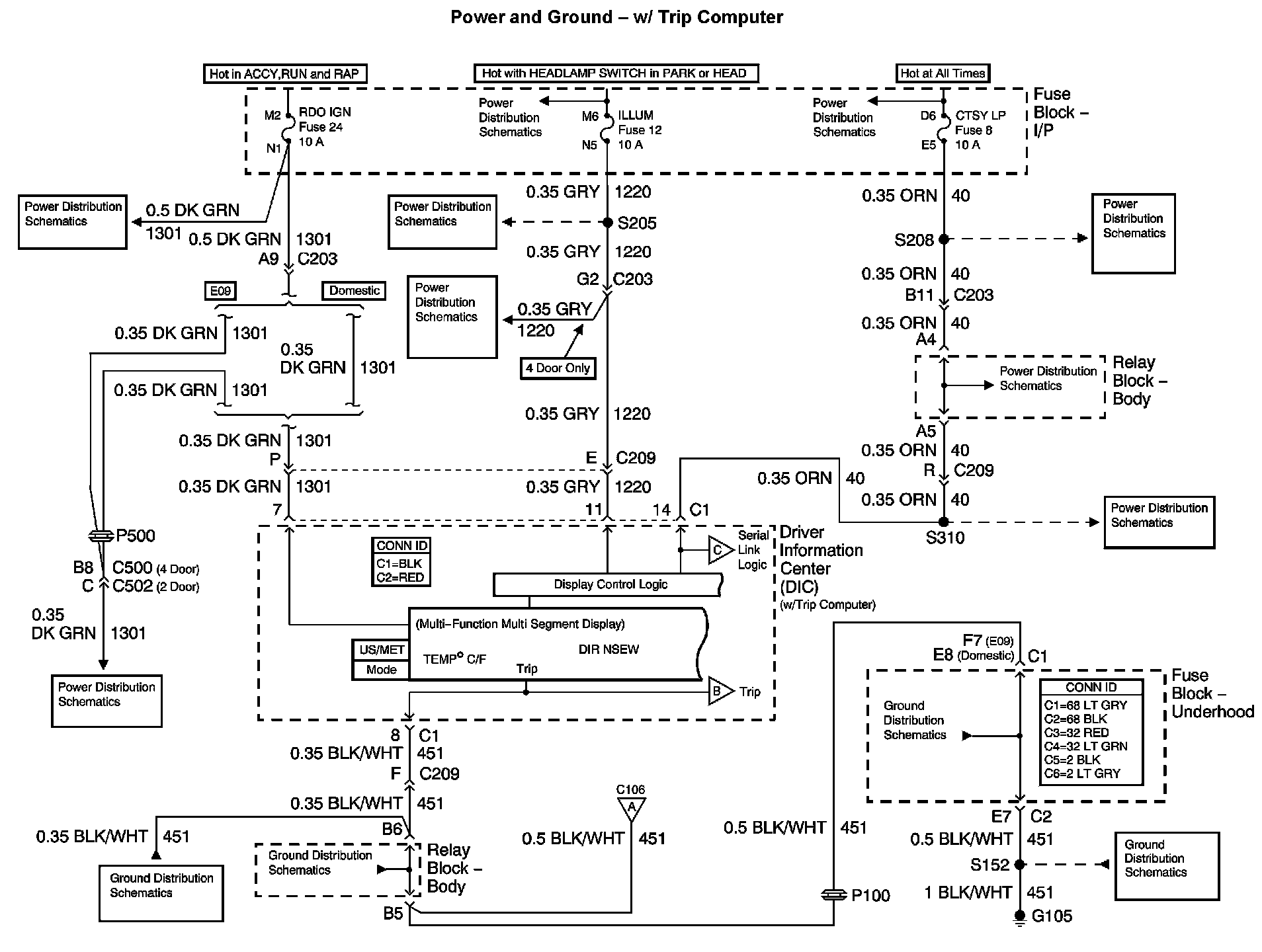

Driver Information System Diagram 1:

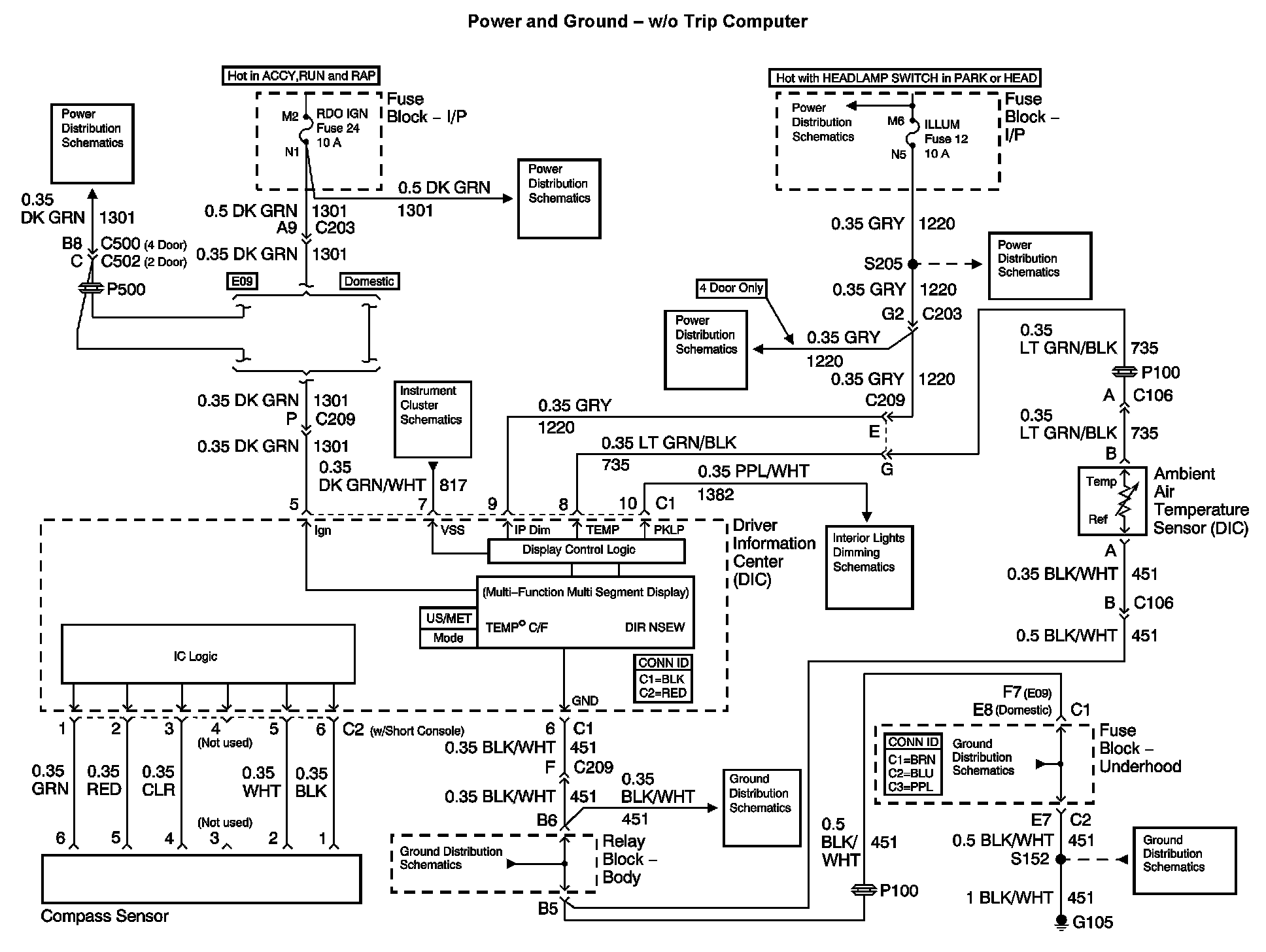

Driver Information System Diagram 2:
Driver Information System Diagram 3:
