Home
>>
Chevy Truck
>>
2003
>>
S10/T10 P/U 4WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Manual Transmission/Transaxle
>>
NV 3500
NV 3500

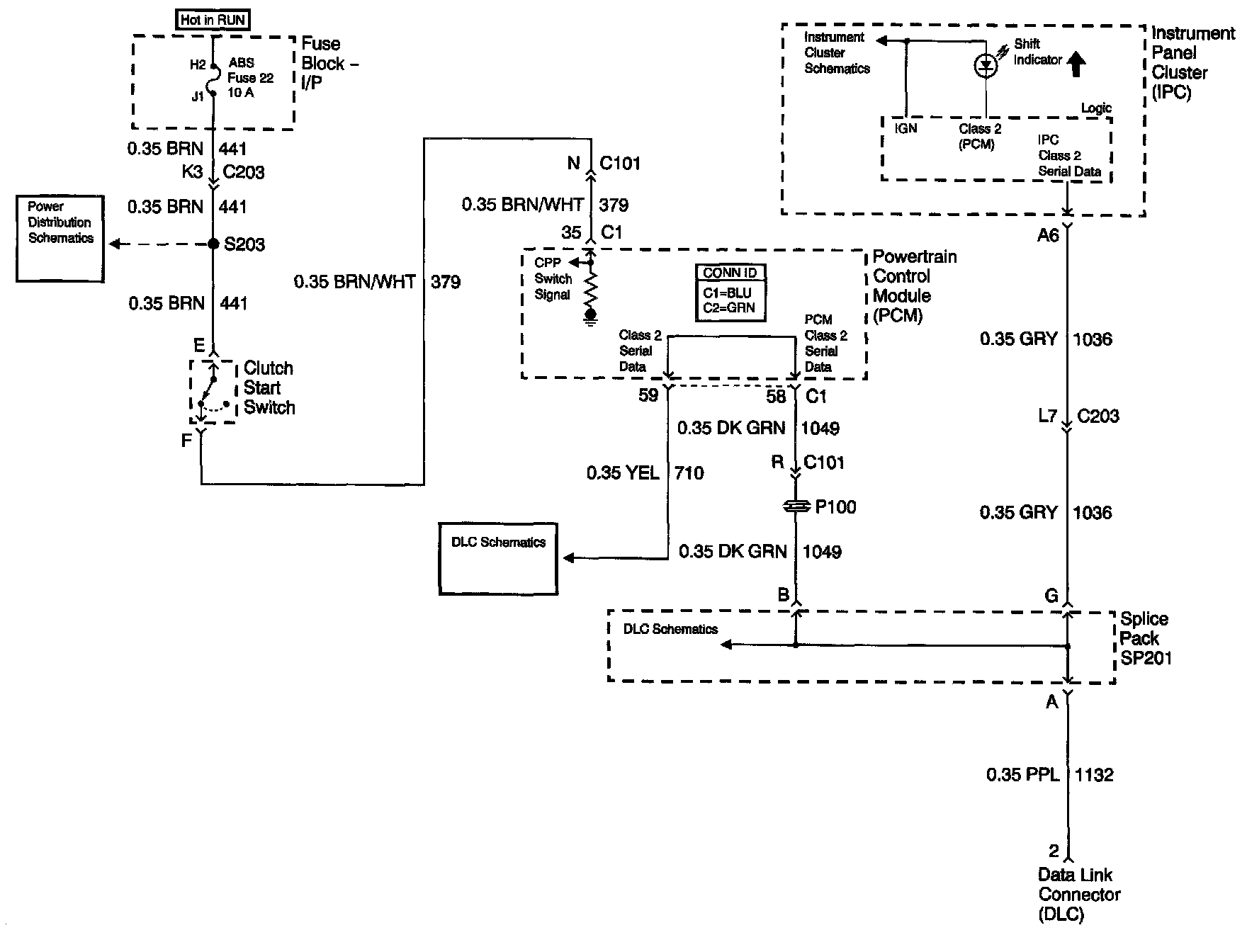

Shift Indicator:
Vehicle Speed Sensor (VSS):
