Radio, Stereo, and Compact Disc
>>
Steering Wheel Controls
Steering Wheel Controls

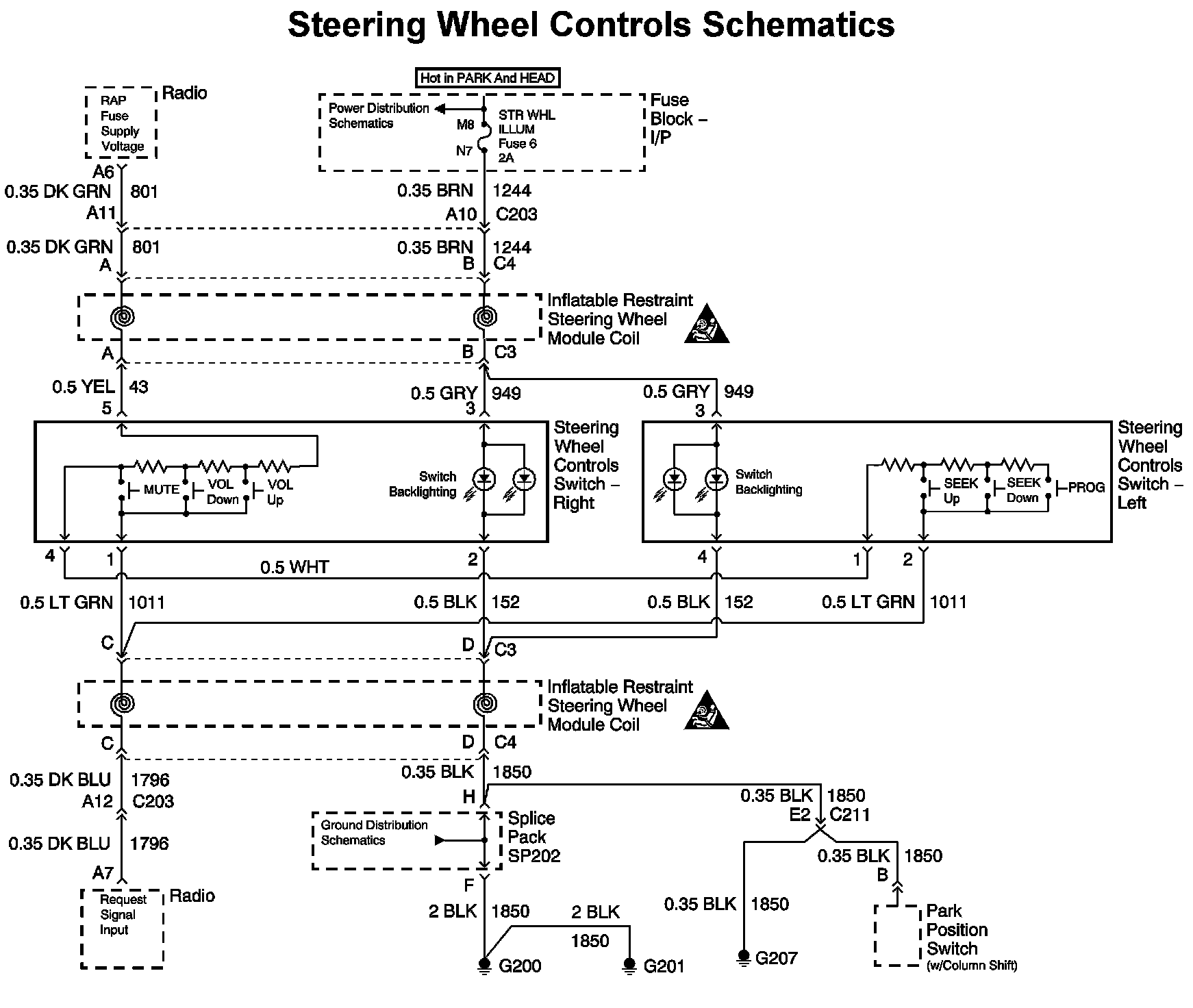

Steering Wheel Controls Diagram:
