Too Hot In Vehicle

TOO HOT IN VEHICLE

TEST DESCRIPTION

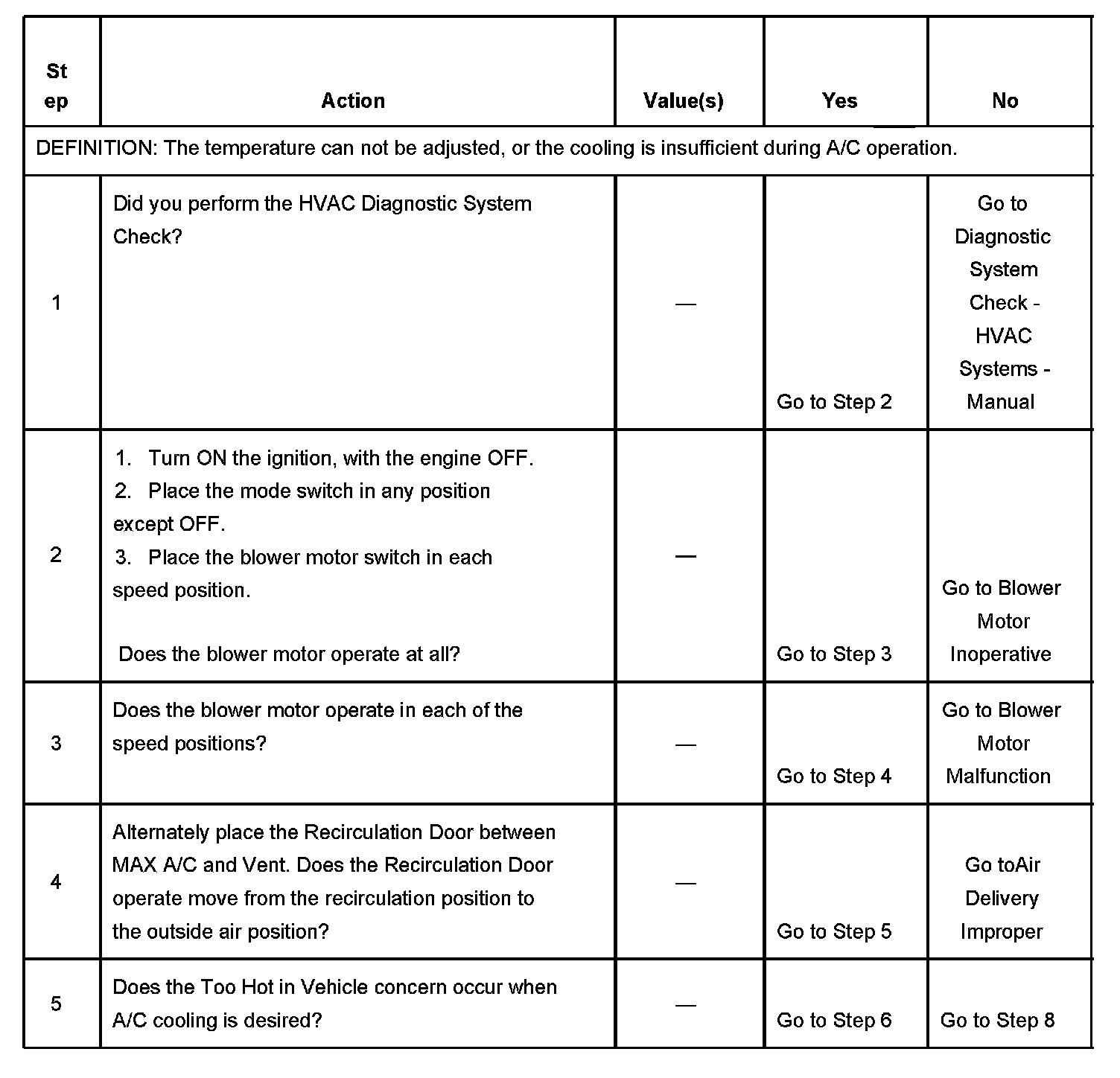

Steps 1 - 5:

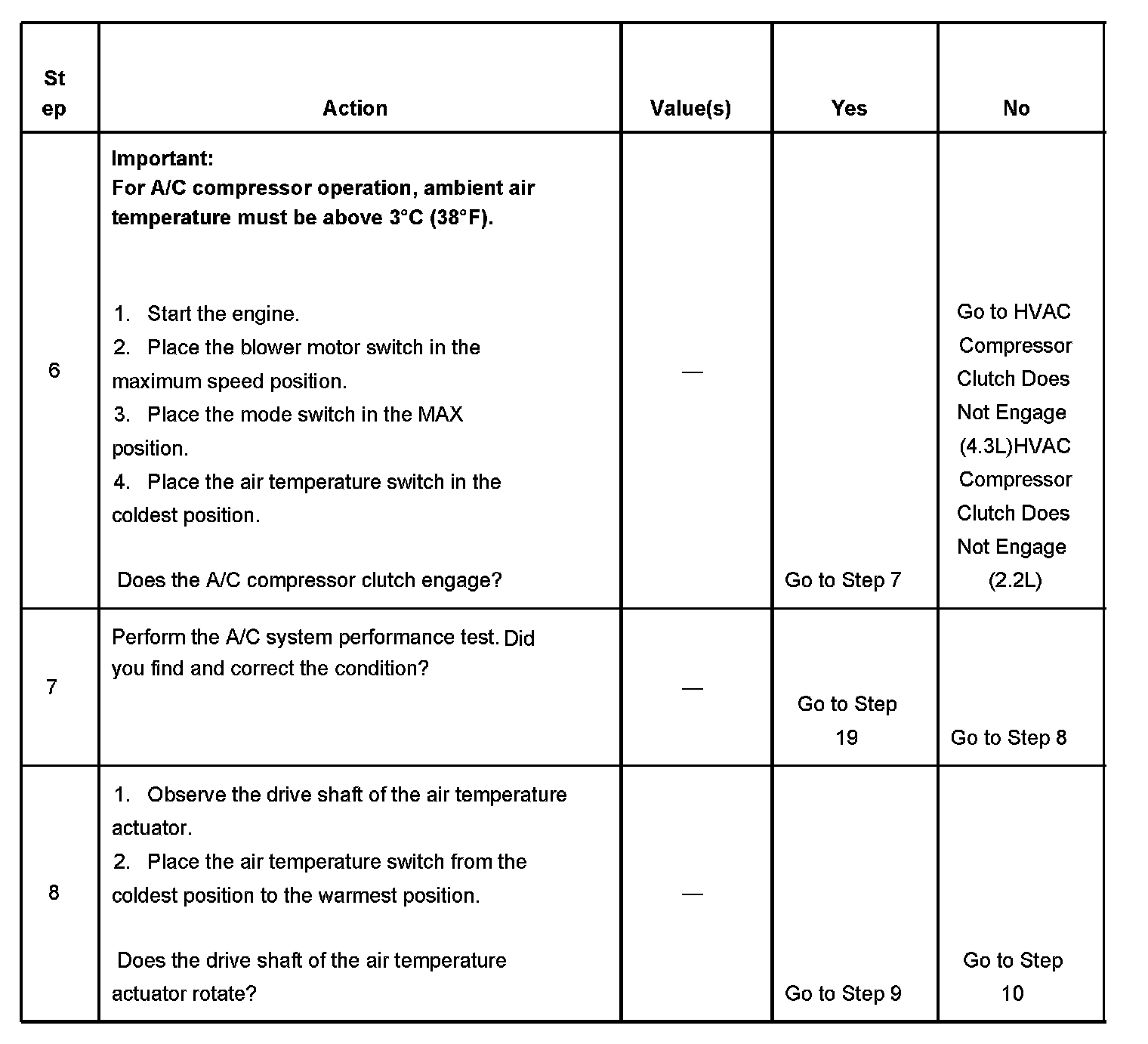

Steps 6 - 8:

Steps 9 - 12:

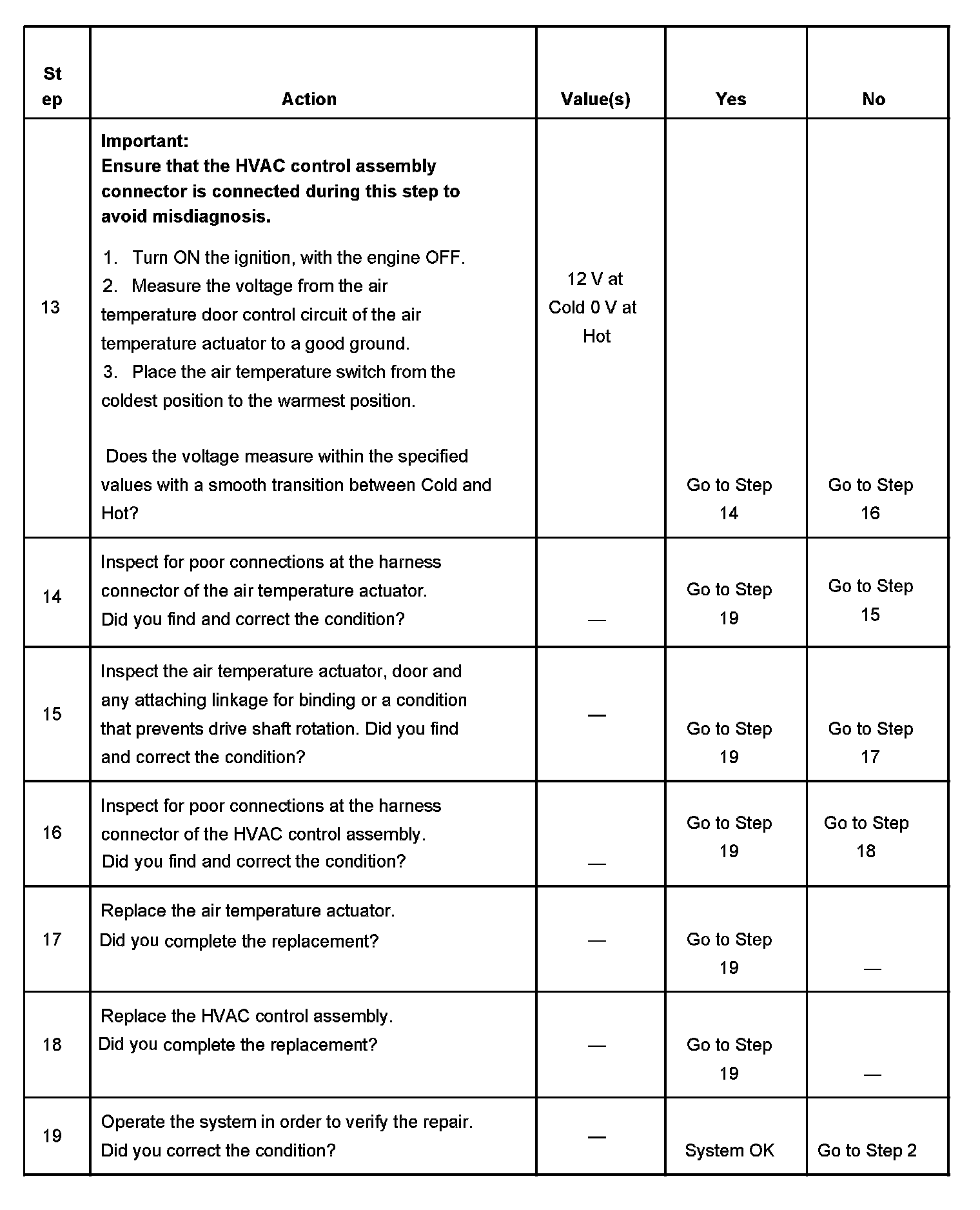

Steps 13 - 19:

The number(s) below refer to the step number(s) on the diagnostic table.
7. The specified values are from the A/C System Performance Test.
13. The voltage will vary between 0-12 volts during normal operation. The HVAC control module connector must be connected during this step.
