Driver Information Center (DIC) - Display Always Reads OC

DRIVER INFORMATION CENTER (DIC) TEMPERATURE DISPLAY ALWAYS READS OC

DIAGNOSTIC AIDS
- The DIC displays OC when there is an open condition within the system.
- Refer to Ambient Air Temperature Sensor Resistance in order to verify the correct ambient temperature sensor readings.

TEST

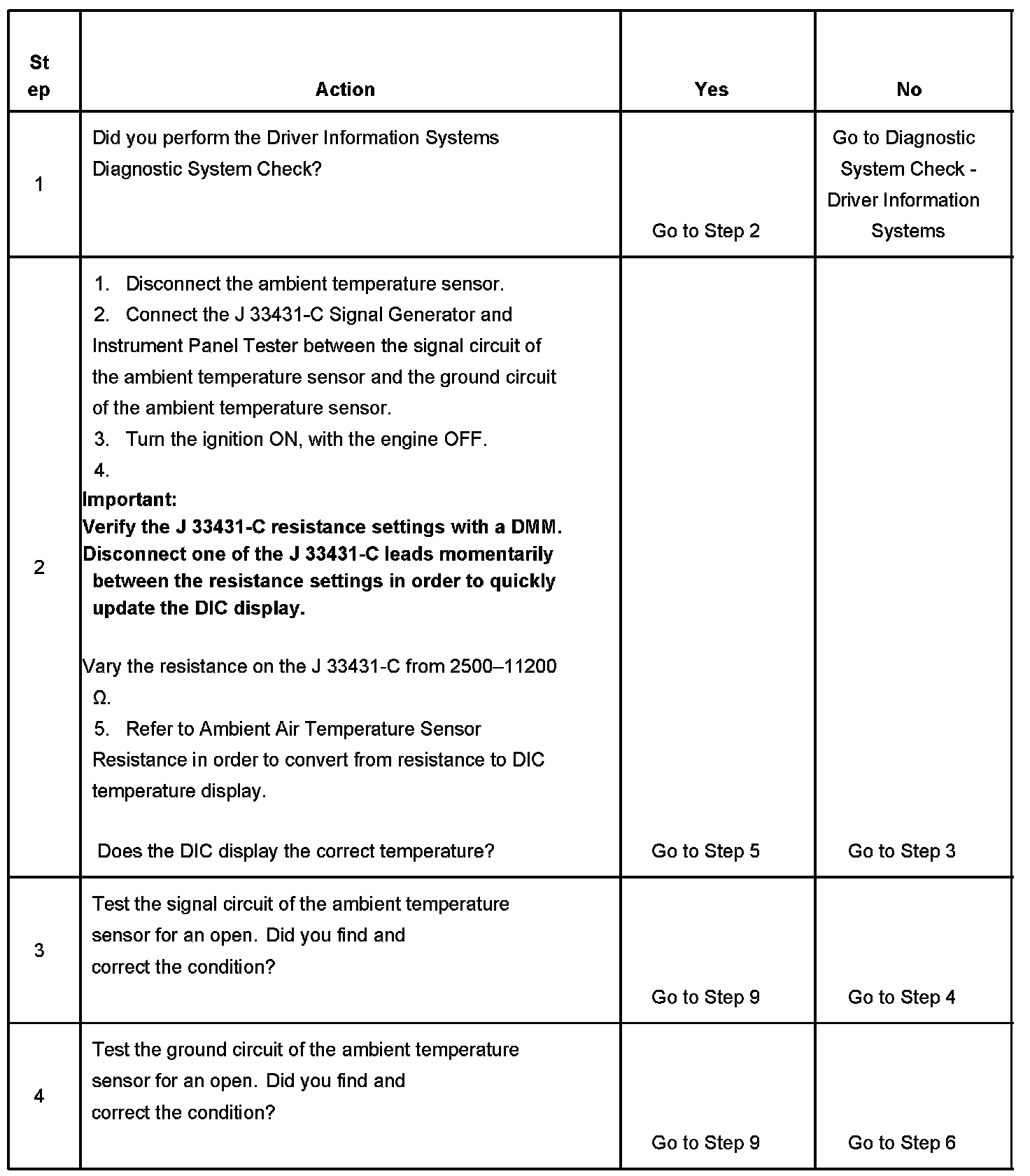

Steps 1-4:




Steps 5-9:
