Antenna: Service and Repair
FIXED ANTENNA REPLACEMENTREMOVAL PROCEDURE
1. Remove the antenna mast.

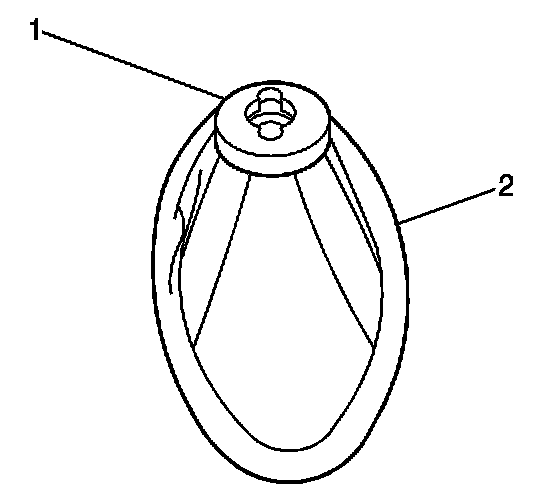

2. Remove the retainer nut (1).
3. Remove the bezel (2).
4. Remove the right hinge pillar trim panel.
5. Disconnect the antenna cable from the extension cable.
6. Remove the right fender liner.

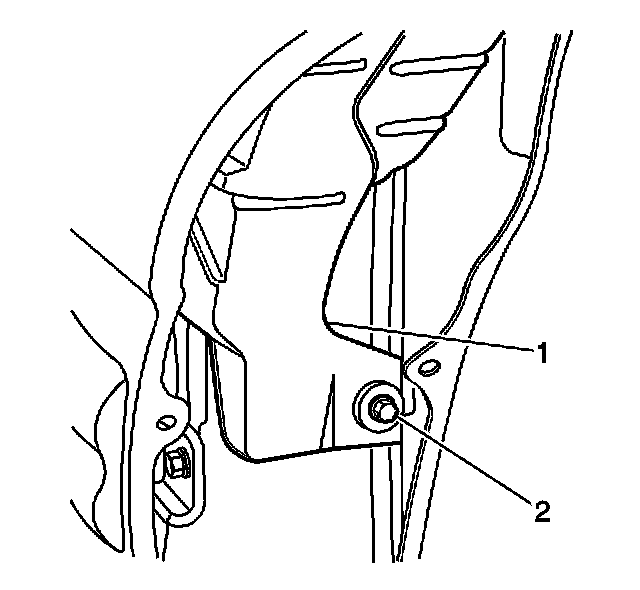

7. Remove the bolt (1) from the resonator (2), if equipped with 2.0L engine.
8. Remove resonator (2) from vehicle, if equipped with 2.0L engine.

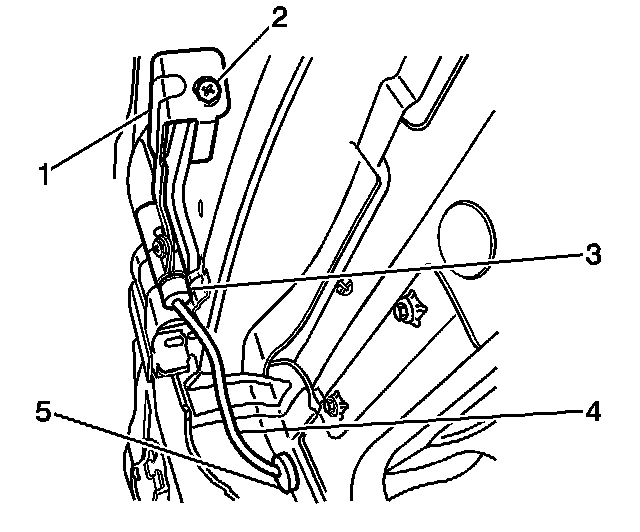

9. Remove grommet (5) from inner structure and pull cable (4) out.
10. Remove the bolt (2) that retains the fixed antenna bracket (1).
11. Remove fixed antenna (3) with bracket (1) from vehicle.

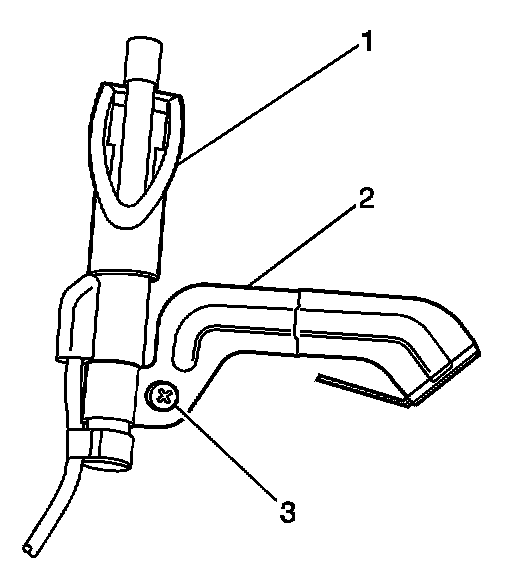

12. Loosen screw (3) and remove fixed antenna (1) from bracket (2), if necessary.
INSTALLATION PROCEDURE
1. Install the fixed antenna (1) to the bracket (2) and tighten screw (3), if removed.
2. Install fixed antenna (3) with bracket (1) to vehicle.
3. Install the bolt (2) that retains the fixed antenna bracket (1).
4. Position cable (4) though inner structure hole and install grommet (5).

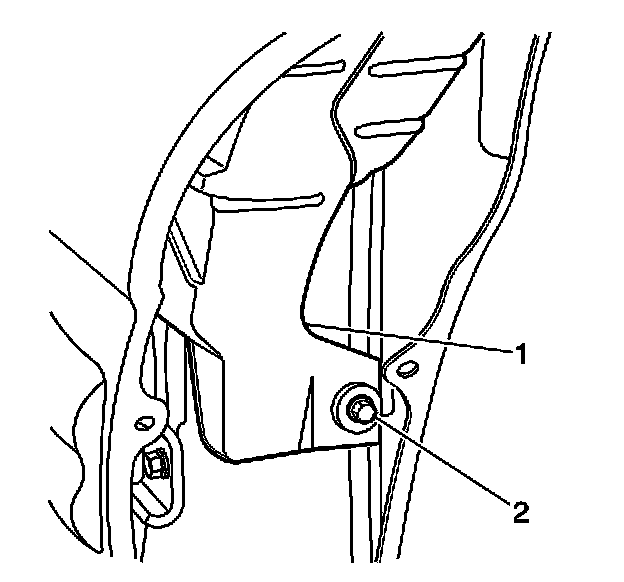

5. Install resonator (2) to inner wheel house, if removed.
6. Install bolt (1) to resonator (2).
7. Install the right fender liner.
8. Connect the antenna cable to the extension cable.
9. Install the right hinge pillar trim panel.

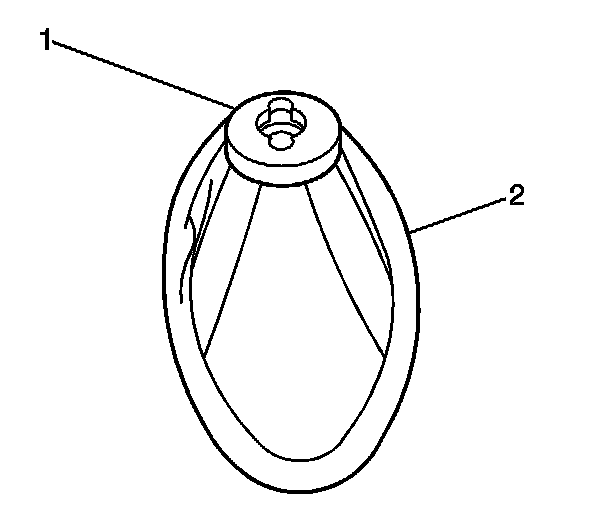

10. Install the bezel (2) to the fixed antenna.
11. Install the retainer nut (1).
12. Install the antenna mast.
NOTE: Use tape on the tool surface so that you do not damage the paint on the antenna mast.
