Bumper Replacement - Rear Door (2 Door)

BUMPER REPLACEMENT - REAR DOOR (2 DOOR)

REMOVAL PROCEDURE




1. Open the endgate panel.

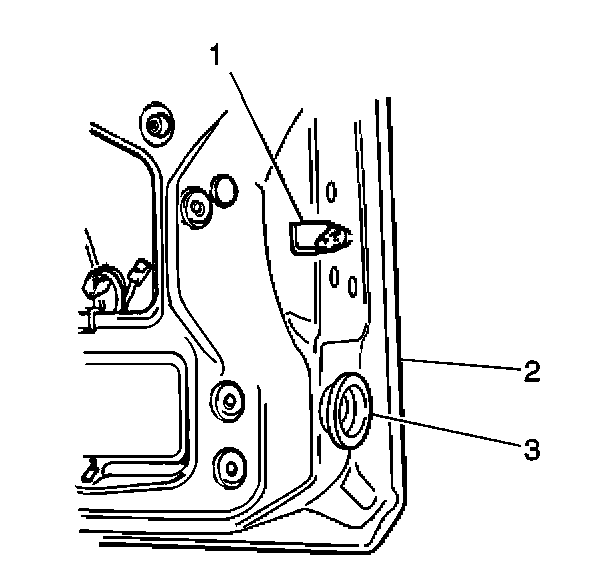

2. Remove the bolt which secures the endgate bumper (3).
3. Remove the endgate bumper (3) from the endgate panel (2).

INSTALLATION PROCEDURE




1. Install the endgate bumper (3) to the endgate panel (2). Secure the bumper with the 1 mounting bolt.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the endgate bumper mounting bolt to 20 N.m (15 lb ft).

2. Close the endgate panel.
