BUMPER REPLACEMENT - REAR DOOR (4 DOOR)

REMOVAL PROCEDURE




1. Open the rear door.

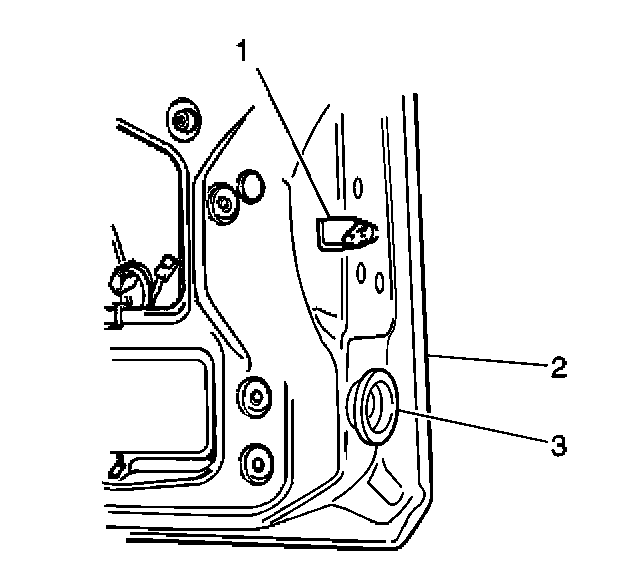

2. Remove the bolt which secures the rear door bumper (3).
3. Remove the rear door bumper (3) from the rear door (2).

INSTALLATION PROCEDURE

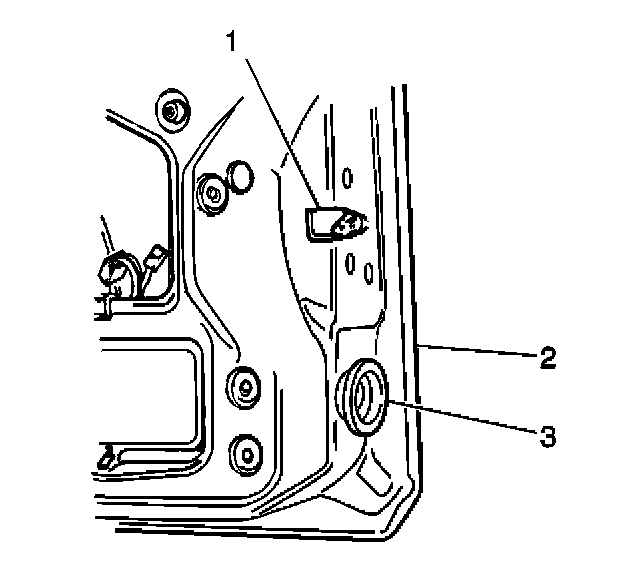

1. Install the rear door bumper (3) to the rear door (2). Secure the bumper with the 1 mounting bolt.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the rear door bumper mounting bolt to 20 N.m (15 lb ft).

2. Close the rear door.
